China Design and Manufacture air Separation Unit with Nitrogen Oxygen Argon on Site Supply System High Purity & Reliability
Product descriptions from the supplierProduct DescriptionAirSeparation plant is a cryogenic oxygen and nitrogen producing machine which can produce high purity Oxygen or high purity nitrogen in different working condition. One plant with two functions, while providing customers with high-quality gas......
Product descriptions from the supplier
Product Description

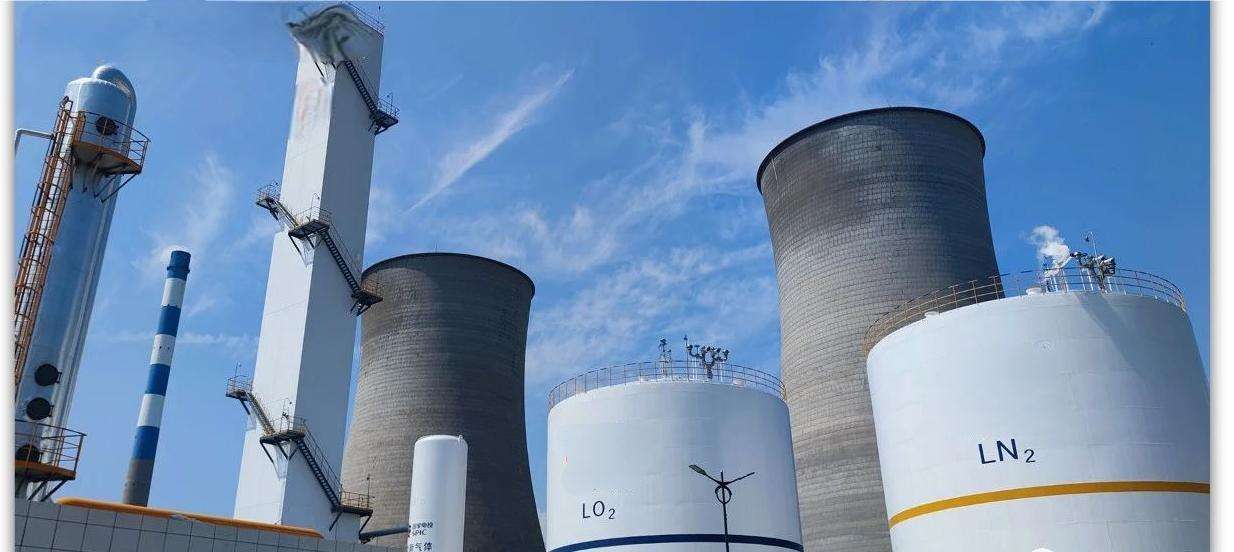

AirSeparation plant is a cryogenic oxygen and nitrogen producing machine which can produce high purity Oxygen or high purity nitrogen in different working condition. One plant with two functions, while providing customers with high-quality gas products, it also saves costs for customers. Customers can adjust the production mode according to the actual gas market conditions to meet market demand. When necessary, the Argon can be produced as well the system.
Product details:
Cryogenic oxygen, nitrogen and argon air separation unit is a device for separating oxygen, nitrogen, argon, or other gases from the air. The principle is try to cool the air into liquid at first, then use oxygen, nitrogen, argon components of the boiling point（-183℃, -196℃, -186℃） difference，thus having different sequence of evaporation to separate into Oxygen, Nitrogen or Argon and Rare gas.
Customers require large amounts of Oxygen, Nitrogen or Argon and Rare gas, we can design and operation cryogenic air separation units (ASU) to deliver the most cost-effective, efficient and dependable cryogenic solution to provide the Oxygen, Nitrogen or Argon and Rare gas or deliver the Cryogenic air separation unit to customer.

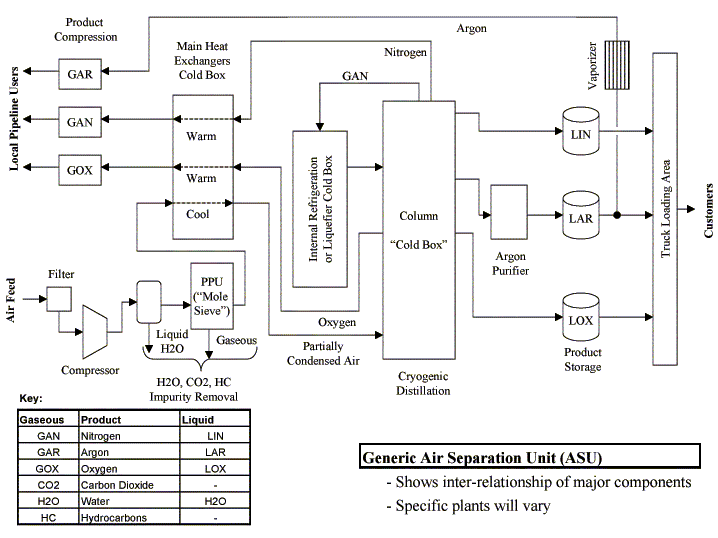

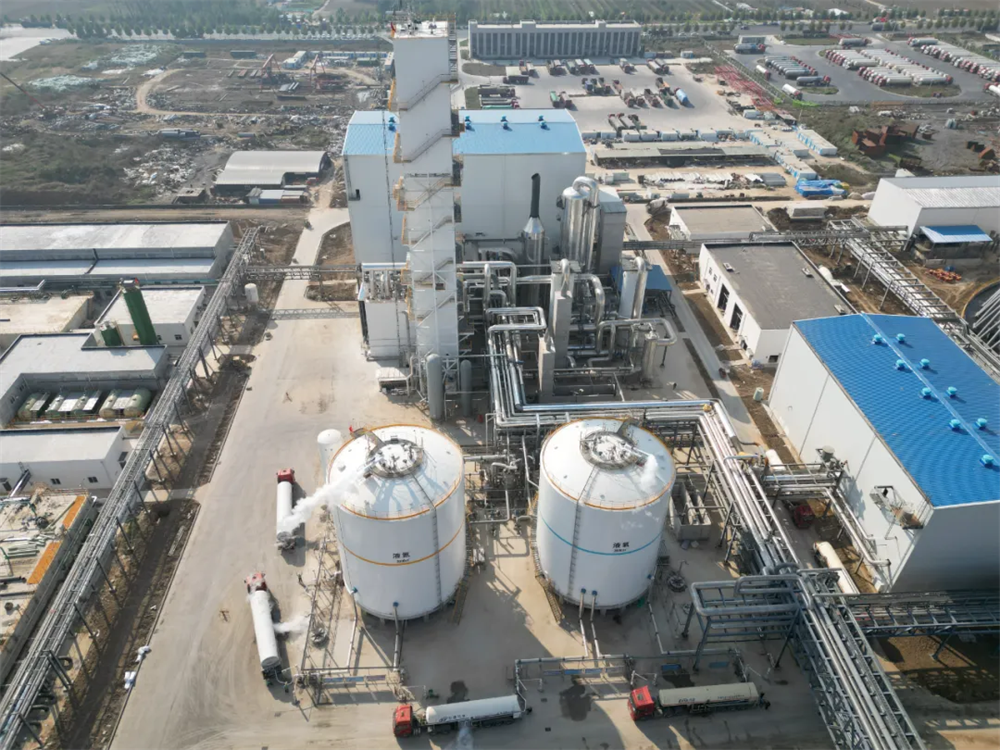

The main system of Air separation plant:

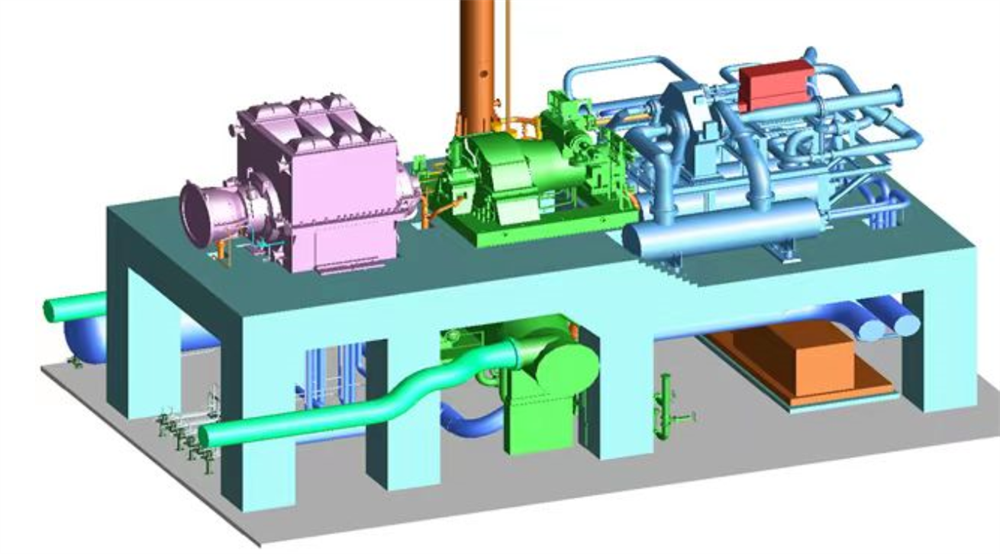

Air filtration and compression system
Atmospheric air is compressed and driven through the system by a series of air compressors. Many of the larger ASUs have steam-driven compression or electrically-driven compressors. Matching the right compressor design for the specific ASU cycle is critical to optimize energy usage and costs though working directly with compressor manufacturers to assure the best solution.
The system is composed of one unit of self-clean air filter and one unit of Main Air Compressor (MAC) and Booster Air Compressor(BAC).
Precooling system
The system is composed of one unit of refrigerator and one unit of water separator etc. The air is pre-cooled to 5-10℃ in the pre-cooling unit, and the moisture is separated.
Air purification system：
The adsorption process removes water, carbon dioxide, nitrogenous oxide, and hydrocarbons from the feed air stream which is needed for safe operation and high efficiency. Because site conditions can vary, there is three different configuration of absorption vessel: vertical, horizontal and radial flow. To balance reliability, operability and cost to determine which system is optimal. The system is composed of two units of adsorbers, one unit of electric heater.

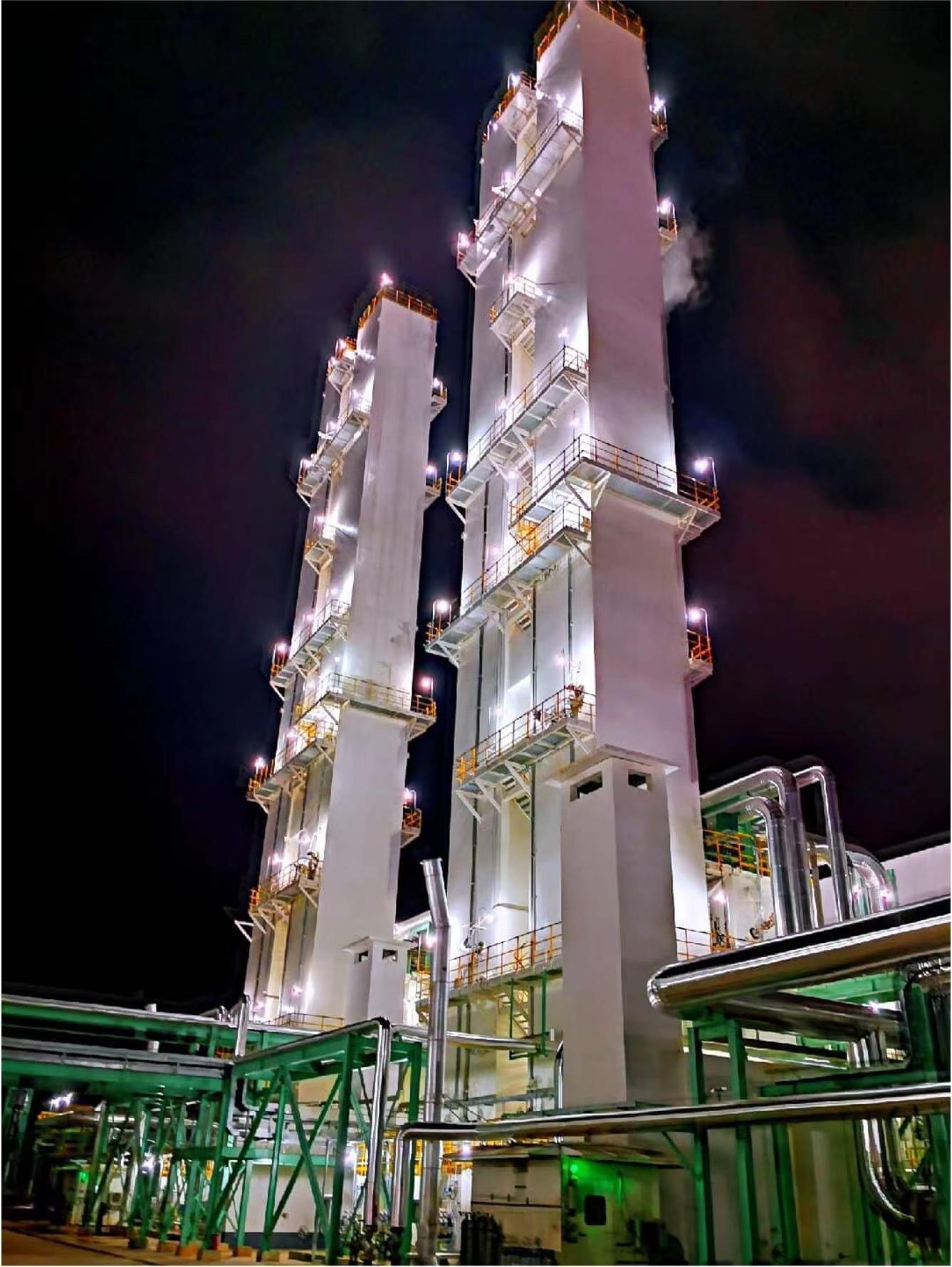

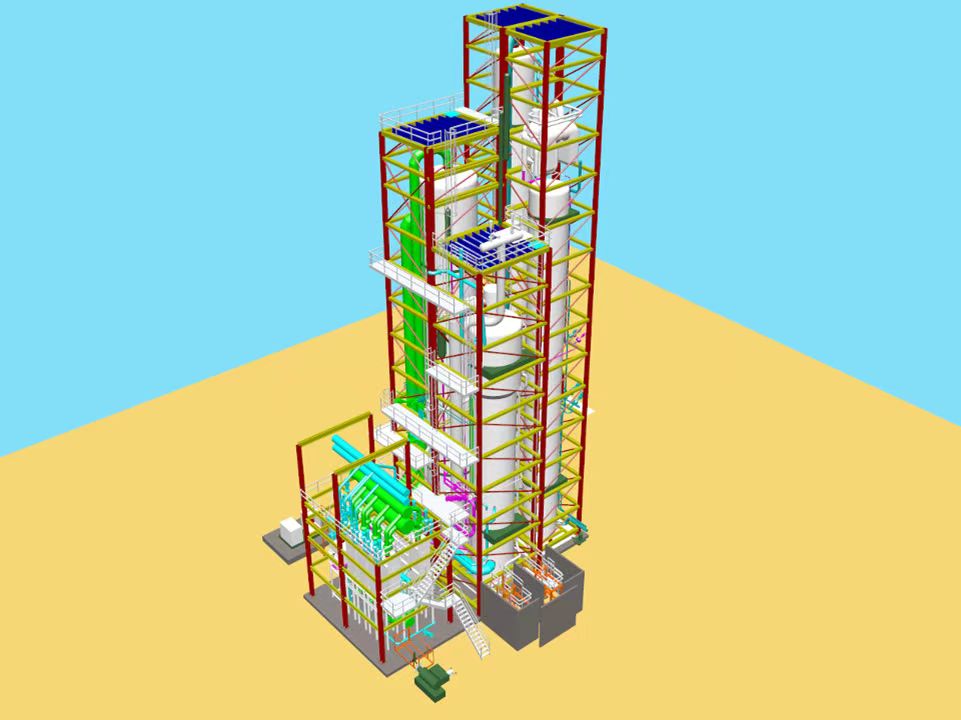

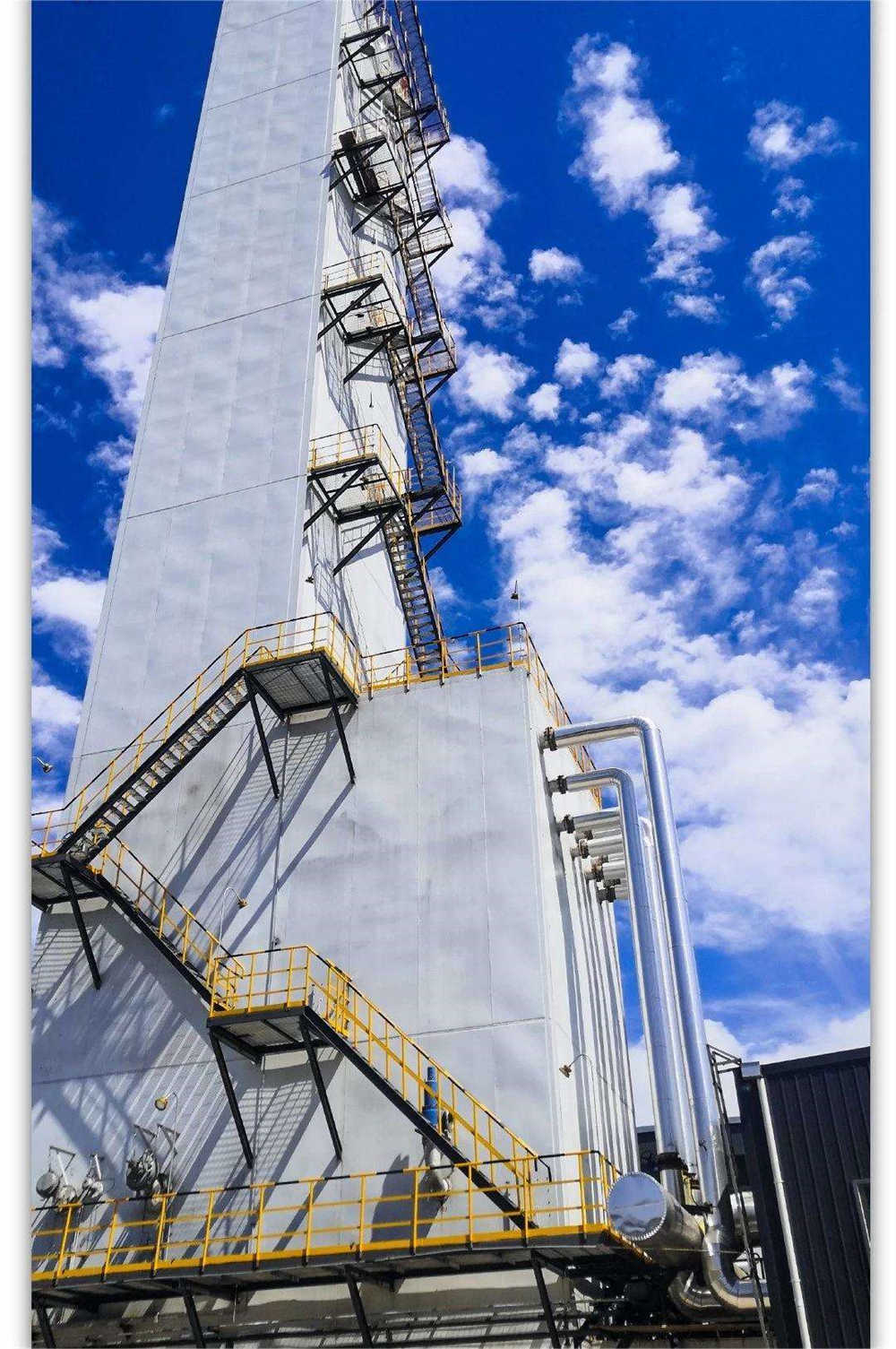

Air Distillation System (Cold box)
The optimal configuration of distillation column components is important in air separation, and also vital to minimize capital and operating costs. Structured packing provides a large surface area per volume, which maximizes mass
transfer performance and creates lower pressure drop versus conventional distillation trays. It delivers a higher capacity and lower pressure drop, resulting in lower energy consumption. Air distillation system is composed of main Heat Exchanger, lower column, main evaporator-condenser, upper column and sub cooler etc.
Backup Systems
On the rare occasion when a gasifier needs to safely shut-down on backup oxygen, a backup
system has to start fast and maintain the line pressure within tight limits. The instantaneous backup
system is important for the oxygen applicant
Product details:
Cryogenic oxygen, nitrogen and argon air separation unit is a device for separating oxygen, nitrogen, argon, or other gases from the air. The principle is try to cool the air into liquid at first, then use oxygen, nitrogen, argon components of the boiling point（-183℃, -196℃, -186℃） difference，thus having different sequence of evaporation to separate into Oxygen, Nitrogen or Argon and Rare gas.
Customers require large amounts of Oxygen, Nitrogen or Argon and Rare gas, we can design and operation cryogenic air separation units (ASU) to deliver the most cost-effective, efficient and dependable cryogenic solution to provide the Oxygen, Nitrogen or Argon and Rare gas or deliver the Cryogenic air separation unit to customer.
The main system of Air separation plant:
Air filtration and compression system
Atmospheric air is compressed and driven through the system by a series of air compressors. Many of the larger ASUs have steam-driven compression or electrically-driven compressors. Matching the right compressor design for the specific ASU cycle is critical to optimize energy usage and costs though working directly with compressor manufacturers to assure the best solution.
The system is composed of one unit of self-clean air filter and one unit of Main Air Compressor (MAC) and Booster Air Compressor(BAC).
Precooling system
The system is composed of one unit of refrigerator and one unit of water separator etc. The air is pre-cooled to 5-10℃ in the pre-cooling unit, and the moisture is separated.
Air purification system：
The adsorption process removes water, carbon dioxide, nitrogenous oxide, and hydrocarbons from the feed air stream which is needed for safe operation and high efficiency. Because site conditions can vary, there is three different configuration of absorption vessel: vertical, horizontal and radial flow. To balance reliability, operability and cost to determine which system is optimal. The system is composed of two units of adsorbers, one unit of electric heater.
Air Distillation System (Cold box)
The optimal configuration of distillation column components is important in air separation, and also vital to minimize capital and operating costs. Structured packing provides a large surface area per volume, which maximizes mass
transfer performance and creates lower pressure drop versus conventional distillation trays. It delivers a higher capacity and lower pressure drop, resulting in lower energy consumption. Air distillation system is composed of main Heat Exchanger, lower column, main evaporator-condenser, upper column and sub cooler etc.
Backup Systems
On the rare occasion when a gasifier needs to safely shut-down on backup oxygen, a backup
system has to start fast and maintain the line pressure within tight limits. The instantaneous backup
system is important for the oxygen applicant
Specification
Capacity | 20~10000 Nm3/h |
Purity | O2：≥99.6% ； N2：99.999% |
Power parameter | 380V/220V/50HZ (±5%) (to be designed following the volume. |
Cooling method | Air cooling/Water cooling |
Style | Cryogenic |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
1.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
