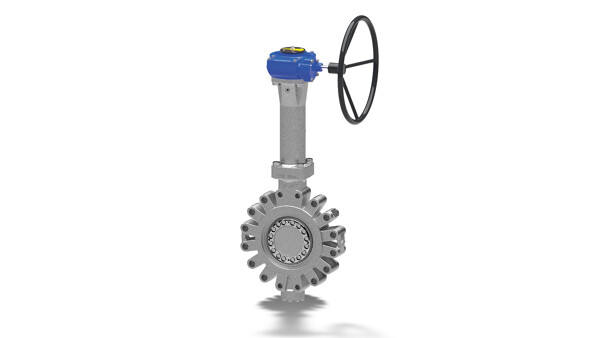

Double-offset butterfly Valve for Cryogenic Applications
Product descriptions from the supplierProduct DescriptionDouble-offset butterfly valve for cryogenic applications; body with flanged ends (T7) with raised faces, or body with weld ends made of stainless steel to ASME Class 150, JIS, fire-safe design.Benefits * Thermal insulation * The neck extension......
Product descriptions from the supplier
Product Description
Double-offset butterfly valve for cryogenic applications; body with flanged ends (T7) with raised faces, or body with weld ends made of stainless steel to ASME Class 150, JIS, fire-safe design.
Benefits
* Thermal insulation
* The neck extension protects the actuator from cryogenic temperatures.
* The valve can be optionally protected in the system by a drip plate.
* Perfect tightness
* The plain bearings ensure outstanding shaft guidance. Triple sealing at the shaft passage meets the requirements for
emissions performance in accordance with ISO 15848, Class AH (most stringent requirement).
* Tight shut-off in both directions ─ at ambient as well as cryogenic temperatures
* Easy to install
* Easier handling thanks to lifting lugs on the body
* Lip seal at the lower end of the neck extension facilitates installation in any position ─ even "upside down".
* Maintenance-free
* No retightening of the cable gland
* Cover can be removed to check joint ring and valve disc.
* No special tools required to replace seal
* Long service life
* Wear-free seat
* End stops protect the seat and valve disc should the actuator not be properly installed.
* Thermal insulation
* The neck extension protects the actuator from cryogenic temperatures.
* The valve can be optionally protected in the system by a drip plate.
* Perfect tightness
* The plain bearings ensure outstanding shaft guidance. Triple sealing at the shaft passage meets the requirements for
emissions performance in accordance with ISO 15848, Class AH (most stringent requirement).
* Tight shut-off in both directions ─ at ambient as well as cryogenic temperatures
* Easy to install
* Easier handling thanks to lifting lugs on the body
* Lip seal at the lower end of the neck extension facilitates installation in any position ─ even "upside down".
* Maintenance-free
* No retightening of the cable gland
* Cover can be removed to check joint ring and valve disc.
* No special tools required to replace seal
* Long service life
* Wear-free seat
* End stops protect the seat and valve disc should the actuator not be properly installed.
The Valve material can be adjusted as the customized valves.
Specification
Function | Shut off/control flow |
Connection type | Installation between flanges, |
Design concept Drive | With electric actuator,With handwheel,With pneumatic actuator,Hydraulic, |
Casing material | CF8M,CF3M |
Nominal pressure | PN 6,PN 10, PN 16 |
Max. nominal size | DN 1400 |
Min. nominal size | DN 80 |
Max. allowed fluid temperature | 200 °C |
Min. allowed fluid temperature | -253 °C |
Valve body type | Butt-weld side entry, |
Flanged body, raised faces |
