High Quality Liquid Oxygen Nitrogen Cryogenic Centrifugal Pump for ASU Plant Inside of Cold Box Spare Part of Pump
Product descriptions from the supplierProduct DescriptionCryogenic centrifugal pumps suitable media: LO2LN2 LAr LNG, mainly using to filling of cryogenic tank wagons, unloading of cryogenic tank wagons and delivery of cryogenicliquids. Optional configuration: Stationary motor/frequency control, Safe......
Product descriptions from the supplier
Product Description

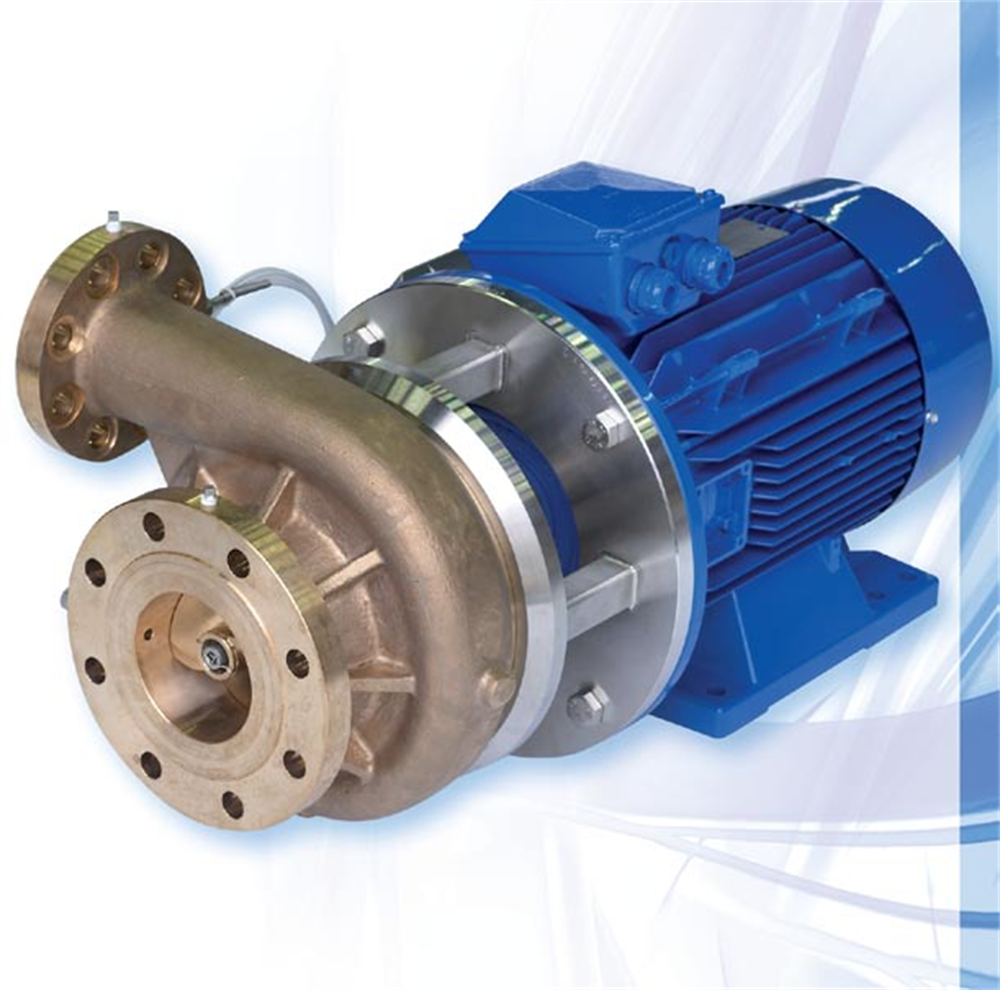

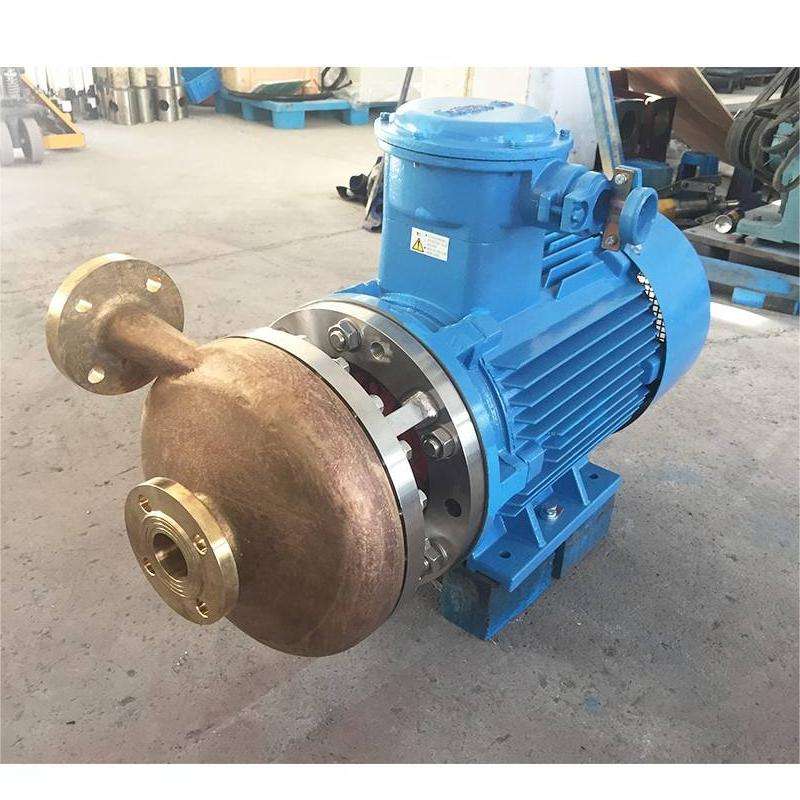

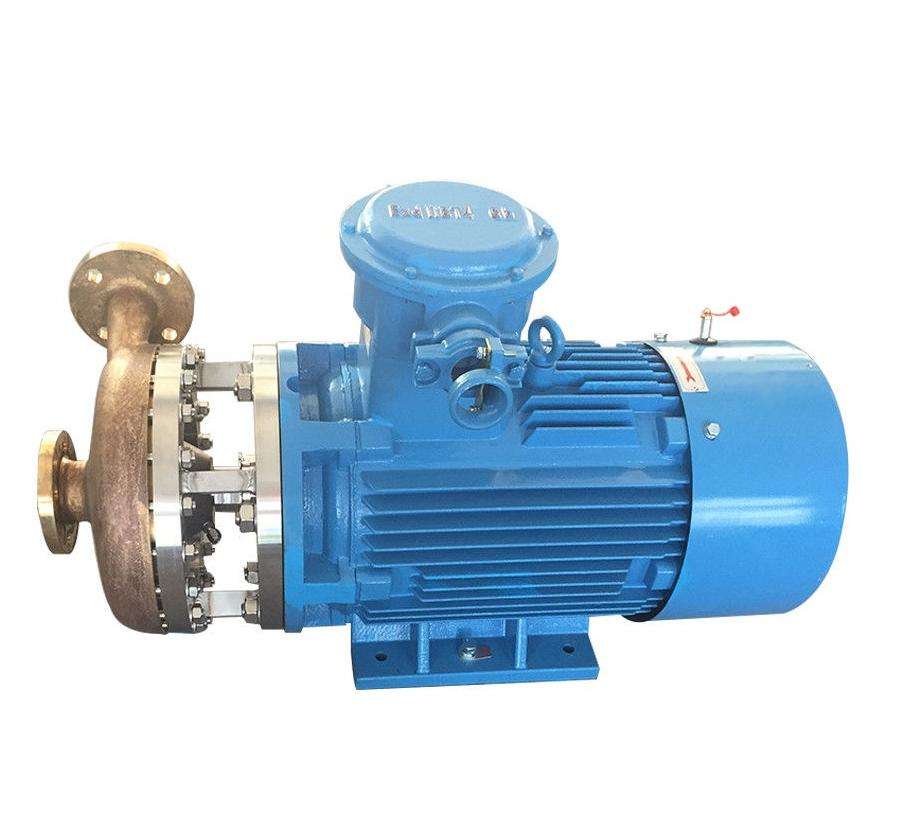

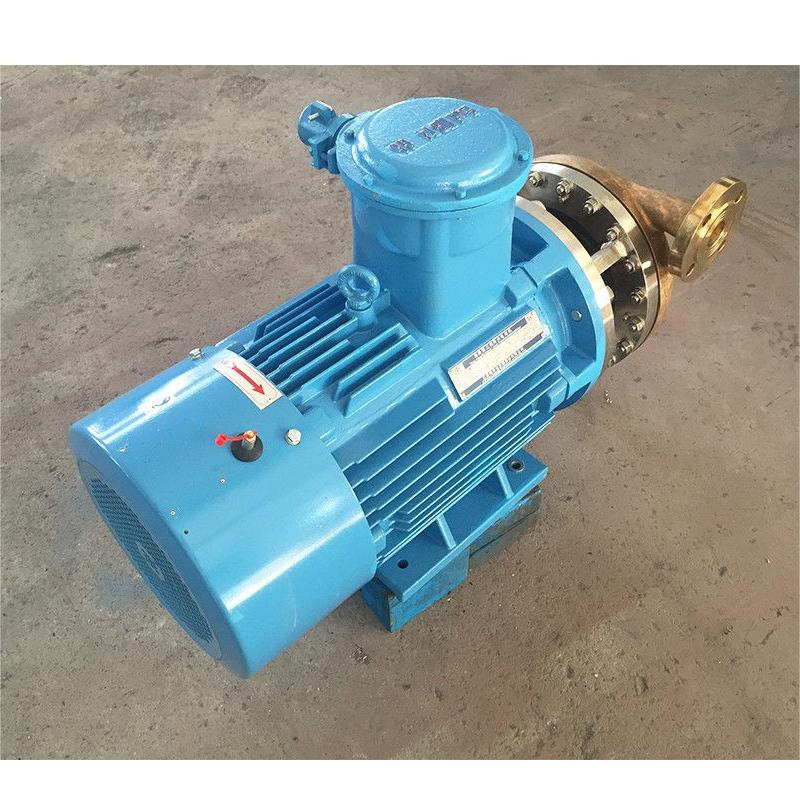

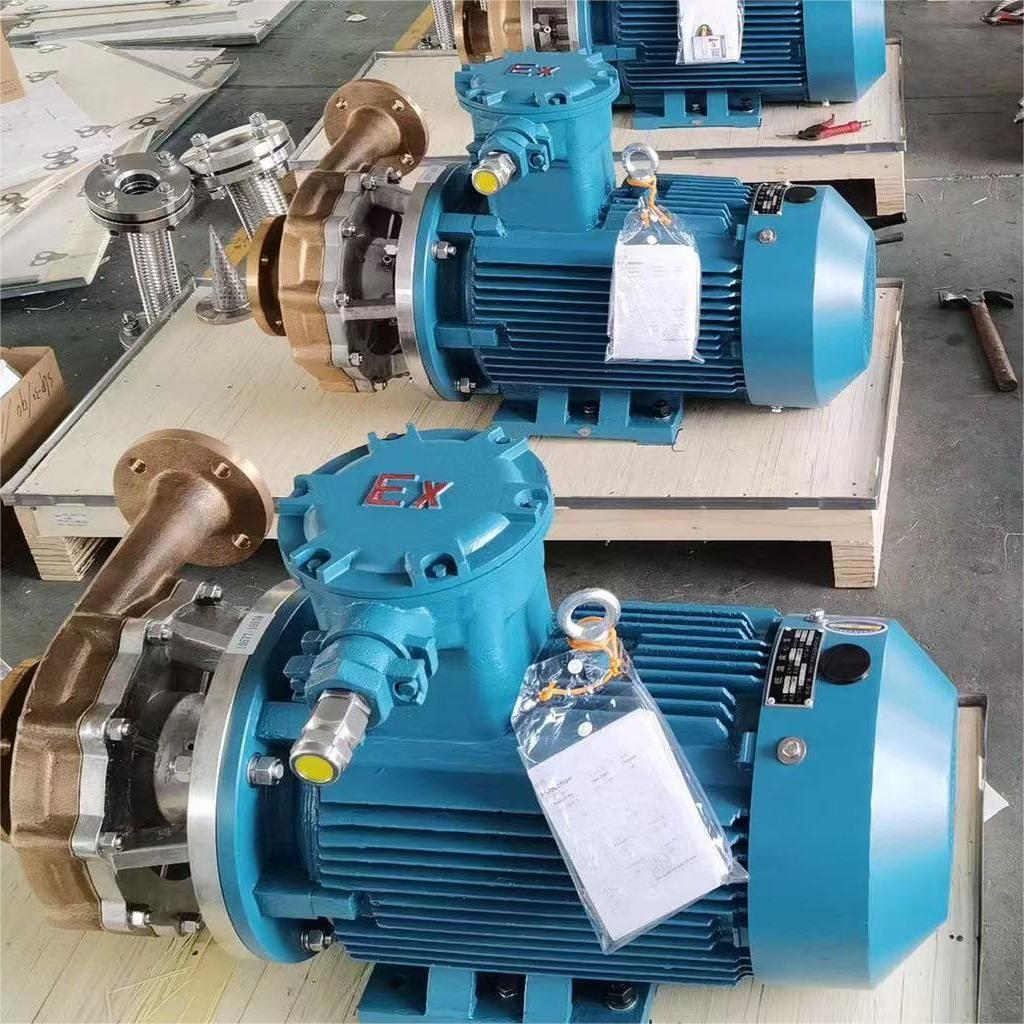

Cryogenic centrifugal pumps suitable media: LO2
LN2 LAr LNG, mainly using to filling of cryogenic tank wagons, unloading of cryogenic tank wagons and delivery of cryogenicliquids. Optional configuration: Stationary motor/frequency control, Safety valve/cryogenic stop valve, liquid outlet pressureinterlocking device.
Applicability
1. Stationary pump for liquid transfer
2. unloading of cryogenic tank
3. delivery of liquids
LN2 LAr LNG, mainly using to filling of cryogenic tank wagons, unloading of cryogenic tank wagons and delivery of cryogenicliquids. Optional configuration: Stationary motor/frequency control, Safety valve/cryogenic stop valve, liquid outlet pressureinterlocking device.
Applicability
1. Stationary pump for liquid transfer
2. unloading of cryogenic tank
3. delivery of liquids
Performance Features
1. The structure is compact and concise.
2. The volute and impeller are made of high-performance copper alloy to ensure the safety of liquid oxygen working conditions.
3. The mechanical seal is mature and reliable, with strong cavitation resistance, long service life and easy installation.
4. High strength low temperature stainless steel shaft.
5. The impeller and rotor have undergone dynamic and static balance tests to ensure the stability of the rotor.
The variable frequency motor can be selected to cover a large flow range and head. 7.The inlet and outlet flanges are equipped with flexible and simple and inlet filter, the pipeline vibration is small and the operation is stable.
1. The structure is compact and concise.
2. The volute and impeller are made of high-performance copper alloy to ensure the safety of liquid oxygen working conditions.
3. The mechanical seal is mature and reliable, with strong cavitation resistance, long service life and easy installation.
4. High strength low temperature stainless steel shaft.
5. The impeller and rotor have undergone dynamic and static balance tests to ensure the stability of the rotor.
The variable frequency motor can be selected to cover a large flow range and head. 7.The inlet and outlet flanges are equipped with flexible and simple and inlet filter, the pipeline vibration is small and the operation is stable.
Comprehensive range of Modular Centrifugal Pumps with a flow capacity up to 900 m3/h.

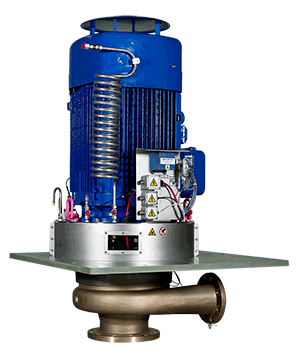

MCP pumps can be installed in horizontal or vertical position. In warm box execution the pump can remain in cold standby and runin continuous duty. When supplied in cold box execution these pump can be directly mounted on the ASU cold box.
Their modular design meets the most demanding requirements of today’s air separation units and other process installations, with optimal hydraulic efficiency and perfect reliability in continuous duty. The MCP pump range needs minimal maintenance whatever seal system is selected .The rotating part can be disassembled and reassembled easily without dismantling the process line
Their modular design meets the most demanding requirements of today’s air separation units and other process installations, with optimal hydraulic efficiency and perfect reliability in continuous duty. The MCP pump range needs minimal maintenance whatever seal system is selected .The rotating part can be disassembled and reassembled easily without dismantling the process line
Each pump manufactured is mechanically and cryogeni-cally tested prior to shipment in the testing facility to ensure that performance meets customer specification. The precision of measuring devices provides essential results : differential head, flow rate, seal gas consumption, pump efficiency, and vibration levels and all documented and submitted to
the customer.
Specification
Liquids pumped | LO2, LN2, LAr |
Drive type | Direct coupled |
