Product descriptions from the supplierProduct DescriptionThe centrifugal compressor: The working principle of a centrifugal compressorBy adding kinetic energy to air particles and abruptly slowing them down, you build up pressure.By doing this in several stages, you can go up to 13 bar in lower comp......
Product descriptions from the supplier
Product Description
The centrifugal compressor:
The working principle of a centrifugal compressor
By adding kinetic energy to air particles and abruptly slowing them down, you build up pressure.
By doing this in several stages, you can go up to 13 bar in lower compression machinery.
And as high as 205 bar in 4-8 stage high compression turbo machinery, also known as multi-stage centrifugal compressors.
* 1 -stage: up to 2.5 bar
* 2 -stages: 2.5 bar to 5.5 bar
* 3 -stages : 6 bar to 13 bar
* 4-8 stages up to 205 bar

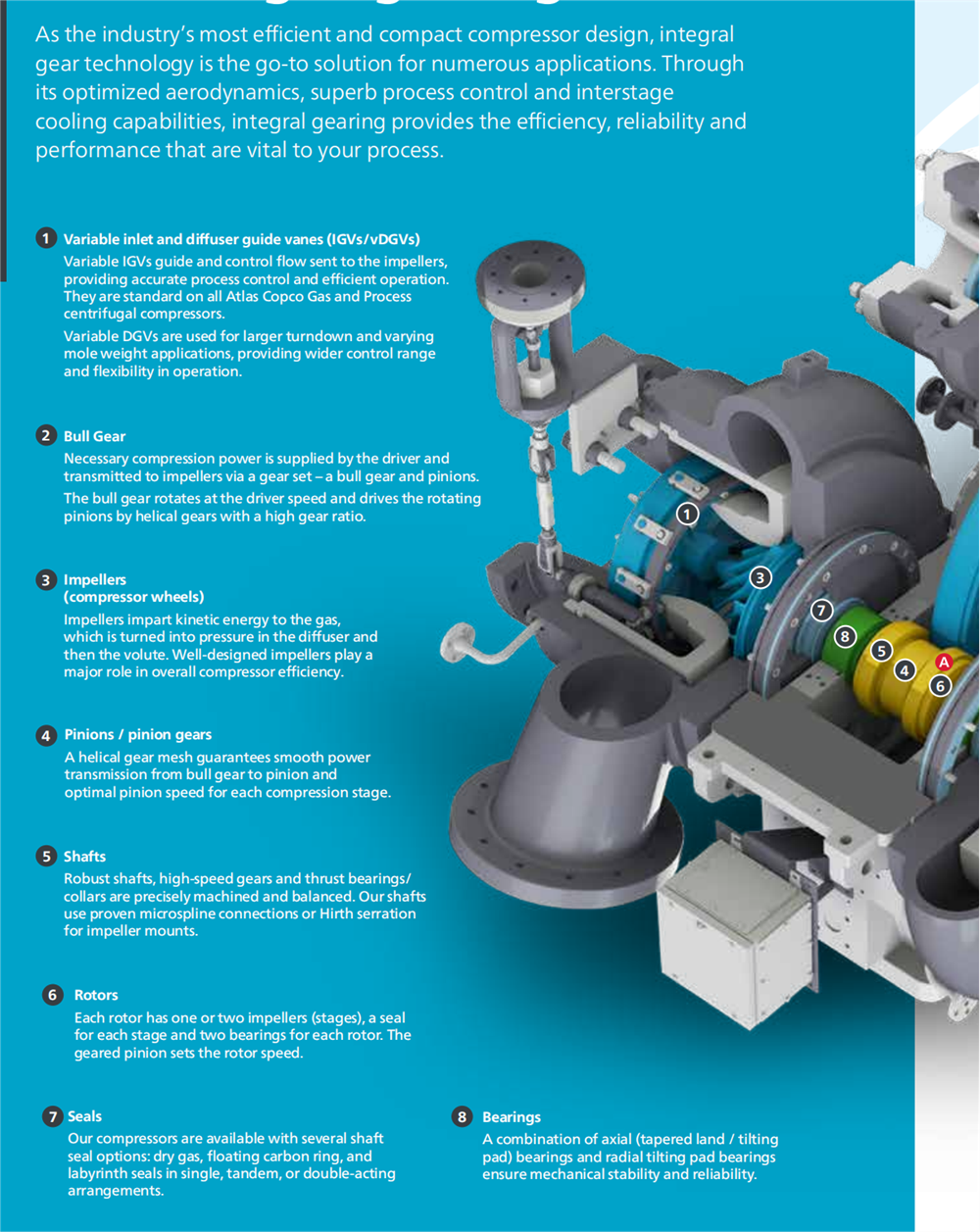

The core of the stage centrifugal compressor consists of 3 elements;
Impeller: The air flow enters the impeller, where the rotating blades increase the kinetic energy of the air
Diffuser: The diffuser manipulates the air flow by gradually slowing down the air velocity and converting the kinetic energy into pressure.
Volute: The diffuser discharges in the collector – shaped as a snail shell- also known as the volute. In the volute, the air flow from the diffuser is collected and distributed to an outlet pipe.
The working principle of a centrifugal compressor
By adding kinetic energy to air particles and abruptly slowing them down, you build up pressure.
By doing this in several stages, you can go up to 13 bar in lower compression machinery.
And as high as 205 bar in 4-8 stage high compression turbo machinery, also known as multi-stage centrifugal compressors.
* 1 -stage: up to 2.5 bar
* 2 -stages: 2.5 bar to 5.5 bar
* 3 -stages : 6 bar to 13 bar
* 4-8 stages up to 205 bar
The core of the stage centrifugal compressor consists of 3 elements;
Impeller: The air flow enters the impeller, where the rotating blades increase the kinetic energy of the air
Diffuser: The diffuser manipulates the air flow by gradually slowing down the air velocity and converting the kinetic energy into pressure.
Volute: The diffuser discharges in the collector – shaped as a snail shell- also known as the volute. In the volute, the air flow from the diffuser is collected and distributed to an outlet pipe.
Within the centrifugal compressors category, 3 main configurations are available:
* An axial multistage compressoris running at a relatively low speed, mostly direct driven by an induction motor. Multiple
impellers are lined up axially after each other to gradually build up the pressure.

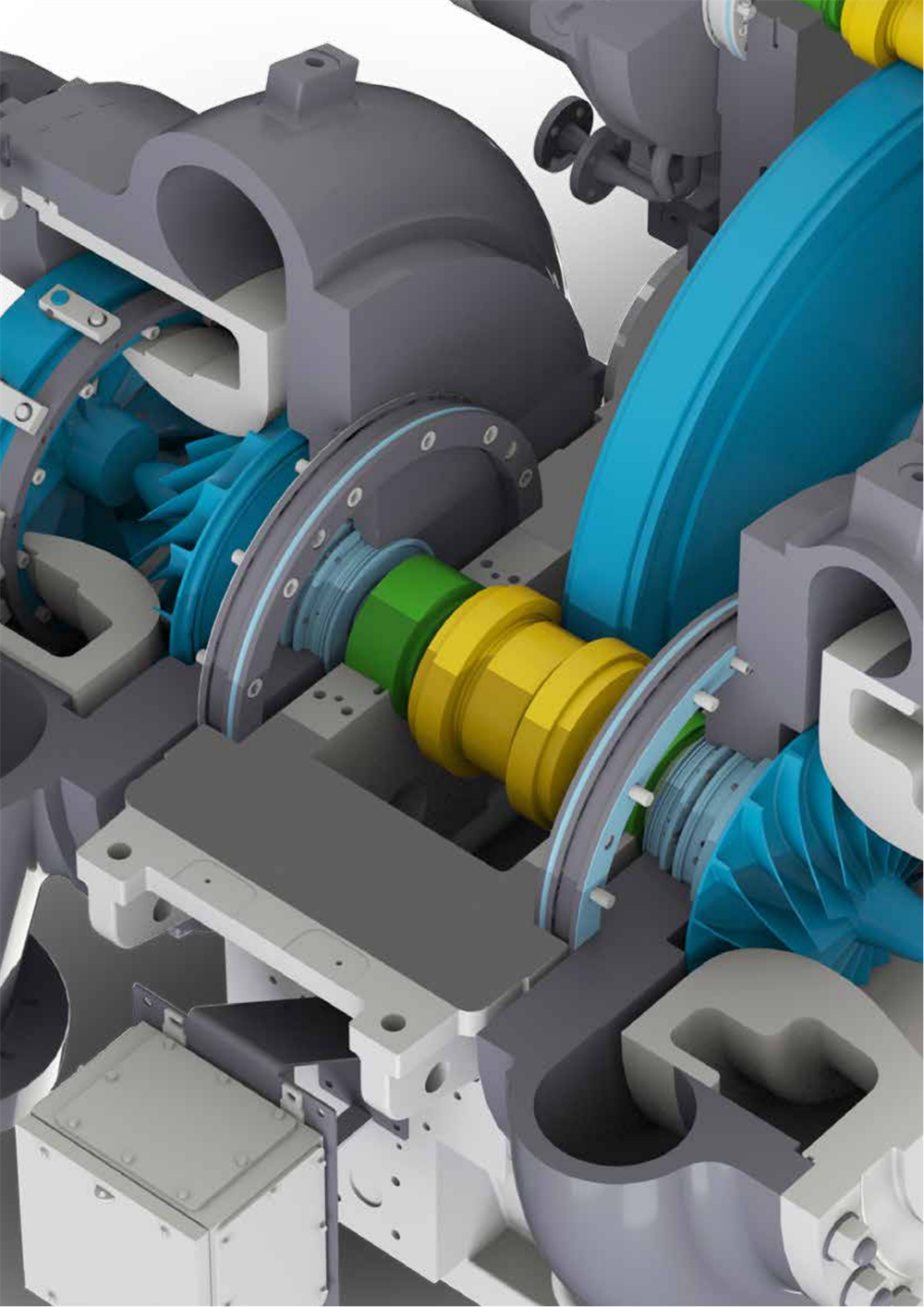

* Geared turbo compressorsare driven by an induction motor rotating at a relatively low speed. The radial impeller(s) are running at a high speed due to a gearbox transmission. Special bearings are required for these high speeds, mostly hydrodynamic bearings are used. Either single or multiple impellers can be installed depending on the required pressure and or flow.
* Highspeed turbo compressorsare radial turbos without the presence of any gears. The motor is directly driving the impeller. This means the motor needs to run at high speeds, requiring Permanent Magnet motor technology. To be reliable at these high speeds, magnetic bearings are used to avoid any contact or wear.
impellers are lined up axially after each other to gradually build up the pressure.
* Geared turbo compressorsare driven by an induction motor rotating at a relatively low speed. The radial impeller(s) are running at a high speed due to a gearbox transmission. Special bearings are required for these high speeds, mostly hydrodynamic bearings are used. Either single or multiple impellers can be installed depending on the required pressure and or flow.
* Highspeed turbo compressorsare radial turbos without the presence of any gears. The motor is directly driving the impeller. This means the motor needs to run at high speeds, requiring Permanent Magnet motor technology. To be reliable at these high speeds, magnetic bearings are used to avoid any contact or wear.

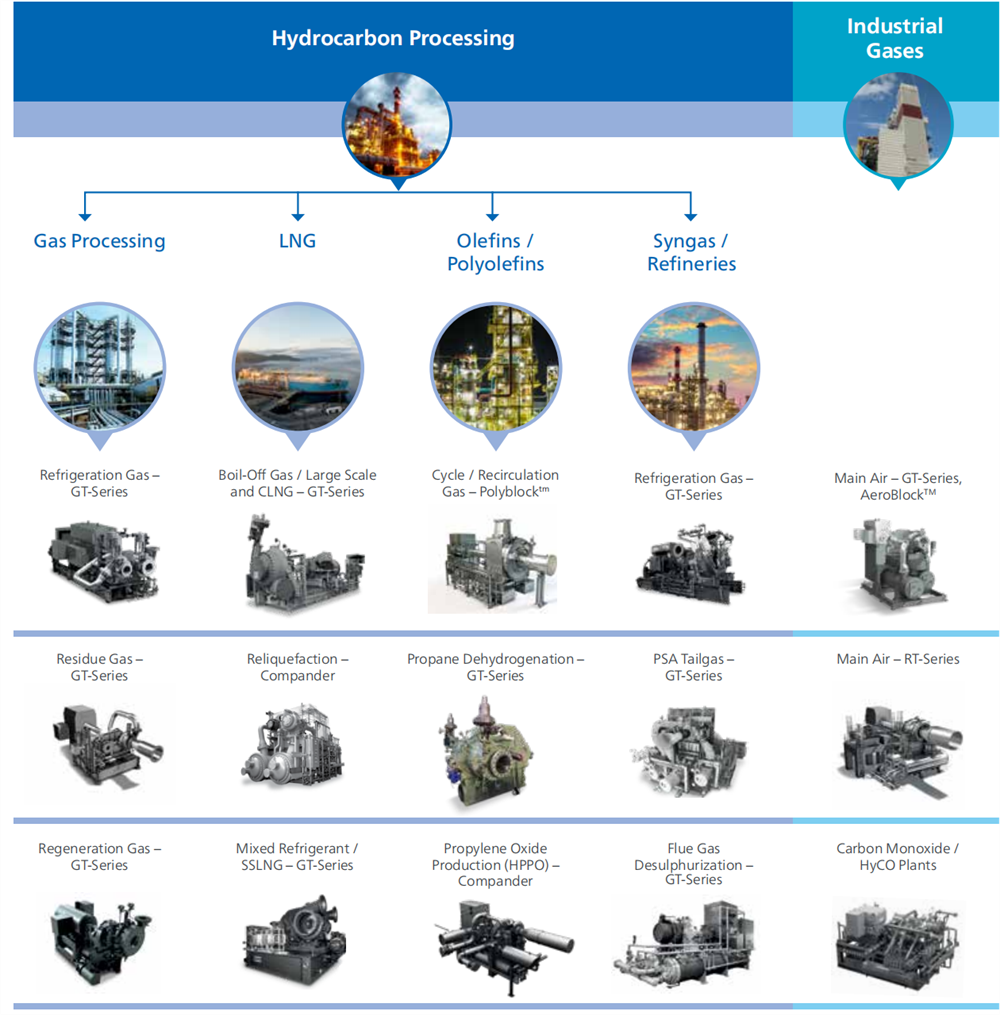

1. Oil-free air centrifugal blowers- up to 1.5 bar : In sensitive industrial applications, a reliable supply of oil-free air at lower pressures from 300 mbar (g) to 1.5 bar (g) is needed
2. Oil-free air centrifugal compressors - from 2 to 13 bar
3. Higher pressure centrifugal compressors for process air and gas applications- up to 205 bar
Specification
Working Pressure bar (a) | 2.5 bar ~ 205 bar |
Capacity FAD | Customized |
Installed motor power | 700 kW - 8000 kW |
Temperature | Upto 200°C(400F) |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
1.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
