Cryogenic Insulation Dewar Liquid Nitrogen Storage Cylinder/ Argon Cylinder with Competitive Price Isolamento Criogenico Dewar
Product descriptions from the supplierProduct DescriptionCryogenic Liquid CylinderThe cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc. * Vaporizer installed inside can supply 10m3/h gas continuously* Adopt the interna......
Product descriptions from the supplier
Product Description
Cryogenic Liquid Cylinder
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc.

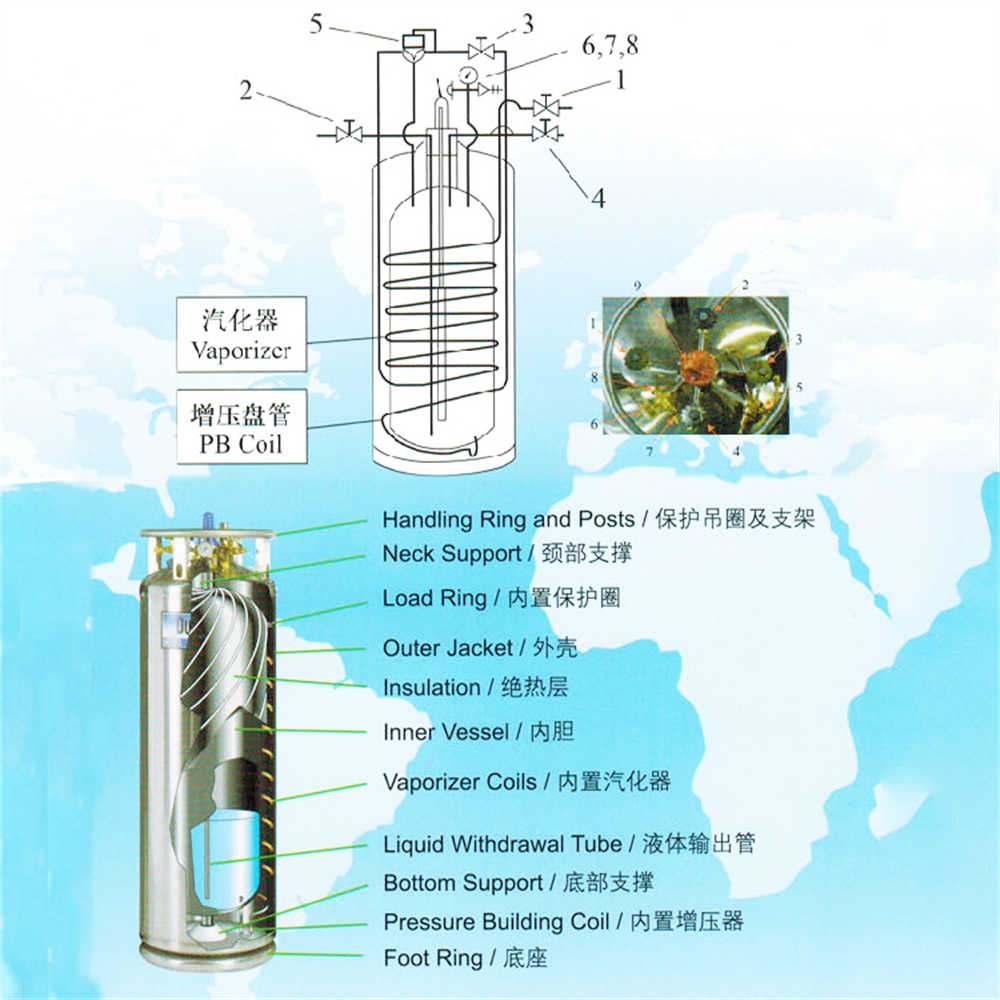

* Vaporizer installed inside can supply 10m3/h gas continuously

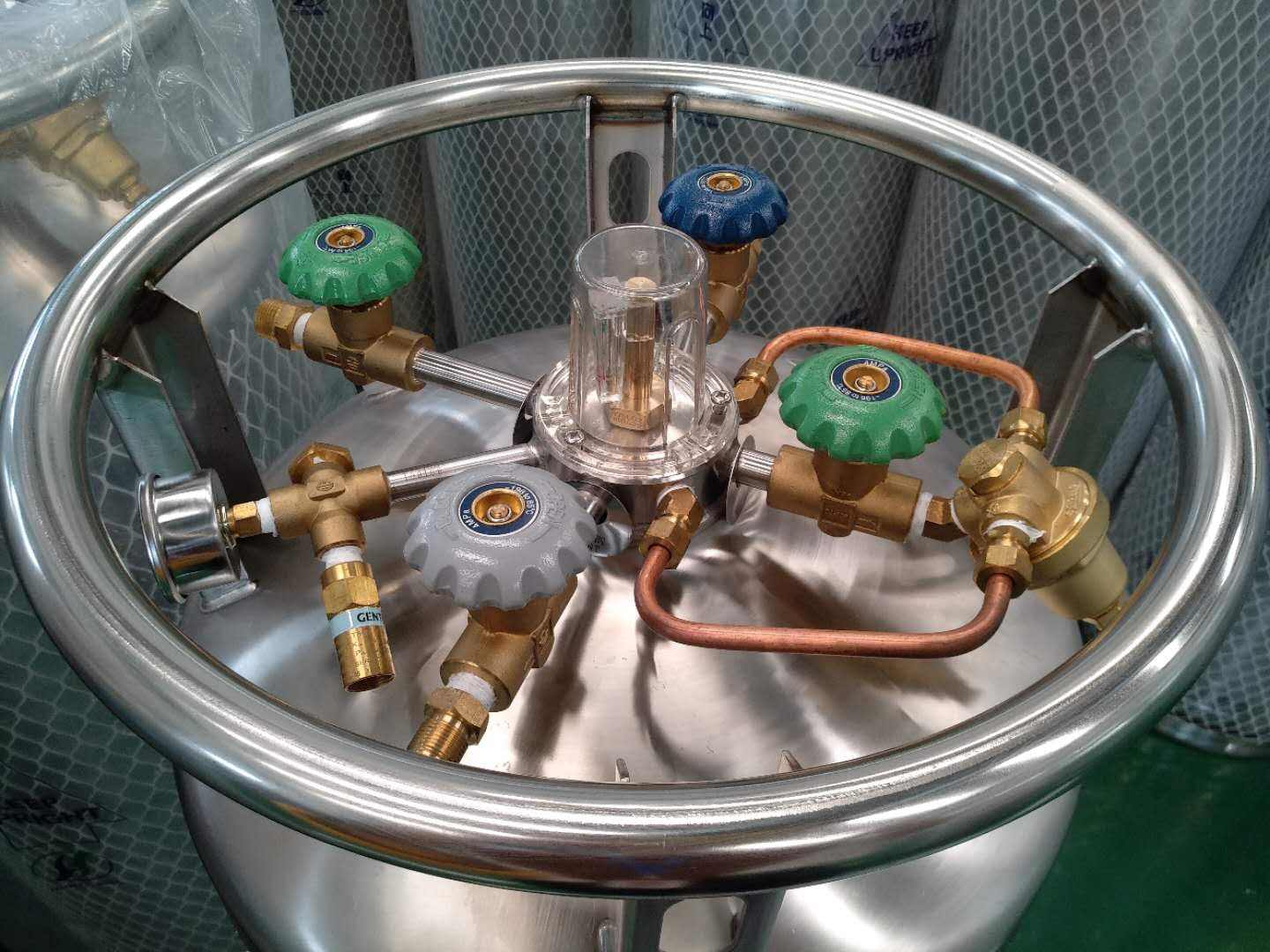

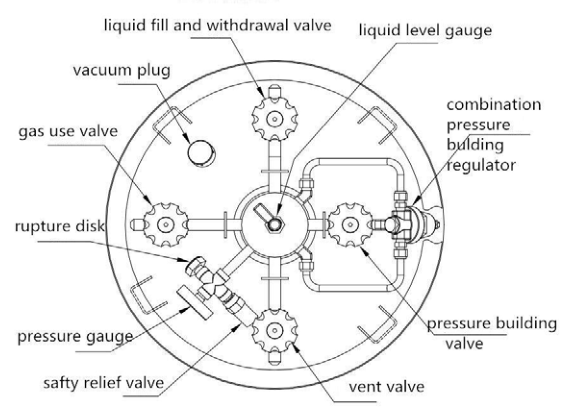

* Adopt the international standard connectors, all valves are imported brands.
* We can customize according to the customers.
* Damping ring design to make sure the transportation safely
* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy
/research/fish-heat preservation, etc.
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc.
* Vaporizer installed inside can supply 10m3/h gas continuously
* Adopt the international standard connectors, all valves are imported brands.
* We can customize according to the customers.
* Damping ring design to make sure the transportation safely
* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy
/research/fish-heat preservation, etc.
Compared with compressed gas cylinders, Dewar tanks can hold a large amount of gas at a relatively low pressure
Advantages:
* Ideal for liquid nitrogen, oxygen, argon, CO2 or nitrous oxide
* Different sizes, pressure, and features to meet your needs
* Stainless steel bottle construction
* Thick, dent-resistant outer shell
* Durable inner-vessel support system
* Heavy-duty footring and large diameter handling ring with four supports
* Ideal for liquid nitrogen, oxygen, argon, CO2 or nitrous oxide
* Different sizes, pressure, and features to meet your needs
* Stainless steel bottle construction
* Thick, dent-resistant outer shell
* Durable inner-vessel support system
* Heavy-duty footring and large diameter handling ring with four supports
Specification

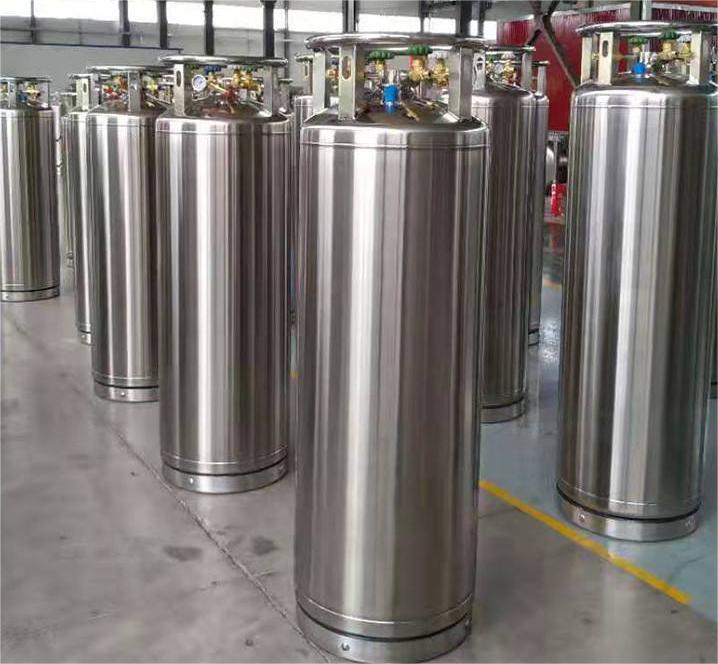

Vertical Model | HH-100 | HH-175 | HH-195 | HH-210 | HH-410 | HH-450 |
Diameter*Height (mm) | 454*1247 | 508*1500 | 508*1620 | 508*1707 | 750*850*1707 | 750*850*1900 |
Working Pressure (MPa) | 1.33 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
2.01 | 2.01 | 2.01 | 3.17 | 3.17 | ||
2.88 | 2.88 | 2.88 | ||||
Pressure Relief Valve (MPa) | 1.59 | 1.59 | 1.59 | 1.59 | 1.59 | 1.59 |
2.41 | 2.41 | 2.41 | 3.45 | 3.45 | ||
3.45 | 3.45 | 3.45 | ||||
Inner Container Bursting Disc (MPa) | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
3.62 | 3.62 | 3.62 | 5.7 | 5.7 | ||
5.17 | 5.17 | 5.17 | ||||
Maximum Liquid Capacity (L) | 100 | 175 | 195 | 210 | 410 | 450 |
Usable Liquid Capacity (L) | 95 | 166 | 185 | 197 | 389 | 427 |
Normal Evaporation Rate | ≤0.95% | ≤0.95% | ≤0.95% | ≤0.95% | ≤0.95% | ≤0.95% |
Tare Weight (Kg) | 70 | 110 | 117 | 123 | 282 | 289 |
Oxygen(kg) | 100 | 172 | 191 | 205 | 443 | 487 |
Nitrogen(Kg) | 73 | 121 | 135 | 145 | 315 | 346 |
Argon(Kg) | 127 | 208 | 233 | 250 | 548 | 602 |

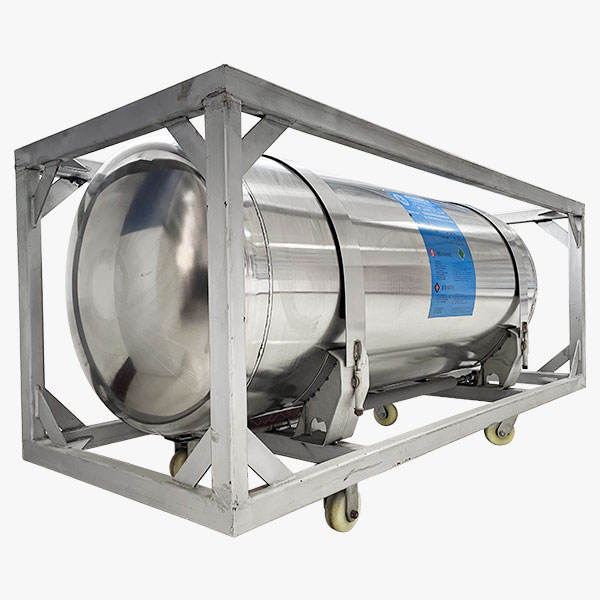

Horizontal Type of Cryogenic Liquid Cylinder | DPW650-499-1.59 | DPW650-499-2.5 | ||
Geometric volume(L) | 499 | 499 | ||
Effective Volume(L) | 449 | 449 | ||
Size( L*W*H)(mm) | 2155*750*1035 | 2155*750*1035 | ||
Working pressure( Mpa) | 1.59 | 2.5 | ||
Set pressure of main safety valve( Mpa) | 1.72 | 2.75 | ||
Set pressure of assisant safety valve( Mpa) | 2.41 | 3.84 | ||
Evaporation rate( Liquid nitrogen) | 1.70% | 1.70% | ||
Empty weight( kg) | 360 | 425 | ||
Maximum filling weight(kg) | LO2(KG) | 511 | 511 | |
LN2(KG) | 364 | 364 | ||
LAR(KG) | 629 | 629 | ||
LNG(KG) | 191 | ~ | ||
LCO2(KG) | ~ | 457 | ||
Level gauge | Capacitance | Capacitance | ||
Surface treatment | Polishing | Polishing | ||
The base style | Frame Style | Frame Style | ||
Recommend Products

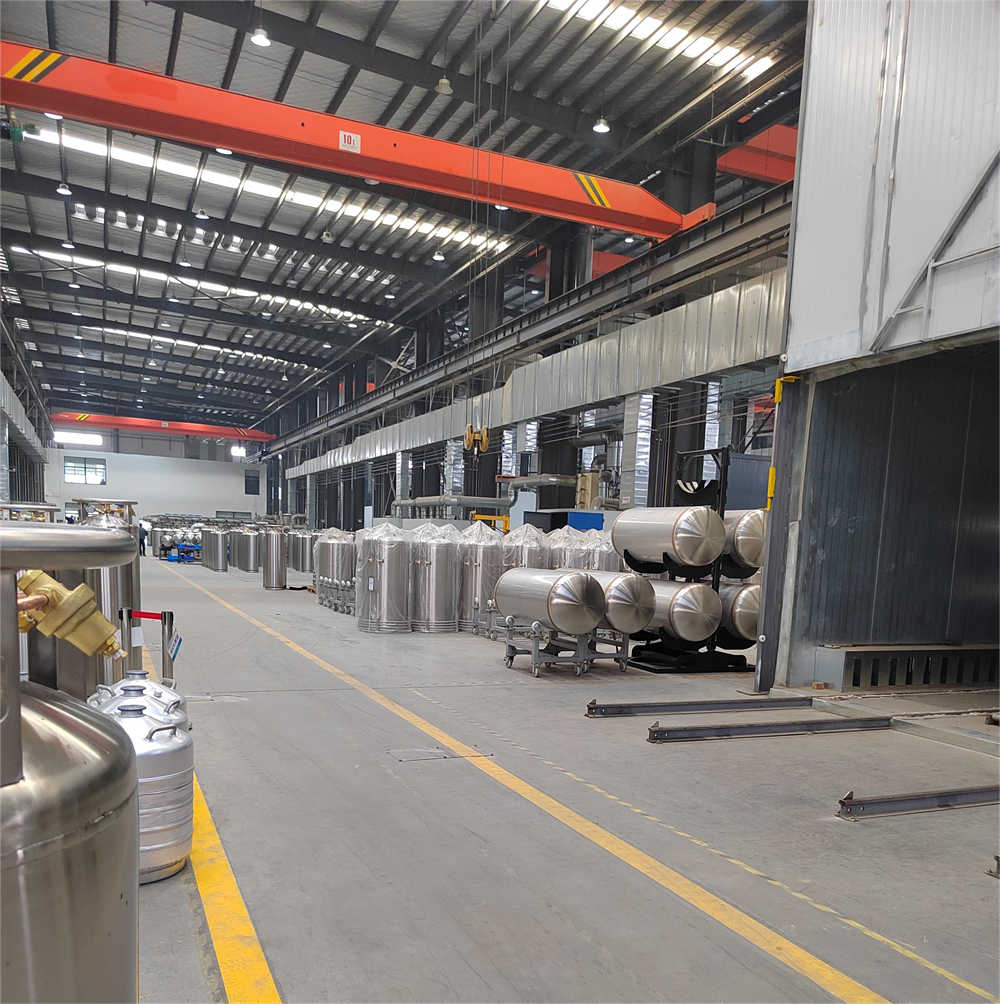

Manufacturing Technique
