10 M3 Pressure Vessel Vertical Liquid Argon Liquid Nitrogen LCO2 LNG Liquid Oxygen Cryogenic Tanks Tanques De Armazenamento
Raydafon's 10 M3 Pressure Vessel Vertical Tanks store cryogenic liquids like liquid argon, liquid nitrogen, LCO2, LNG, and liquid oxygen with unmatched safety and efficiency, ideal for industrial users seeking reliable, high-performance solutions that deliver peace of mind and operational excellence.
Product descriptions from the supplier
Product Description
Micro tank is a pressure vessel which is used for filling and storing Liquid Gas such as LO2, LAr, LN2, LCO2 and LNG.
* The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa;
* The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa;
* the nominal volumes available are 1M3, 2M3, 3M3 5M3, 7.5M3 10M3
* Micro tanks are pressure vessels with inner and outer container dual structure.
* The inner container is made of S30408 stainless steel, suspended in the Q345R
* The space between the inner and outer container is wrapped by high vacuum heat-insulated Aluminum foil fiber glass material.
* Micro tank is suitable for transporting vaporized gases when it''s connected with a vaporizer.It has been widely used in different field.
The microbulk is suitable for transporting vaporized gases when it’s connected with a vaporizer.
Microbulk solutions- an innovative gas storage platform, specially designed for substitutes of industrial cylinder users in
cutting, welding, lab, hospital, etc. The system allows packaged gas distributors and users to enjoy the benefits of on-site gas delivery.
cutting, welding, lab, hospital, etc. The system allows packaged gas distributors and users to enjoy the benefits of on-site gas delivery.
Free of Foundation! Free of installation! Easy Transportation!
Service for liquid Oxygen, Nitrogen,Argon, Natural Gas and CO2 at working pressure range from 0.8MPa to 3.4MPa ;
The nominal volumes available are 1M3~5M3.
Service for liquid Oxygen, Nitrogen,Argon, Natural Gas and CO2 at working pressure range from 0.8MPa to 3.4MPa ;
The nominal volumes available are 1M3~5M3.

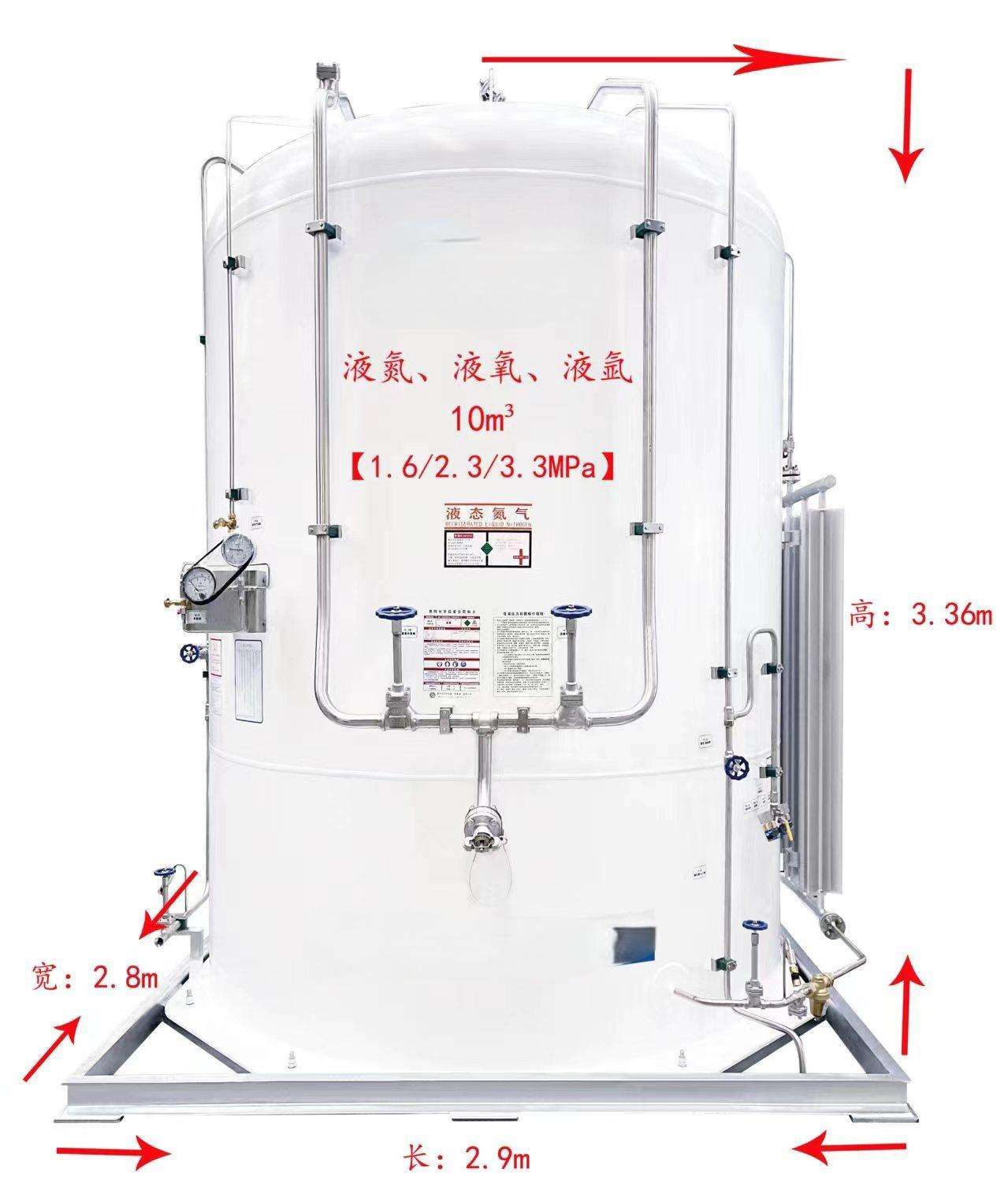

Specification
Working pressure | 0.8Mpa-3.4Mpa |
Volume | 450L-4993L |
Medium | LOX/LIN/LAr/LCO2 |
Material | Stainless steel and carbon steel |
Diameter | φ758mm-1816mm |
Height | 1706mm-3265mm |
Empty weight | 354kg-4275kg |
Design standard | GB/ASME |
Insulation type | High vacuum multi-layers Insulation |
Recommend Products
Manufacturing Technique
Our Advantages
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
