10M3-250M3 Cryogenic Storage Tank Vertical Cryogenic Liquid Oxygen LNG, N2, O2, Ar, CO2.
Product descriptions from the supplierProduct DescriptionCRYOGENIC TANKSStorage tank is for liquefied gas under pressure, at cryogenic temperatures, for products, such as LNG, N2, O2, Ar, CO2.They consist of two vessels, one inside the other, with robust thermal insulation in the chamber between the......
Product descriptions from the supplier
Product Description
CRYOGENIC TANKS
Storage tank is for liquefied gas under pressure, at cryogenic temperatures, for products, such as LNG, N2, O2, Ar, CO2.

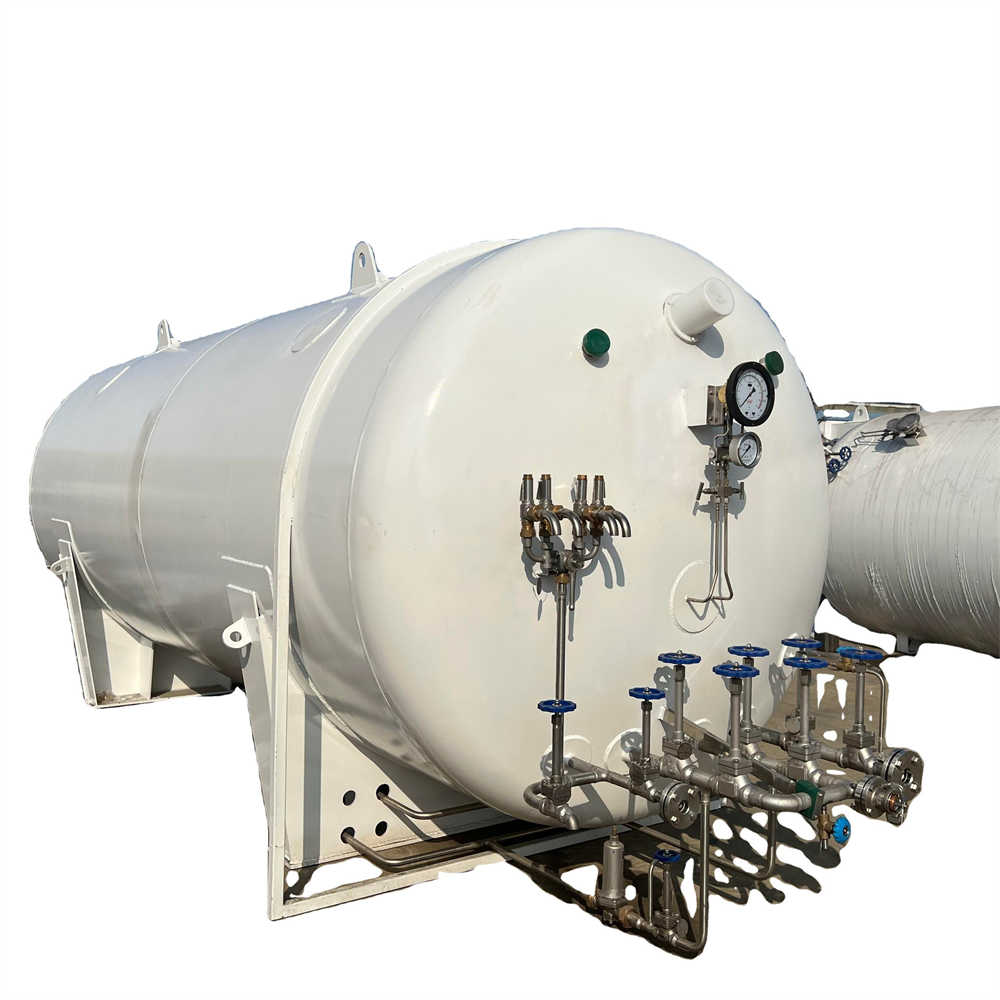

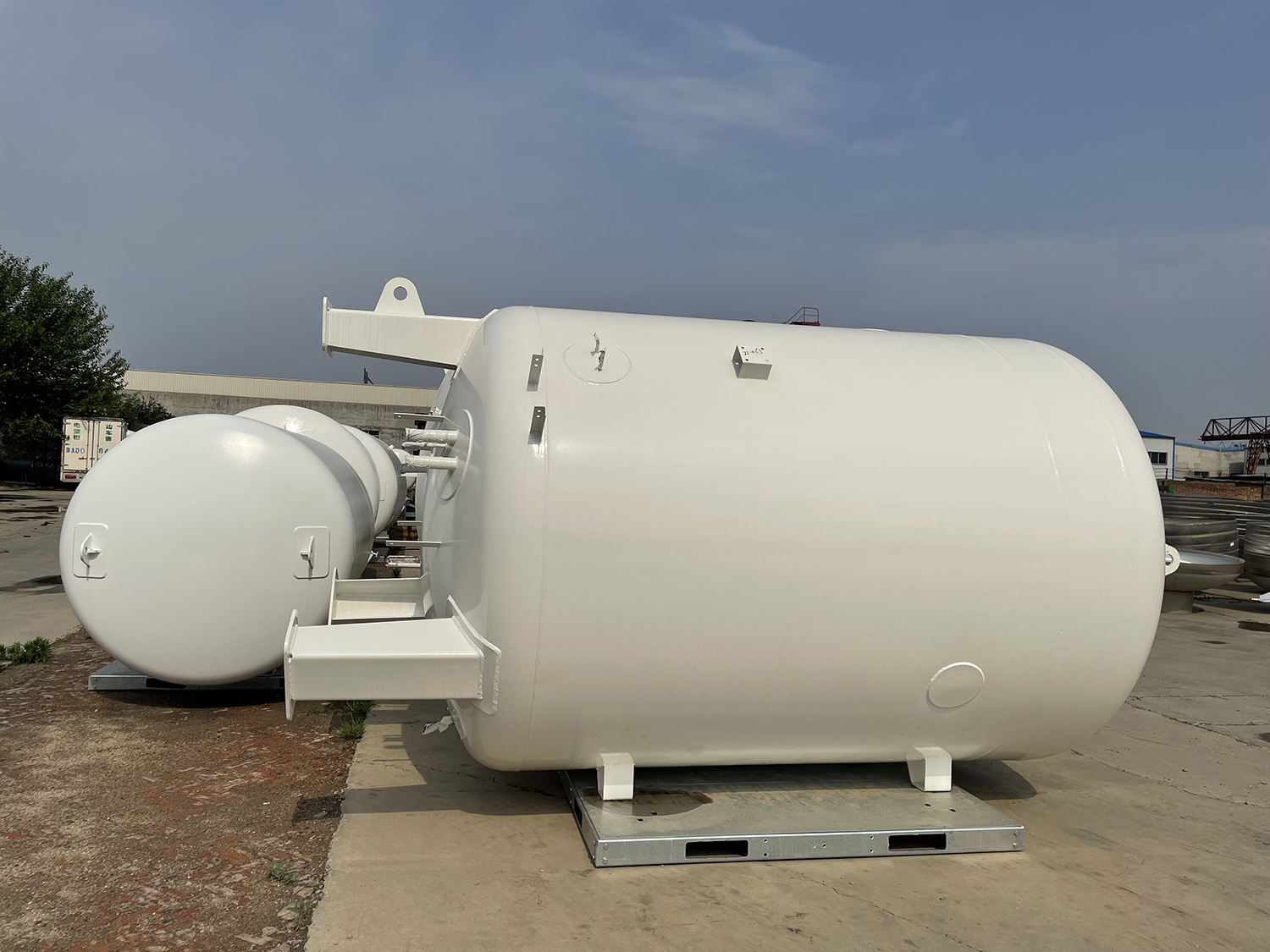

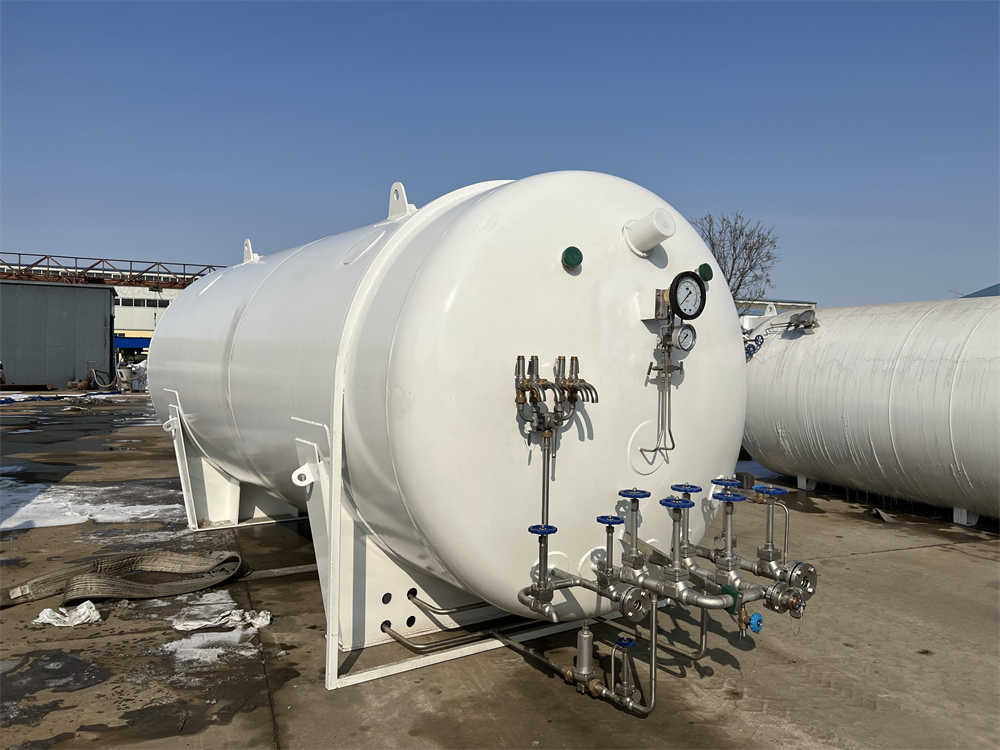

They consist of two vessels, one inside the other, with robust thermal insulation in the chamber between them. They are built in both a vertical (with legs or skirting ) and horizontal version(with support cradles and anchoring to the ground).
Design
According to ASME, GB150, GB18442 standards.

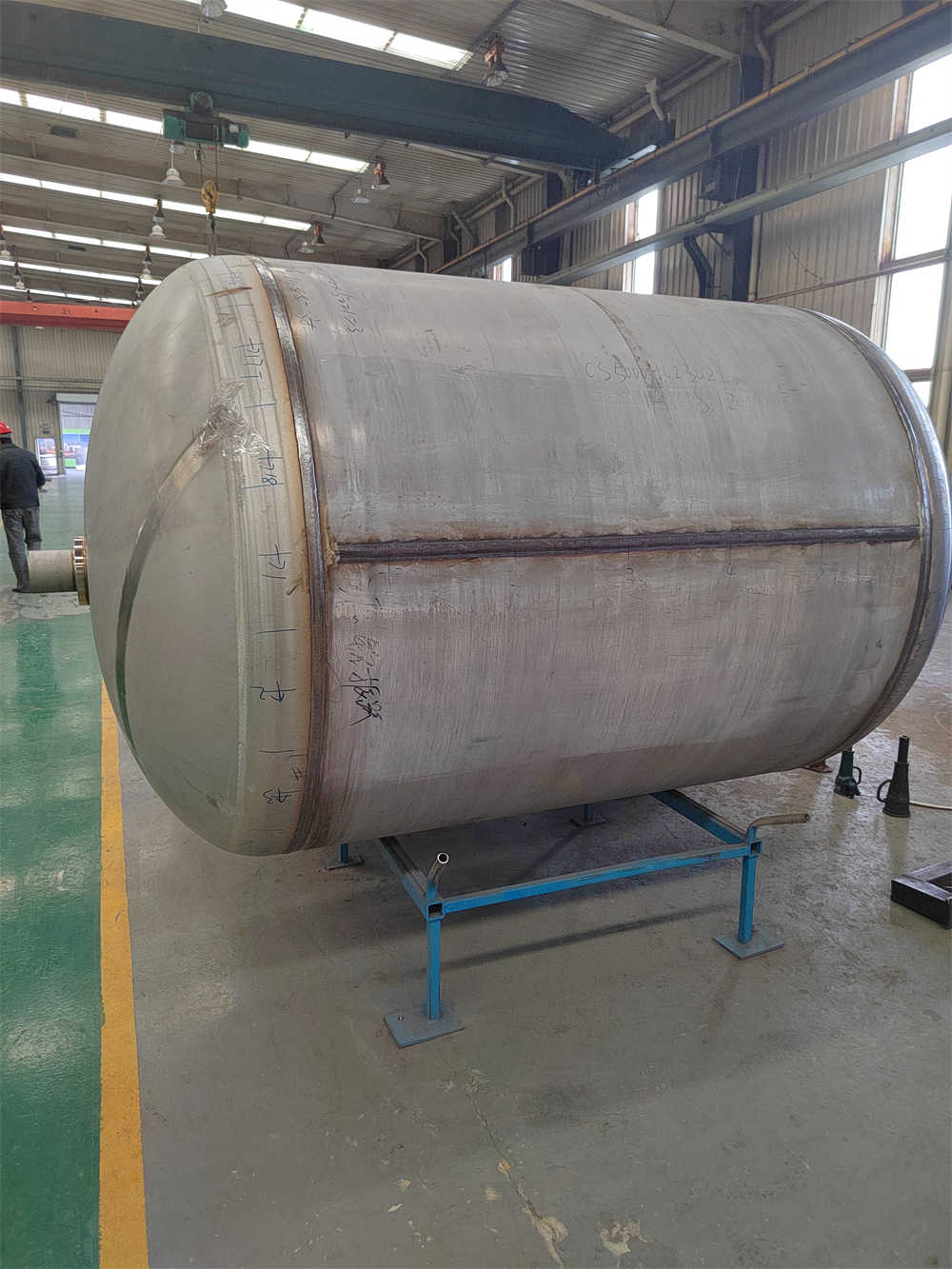

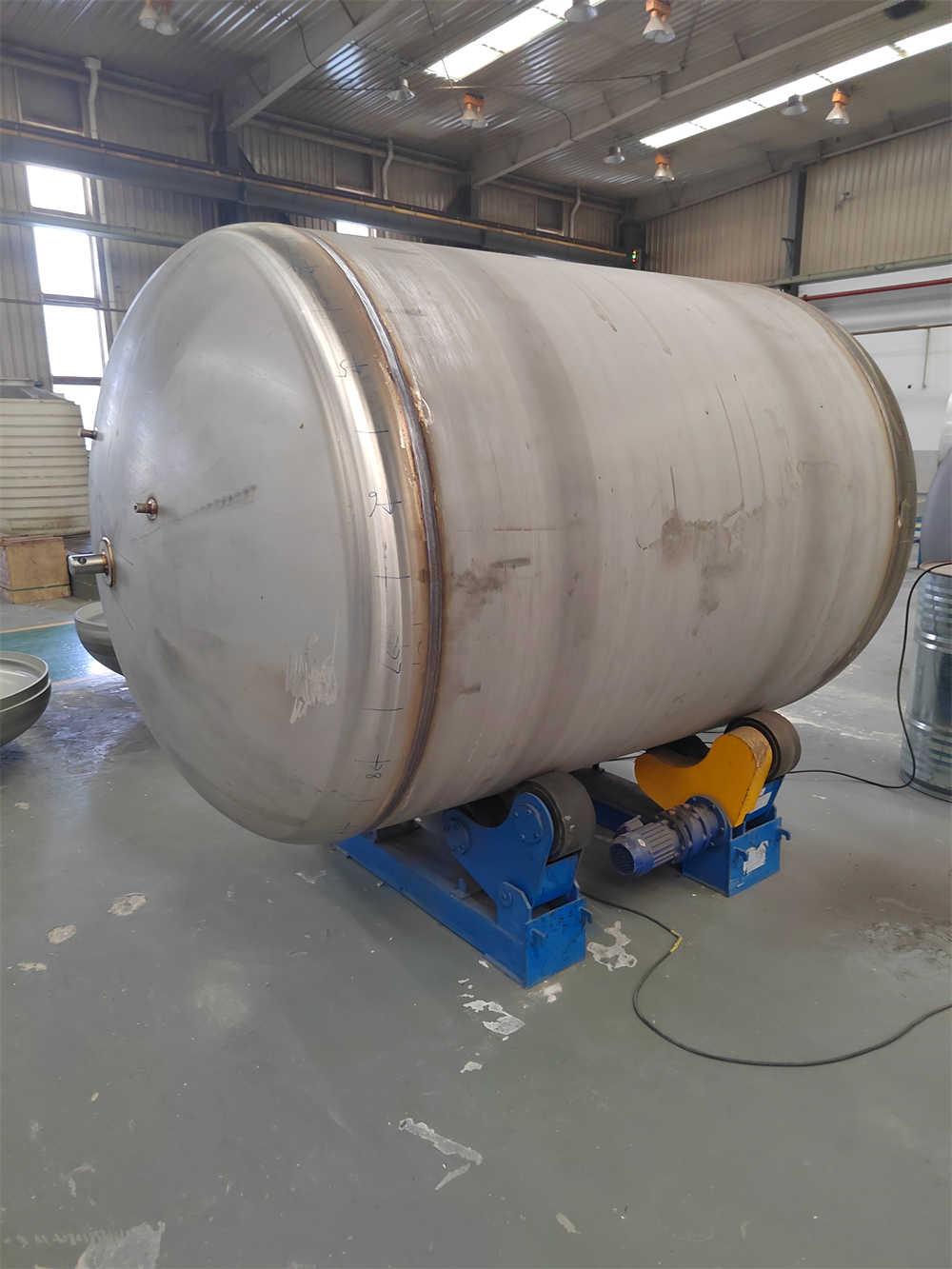

Inner pressure vessel A vessel usually made of austenitic stainless steel or other materials that have favorable strength characteristics when exposed to cryogenic temperatures.
Insulation
Heat insulation is provided by a filling in the chamber between the two vessels using insulating material and a high vacuum. It includes absorbent material for greater vacuum stability. The effective thermal insulation minimizes product losses and enables lengthy storage times of low temperature liquefied gases.

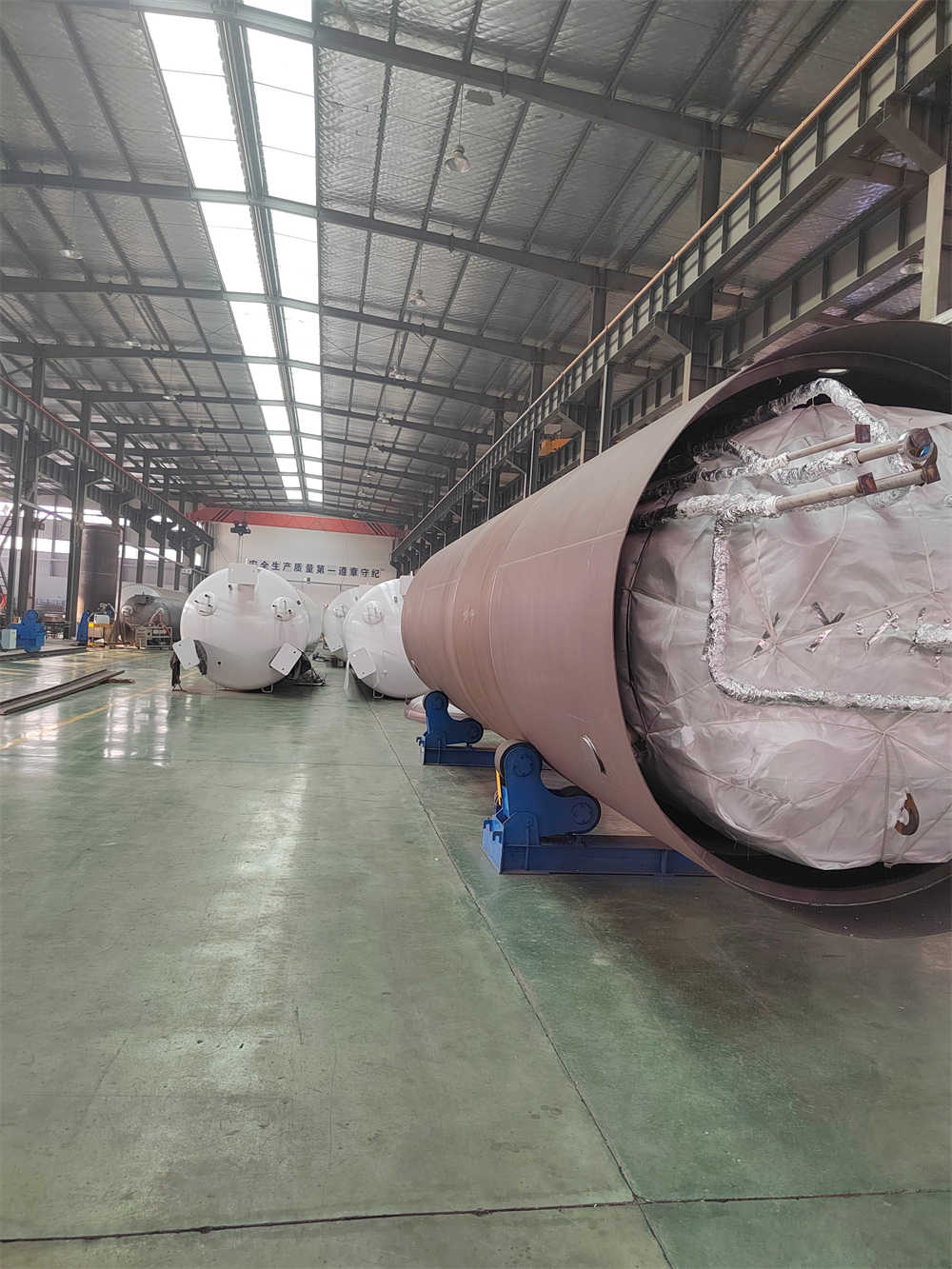

Outer vessel A vessel made of carbon steel or stainless steel. Under normal operating conditions, this vessel retains the insulation around the inner pressure vessel, and can also maintain a vacuum around the inner vessel. Typically, the outer vessel is not exposed to cryogenic temperature.
Storage tank is for liquefied gas under pressure, at cryogenic temperatures, for products, such as LNG, N2, O2, Ar, CO2.
They consist of two vessels, one inside the other, with robust thermal insulation in the chamber between them. They are built in both a vertical (with legs or skirting ) and horizontal version(with support cradles and anchoring to the ground).
Design
According to ASME, GB150, GB18442 standards.
Inner pressure vessel A vessel usually made of austenitic stainless steel or other materials that have favorable strength characteristics when exposed to cryogenic temperatures.
Insulation
Heat insulation is provided by a filling in the chamber between the two vessels using insulating material and a high vacuum. It includes absorbent material for greater vacuum stability. The effective thermal insulation minimizes product losses and enables lengthy storage times of low temperature liquefied gases.
Outer vessel A vessel made of carbon steel or stainless steel. Under normal operating conditions, this vessel retains the insulation around the inner pressure vessel, and can also maintain a vacuum around the inner vessel. Typically, the outer vessel is not exposed to cryogenic temperature.
Specification
Design Code | GB/ASME | ||||||||||||||
VOLUME | DIMENSION | Tank weight | PRESSURE | GAS DELIVERY | PAYLOAD | ||||||||||
(KGS) | |||||||||||||||
(m3) | (L*W*H) | （KG） | (MPa) | (Nm3/h) | LIN / LN2 | LOX / L02 | LAR | LNG | |||||||
10 | 2350*2300*6050 | 4635 | 1 | 700 | 8100 | 11410 | 13940 | 3780 | |||||||
4895 | 1.6 | ||||||||||||||
6180 | 3.5 | ||||||||||||||
15 | 2350*2300*8500 | 6215 | 1 | 700 | 12150 | 17115 | 20910 | 5670 | |||||||
6550 | 1.6 | ||||||||||||||
8425 | 3.5 | ||||||||||||||
20 | 2750*2700*8150 | 7200 | 1 | 1400 | 16200 | 22820 | 27880 | 7560 | |||||||
7920 | 1.6 | ||||||||||||||
30 | 2750*2700*10500 | 10100 | 1 | 1400 | 24300 | 34230 | 41820 | 11340 | |||||||
14000 | 1.6 | ||||||||||||||
50 | 3300*3250*12000 | 15940 | 1 | 2100 | 40400 | 57050 | 69800 | 18900 | |||||||
18200 | 1.6 | ||||||||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
