Horizontal Cryogenic Liquid CO2 O2 N2 Argon Storage tank for Cylinder Filling Station GB or ASME Standard
Product descriptions from the supplierProduct DescriptionVacuum insulated cryogenic tank (horizontal): Vacuum powder insulation liquid cryogenic storage tank is used for storage and supply of cryogenic liquid such as e liquid oxygen, liquid nitrogen,liquid argon and liquid carbon dioxide.It has adva......
Product descriptions from the supplier
Product Description

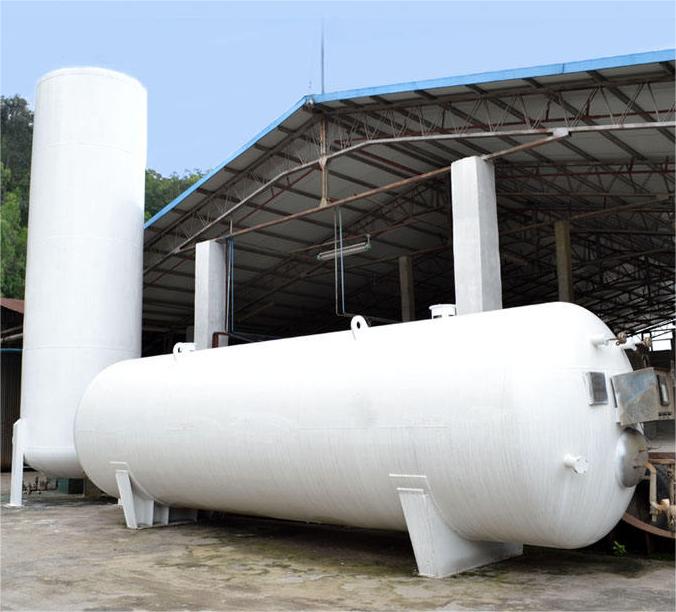

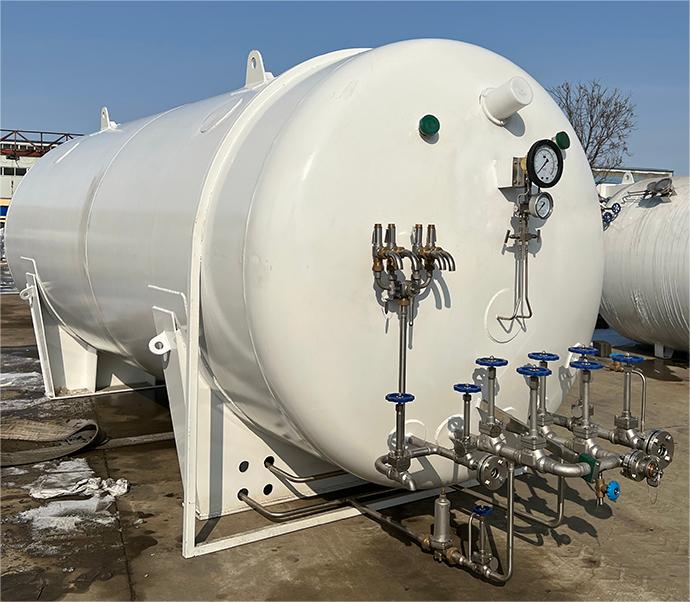

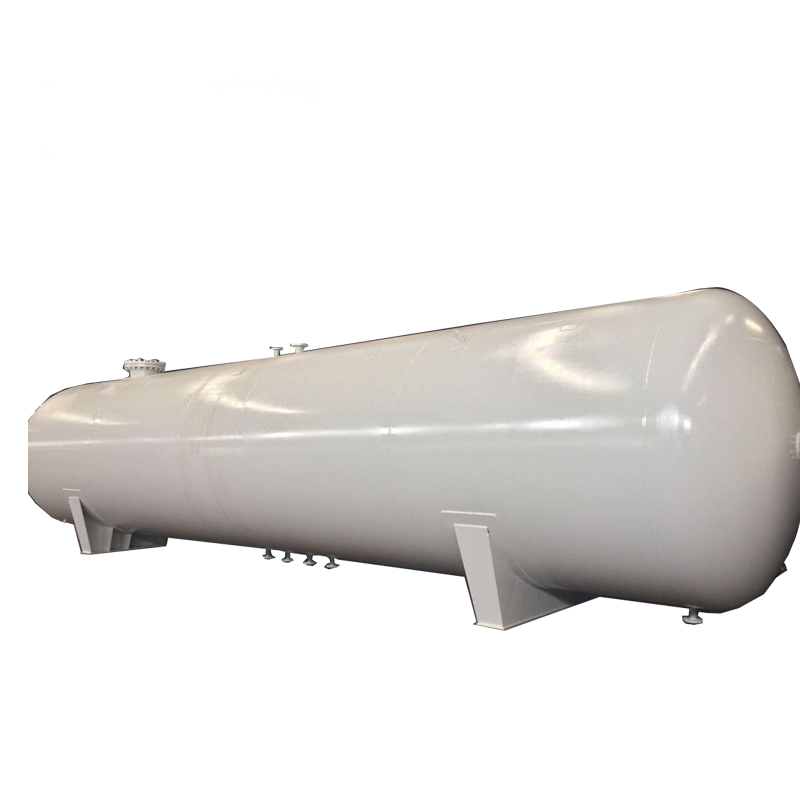

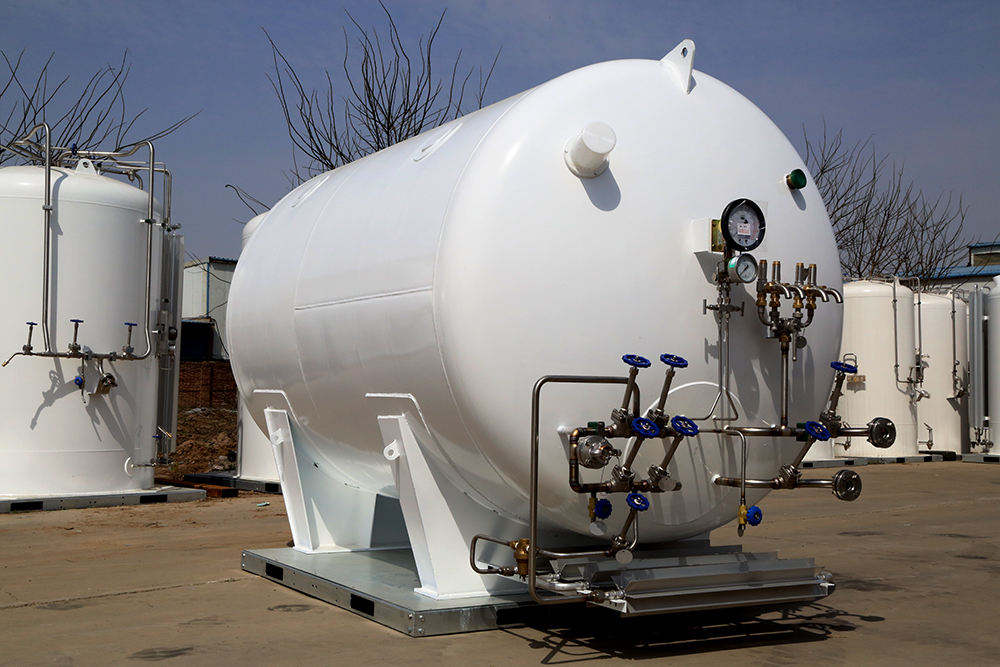

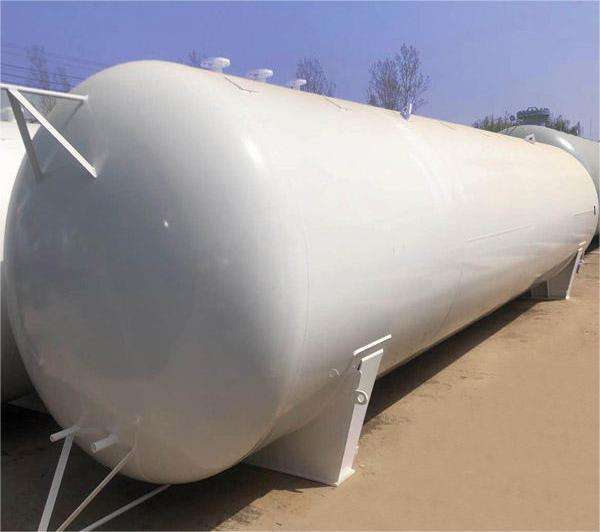

Vacuum insulated cryogenic tank (horizontal):
Vacuum powder insulation liquid cryogenic storage tank is used for storage and supply of cryogenic liquid such as e liquid oxygen, liquid nitrogen,liquid argon and liquid carbon dioxide.
It has advantages of area-saving, safe, reliable and convenient maintenance, etc, and has been widely used in Industry gas,
chemical, mechanical, metallurgy, electronics, medical, glass, mining, nuclear power and other industries.
The cryogenic tank can be connected with the exterior vaporizer and cryogenic pump.
Vacuum powder insulation liquid cryogenic storage tank is used for storage and supply of cryogenic liquid such as e liquid oxygen, liquid nitrogen,liquid argon and liquid carbon dioxide.
It has advantages of area-saving, safe, reliable and convenient maintenance, etc, and has been widely used in Industry gas,
chemical, mechanical, metallurgy, electronics, medical, glass, mining, nuclear power and other industries.
The cryogenic tank can be connected with the exterior vaporizer and cryogenic pump.
It can also be designed and manufactured according to ASME, GB150, GB18442 standards and also users' requirements.
Specification
Horizontal Storage Tank Parameter | ||||||||||||||||||
Volume | Work Pressure (MPa) | Liquid Gases Weight (KG) | Net Weight (KG) | Inner vessel | Outer vessel | Overall Dimensions(mm) | ||||||||||||
LO2 | LN2 | LAR | LNG | |||||||||||||||
3 | ≤0.80 | 3237 | 2300 | 4004 | 1047 | 1672 | SS30408 | SS30408/Q345R | 3350*1920*1700 | |||||||||
≤1.60 | 1673 | |||||||||||||||||
≤2.10 | 1812 | |||||||||||||||||
≤3.30 | 2097 | |||||||||||||||||
4.8 | ≤0.80 | 4925 | 3499 | 6091 | 1917 | 2503 | SS30408 | SS30408/Q345R | 3570*2440*2112 | |||||||||
≤1.60 | 2595 | |||||||||||||||||
≤2.10 | 2815 | |||||||||||||||||
≤3.30 | 2944 | |||||||||||||||||
10 | ≤0.80 | 10818 | 7686 | 13380 | 3834 | 4112 | SS30408 | SS30408/Q345R | 6080*2362*2200 | |||||||||
≤1.60 | 4203 | |||||||||||||||||
≤2.10 | 4679 | |||||||||||||||||
≤3.30 | 5634 | |||||||||||||||||
20 | ≤0.80 | 21660 | 15390 | 26790 | 7668 | 5238 | SS30408 | SS30408/Q345R | 10495*2362*2200 | |||||||||
≤1.60 | 5329 | |||||||||||||||||
≤2.10 | 6182 | |||||||||||||||||
≤3.30 | 7894 | |||||||||||||||||
30 | ≤0.80 | 32490 | 23085 | 40185 | 11502 | 9385 | SS30408 | SS30408/Q345R | 12300*3000*2600 | |||||||||
≤1.60 | 11921 | |||||||||||||||||
≤2.10 | 12936 | |||||||||||||||||
50 | ≤0.80 | 54150 | 38475 | 66975 | 19170 | 16396 | SS30408 | SS30408/Q345R | 11600*3500*3200 | |||||||||
≤1.60 | 19587 | |||||||||||||||||
60 | ≤0.80 | 64980 | 46170 | 80370 | 23004 | 18171 | SS30408 | SS30408/Q345R | 14300*3500*3200 | |||||||||
≤1.59 | 21546 | |||||||||||||||||
80 | ≤0.80 | 87107 | 61892 | 107738 | 30672 | 26626 | SS30408 | SS30408/Q345R | 133830*4000*3700 | |||||||||
≤1.59 | 28460 | |||||||||||||||||
100 | ≤0.80 | 104500 | 76950 | 133950 | 38340 | 32300 | SS30408 | SS30408/Q345R | 16600*4000*3700 | |||||||||
≤1.59 | 34551 | |||||||||||||||||
Note:The above technical parameters may be changed without prior notice due to modification and development.If there is any change,please refer to the confirmed drawing | ||||||||||||||||||

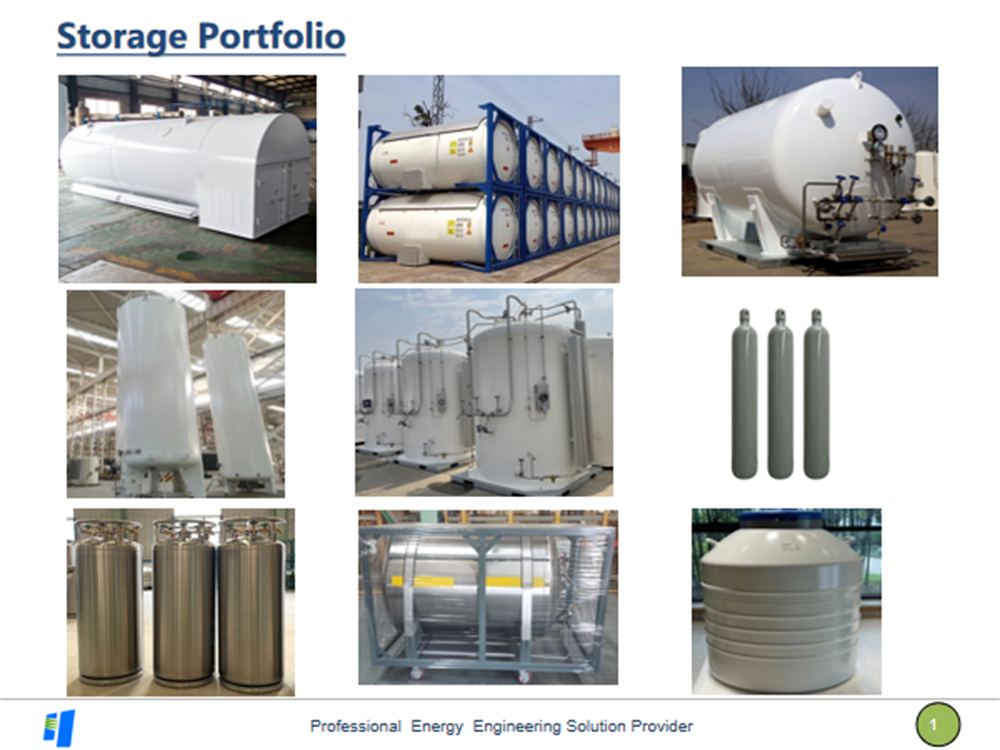

Recommend Products
Manufacturing Technique
Our Advantages

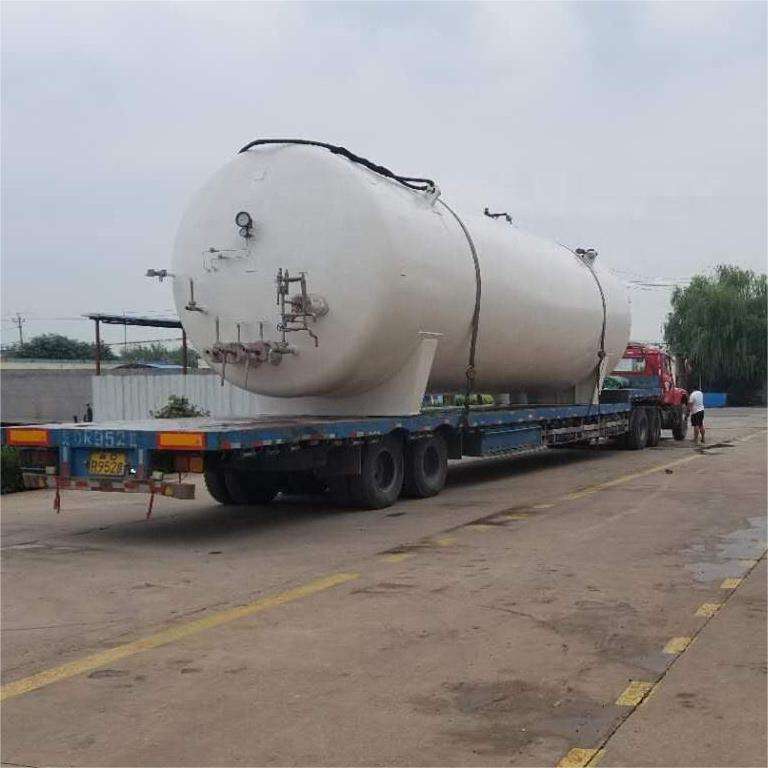

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
