175L/195L/210L/500L Stainless Steel Liquid Nitrogen Dewar Storage tank
Product descriptions from the supplierProduct DescriptionThe self-pressurized liquid nitrogen tank uses a small amount of liquid nitrogen in the tank to generate pressure, so that the container can automatically discharge liquid nitrogen, so as to supplement liquid nitrogen for other containers.It i......
Product descriptions from the supplier
Product Description
The self-pressurized liquid nitrogen tank uses a small amount of liquid nitrogen in the tank to generate pressure, so that the container can automatically discharge liquid nitrogen, so as to supplement liquid nitrogen for other containers.It is mainly used for transportation and storage of liquid media, and can also be used as a cold source for other refrigeration devices. It can be equipped with liquid nitrogen tank monitoring terminal and monitoring software, which can realize remote transmission of liquid nitrogen level pressure and other data, realize remote alarm of low liquid level and over pressure, and can also manually remote pressurization and control replenishment.
Liquid nitrogen supplement series is mainly used for the storage of liquid nitrogen in the central laboratory. It is a new

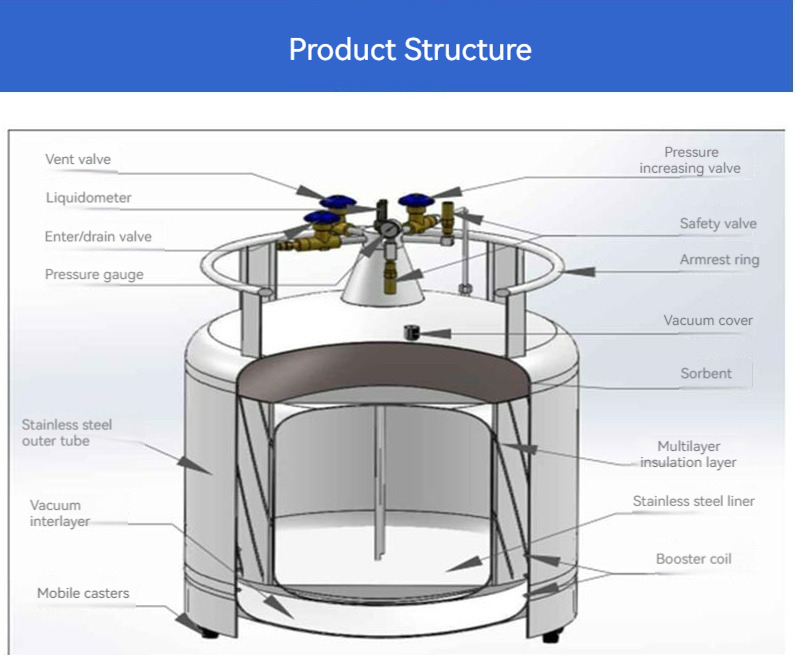

high-performance low-temperature liquid nitrogen medium storage container, which uses a small amount of liquefied gas in the container to generate pressure, so that the container can automatically discharge liquid, so as to supplement the liquid for other containers. The stainless steel design structure can apply to the harsh use environment and reduce the evaporation loss rate. This series of products are fully equipped with a booster valve, drain valve, drain valve, pressure gauge, 200 liters and above the container also added bursting disc and muffler and other structures. In addition, all models in the series are equipped with four mobile universal casters to facilitate the use and movement of containers in different locations. Mainly suitable for laboratory users and chemical enterprise users for liquid nitrogen storage or automatic replenishment of liquid nitrogen.
Product characteristics：
1. All welds of the product pass the leak detection by helium mass spectrometer:
2. Unique neck design and patented vacuum technology ensure extremely low evaporation loss rate
3. Unique polishing technology, beautiful appearance;
4. Ensure product safetywith double safety valve;
5. Protective operation ring;
6. With a sound safety structure;
7. Easy to move with casters;
Liquid nitrogen supplement series is mainly used for the storage of liquid nitrogen in the central laboratory. It is a new
high-performance low-temperature liquid nitrogen medium storage container, which uses a small amount of liquefied gas in the container to generate pressure, so that the container can automatically discharge liquid, so as to supplement the liquid for other containers. The stainless steel design structure can apply to the harsh use environment and reduce the evaporation loss rate. This series of products are fully equipped with a booster valve, drain valve, drain valve, pressure gauge, 200 liters and above the container also added bursting disc and muffler and other structures. In addition, all models in the series are equipped with four mobile universal casters to facilitate the use and movement of containers in different locations. Mainly suitable for laboratory users and chemical enterprise users for liquid nitrogen storage or automatic replenishment of liquid nitrogen.
Product characteristics：
1. All welds of the product pass the leak detection by helium mass spectrometer:
2. Unique neck design and patented vacuum technology ensure extremely low evaporation loss rate
3. Unique polishing technology, beautiful appearance;
4. Ensure product safetywith double safety valve;
5. Protective operation ring;
6. With a sound safety structure;
7. Easy to move with casters;
Specification
Product Model | DPL-100 | DPL-175 | DPL-195 | DPL-450 | ||
Diameter*Height (mm) | 454*1247 | 508*1500 | 508*1620 | 750*850*1900 | ||
Working Pressure (MPa) | 1.33 | 1.4 | 1.4 | 1.4 | ||
2.01 | 2.01 | 3.17 | ||||
2.88 | 2.88 | |||||
Pressure Relief Valve (MPa) | 1.59 | 1.59 | 1.59 | 1.59 | ||
2.41 | 2.41 | 3.45 | ||||
3.45 | 3.45 | |||||
Inner Container Bursting Disc (MPa) | 2.6 | 2.6 | 2.6 | 2.6 | ||
3.62 | 3.62 | 5.7 | ||||
5.17 | 5.17 | |||||
Maximum Liquid Capacity (L) | 100 | 175 | 195 | 450 | ||
Usable Liquid Capacity (L) | 95 | 166 | 185 | 427 | ||
Normal Evaporation Rate | ≤2.1% | ≤2.1% | ≤2.1% | ≤1.8% | ||
Tare Weight (Kg) | 70 | 110 | 117 | 289 | ||
Filling Capacity | Oxygen(kg) | 100 | 172 | 191 | 487 | |
Nitrogen(Kg) | 73 | 121 | 135 | 346 | ||
Argon(Kg) | 127 | 208 | 233 | 602 | ||
Natural Gas (Kg) | ----- | 70.1 | 76 | 176 | ||
CO2(Kg) | ----- | 138 | 154 | 357 | ||
N2O(Kg) | ------ | 191 | 213 | 492 | ||

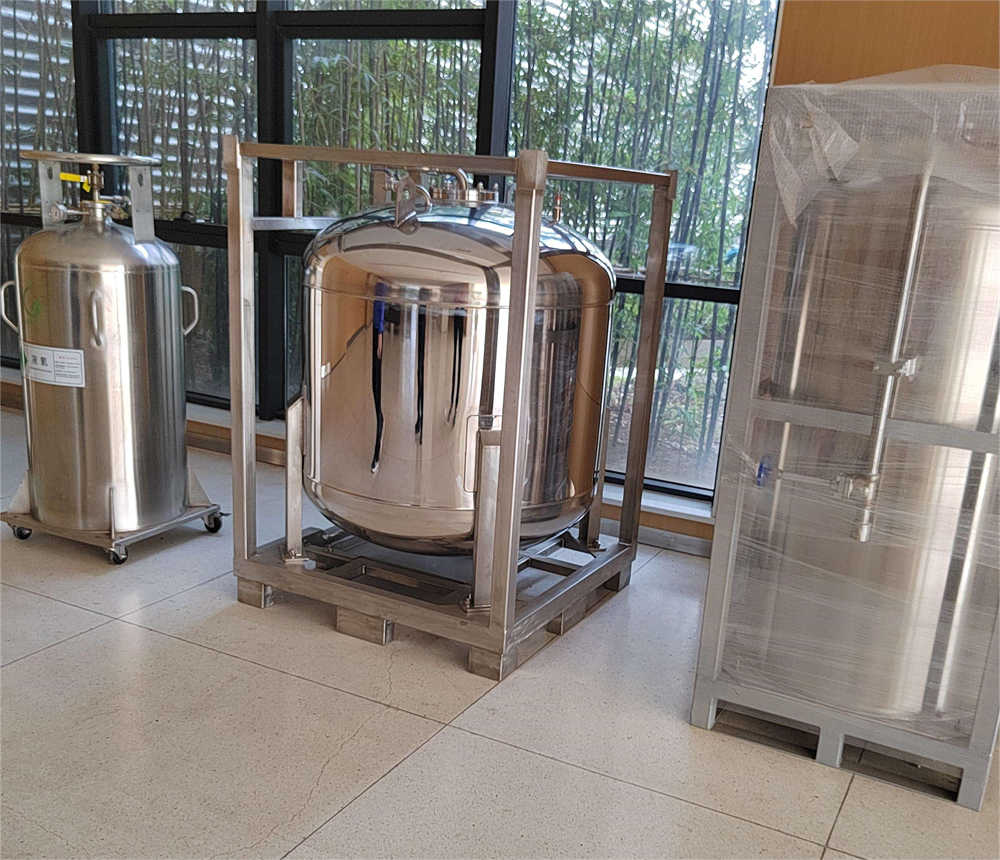

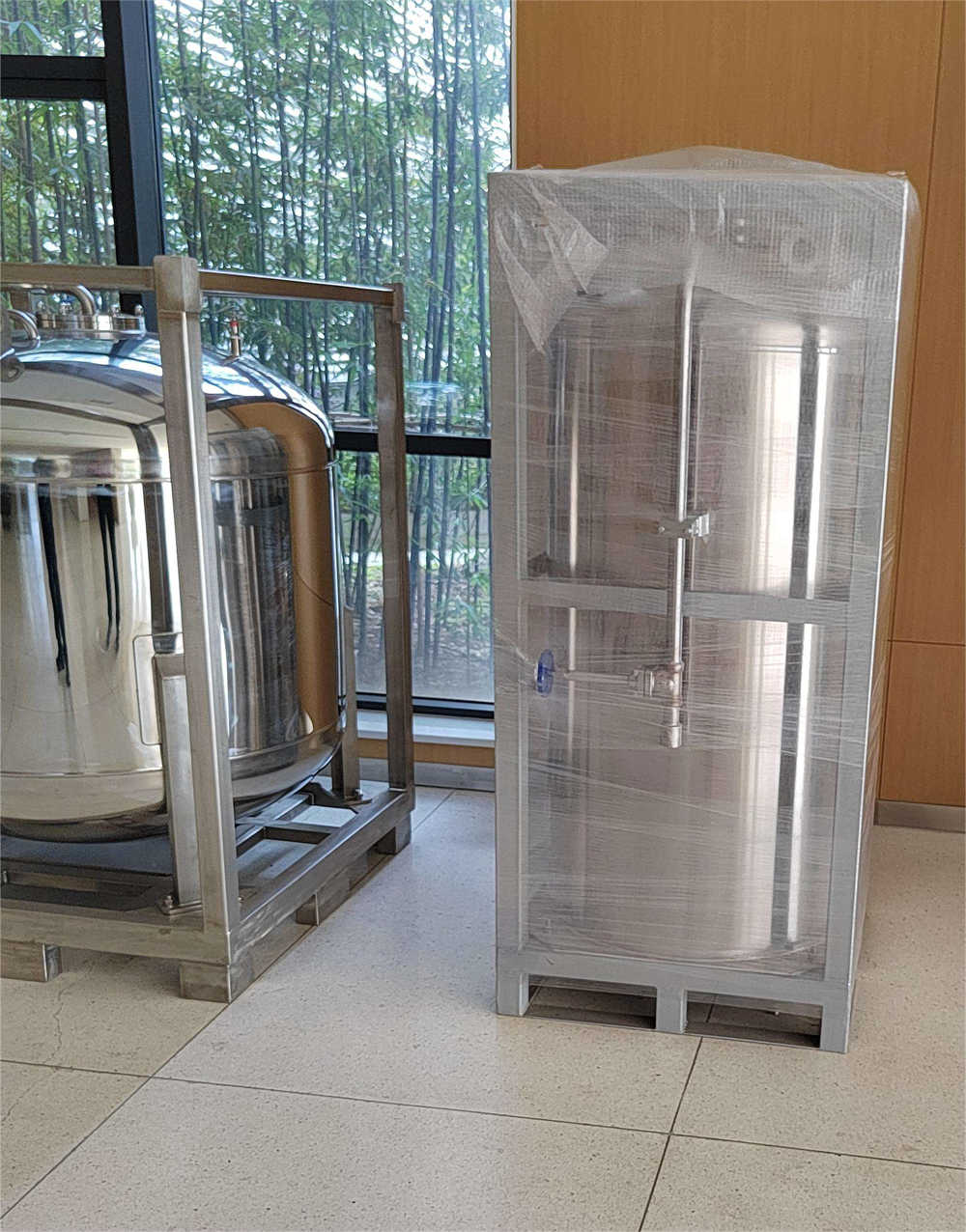

Packing & Delivery
1.Are you a factory? Yes, we are a factory in the field of gas equipment .

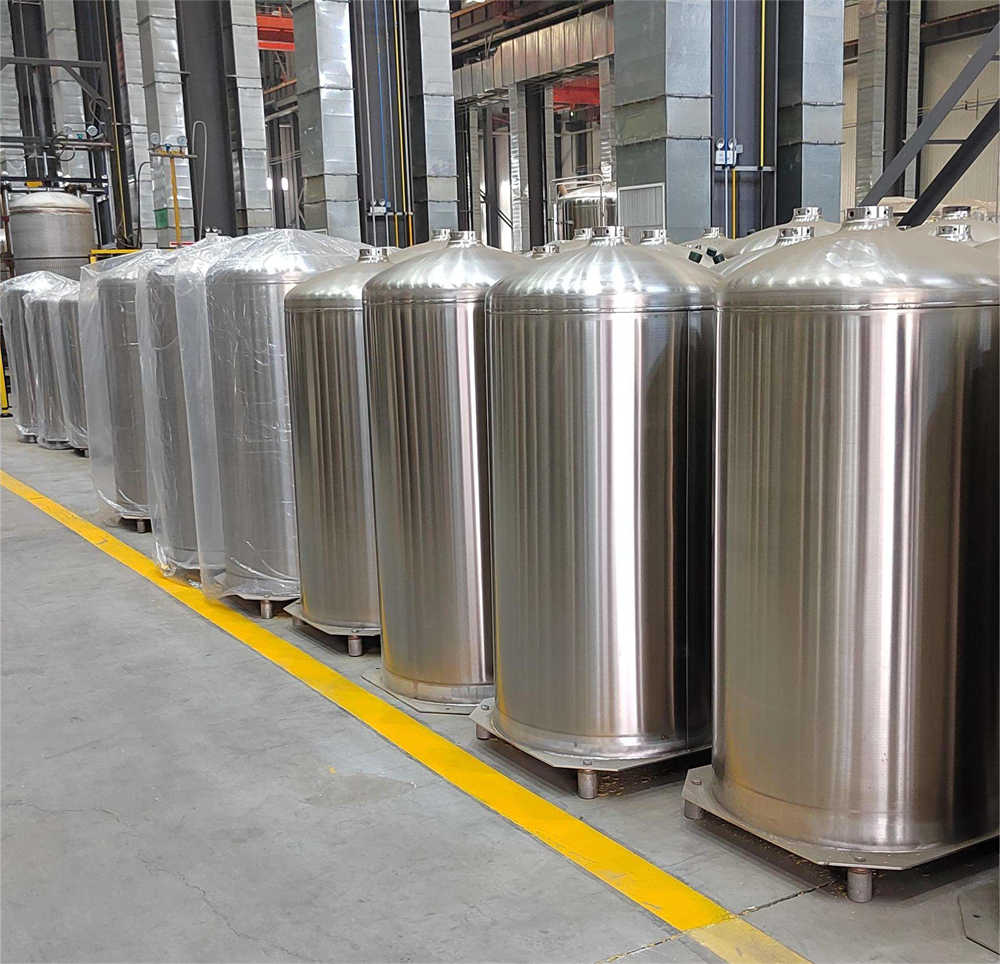

The manufacturing workshop with 15000m2 and storage place
Skilled manufacturing team for workshop and site Fabrication
Specialized workshops with advanced facilities.
2.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
3.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you
