Cryogenic Pipes Vacuum Piping Systems Stainless Steel Jacketed Pipe for Liquid Oxygen Argon Nitrogen LNG
Product descriptions from the supplierProduct DescriptionVacuum tube applicating industry: industrial gas, medicine, biology, electronics, aviation, automobiles, restaurants, beverages and other industries, transportation of liquid nitrogen (LIN), liquid argon (LAr), liquid oxygen (LOX), liquefied n......
Product descriptions from the supplier
Product Description
Vacuum tube applicating industry: industrial gas, medicine, biology, electronics, aviation, automobiles, restaurants, beverages and other industries, transportation of liquid nitrogen (LIN), liquid argon (LAr), liquid oxygen (LOX), liquefied natural gas (LNG).

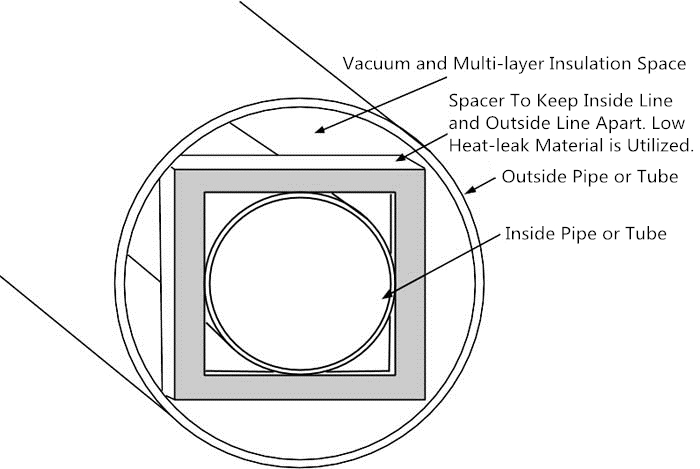

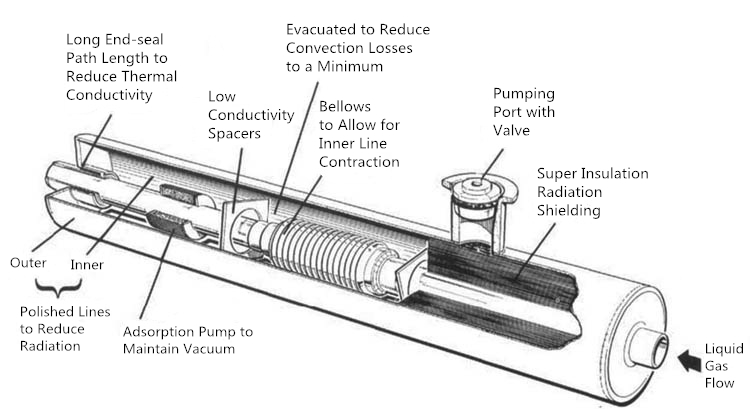

Vacuum tube by the inner tube, outer tube and multi-layer insulation materials, laminated multi-layer insulation material made of composite to reduce radiation heat transfer; and sandwich pumping into a high vacuum state to reduce convection heat transfer; Low thermal conductivity material isolation, in order to reduce the heat transfer of the solid, so as to control the cold loss of the inner tube to a minimum, fully meet the low temperature liquids (LOX, LIN, LAr, LH2, LHe, LNG) and other long-distance transport, Vacuum Multilayer Adiabatic Cryogenic Liquid Conveying
Characteristics of the vacuum tube
The inner tube at liquid nitrogen temperature, the contraction rate of 0.3%, for the hard tube, in the inner tube or outer tube
must also be set on the compensator, in the pipeline directly installed high vacuum multilayer insulated low-temperature globe valve, check valve, emergency Shut-off valves and safety systems. Plug-in vacuum connector junction leakage heat is small, no frost, condensation, special needs of customers with special structural forms of vacuum insulation pipe system. Vacuum tube making material All made of (SUS304) stainless steel, and the use of the current special advanced multi-layer insulation materials and gas adsorbents, low thermal conductivity of the support.
Vacuum tube installation
It is easy to install and maintain, and it can be installed by professionals. It can shorten the installation time, save the works and reduce the costs.
The inner tube at liquid nitrogen temperature, the contraction rate of 0.3%, for the hard tube, in the inner tube or outer tube
must also be set on the compensator, in the pipeline directly installed high vacuum multilayer insulated low-temperature globe valve, check valve, emergency Shut-off valves and safety systems. Plug-in vacuum connector junction leakage heat is small, no frost, condensation, special needs of customers with special structural forms of vacuum insulation pipe system. Vacuum tube making material All made of (SUS304) stainless steel, and the use of the current special advanced multi-layer insulation materials and gas adsorbents, low thermal conductivity of the support.
Vacuum tube installation
It is easy to install and maintain, and it can be installed by professionals. It can shorten the installation time, save the works and reduce the costs.

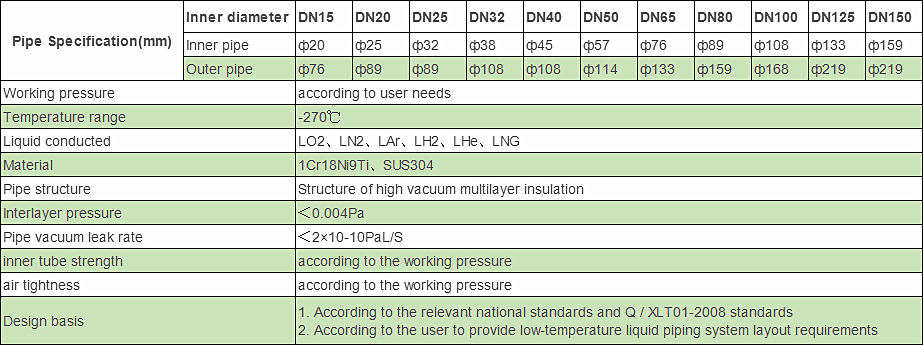

Specification
Max Working Pressure(MPa) | 3.2 MPa |
Dimension(L*W*H) | customization |
Supply Ability | 2000 Meter/Meters per month |
Liquid conducted | Oxygen Argon Nitrogen LNG |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
