150L-450L Vertical Liquid Oxygen and Nitrogen Dewar Cylinder Cryogenic Tank

Product descriptions from the supplierProduct DescriptionModel NO.: DPL700-450-2.88Condition: NewNominal Capacity: 450LEffective Capacity: 427LMax Filling Weight(Lox/Lin/Lar): 444kg/310kg/543/427kgWorking Pressure: 2.88MPaThe Opeing Pressure of Safety Value: 3.45MPaThe Burst Pressure of Rupture Disk......

Send Inquiry

Product Description

Product descriptions from the supplier

Product Description

Model NO.: DPL700-450-2.88

Condition: New

Nominal Capacity: 450L

Effective Capacity: 427L

Max Filling Weight(Lox/Lin/Lar): 444kg/310kg/543/427kg

Working Pressure: 2.88MPa

The Opeing Pressure of Safety Value: 3.45MPa

The Burst Pressure of Rupture Disk: 5.17MPa

Weight of Empty Cylinder: 360kg

Cylinder Dimension: 766X1605

Transport Package: Wrapped by PVC

Specification: GB/ASME/EN

HS Code: 7311009000

Production Capacity: 1000sets/Month

Product Description

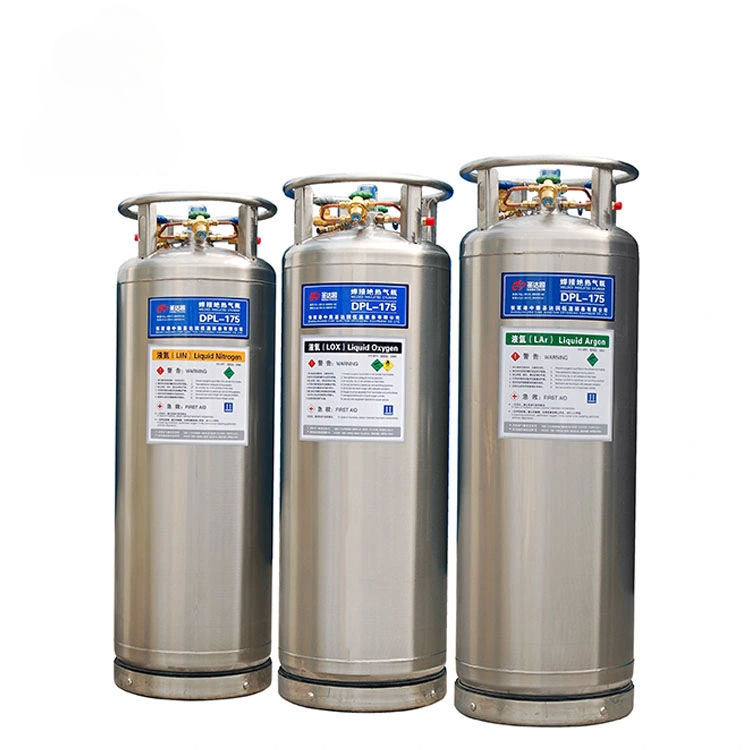

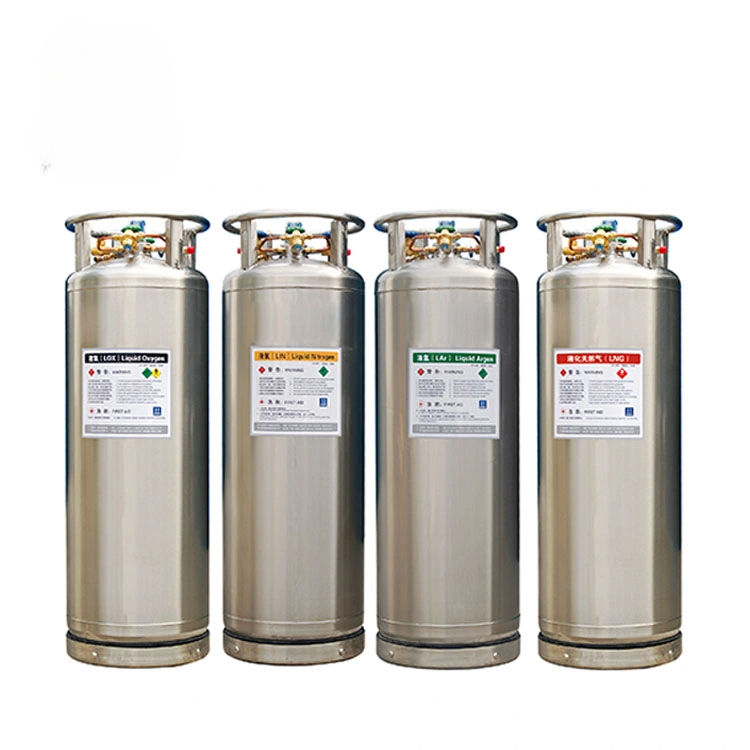

LOX/LIN/LAr/LCo2 Cylinder Dewar Tank

Model		DPL450-175-1.37	DPL450-175-2.3	DPL450-195-1.37	DPL450-195-2.3	DPL450-210-1.37	DPL450-210-2.3	DPL450-210-3.0
Nominal volume(L)		175	175	195	195	210	210	210
Effective capacity(L)		160	160	177	177	191	191	191
Dimension(diameter*height)		Φ510*1557	Φ510*1557	Φ510*1673	Φ510*1673	Φ510*1767	Φ510*1673	Φ510*1673
Working pressure (Mpa)		1.37	2.3	1.37	2.3	1.37	2.3	3
Safety valve open pressure(Mpa)		1.59	2.41	1.59	2.41	1.59	2.41	3.45
Bursting disk open pressure(Mpa)		2.41	3.6	2.41	3.6	2.41	3.6	5.17
Evaporation rate(Lin)(%/d)		<2.1	<2.1	<2.0	<2.0	<2.0	<2.0	<2.0
Empty weight(kg)		≈130	≈142	≈133	≈152	≈131	≈165	≈165
	LO2	≈182	≈182	≈202	≈202	≈218	≈218	≈218
Max filling weight	LN2	≈129	≈129	≈142	≈142	≈154	≈154	≈154
(kg)	LAr	≈224	≈224	≈248	≈248	≈268	≈268	≈268
	LNG	≈68	≈68	≈75	≈75	≈75	≈75	≈75
	LCO2	---	≈188	---	≈209	---	≈225	≈225
Level gauge		Floating level	Floating level	Floating level	Floating level	Floating level	Floating level	Floating level
Surface treatment		polish	polish	polish	polish	polish	polish	polish
Base type		Rubber base	Rubber base	Rubber base	Rubber base	Rubber base	Rubber base	Rubber base

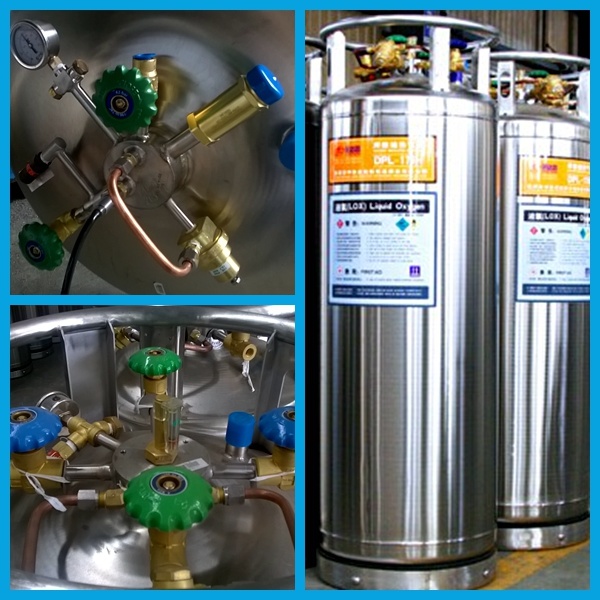

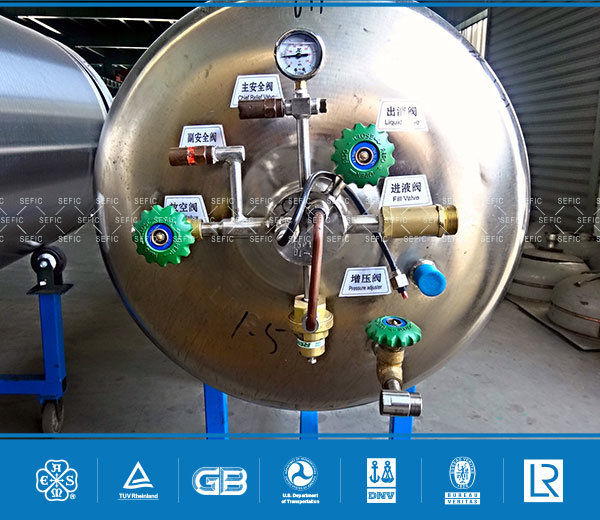

Liquid Gas Cylinder Introduction:
Liquid cylinders are storage vessels that are specially designed and manufactured to accommodate the super cooled materials that are utilized in a wide variety of cryogenic applications. As these materials often exist in a gaseous state under normal atmospheric pressure and at room temperature, they are commonly referred to as 'liquefied gases' when pressure and temperature conditions have lowered them from the gaseous to the liquid state. Cryogenics itself is the study of the nature and uses of materials that have been cooled to temperatures far below those encountered in nature or in normal working conditions. Though it is a continuously expanding field of applied science, applications for such super cooled or cryogenic materials have already been developed in the aerospace, medical, manufacturing, and computing fields.

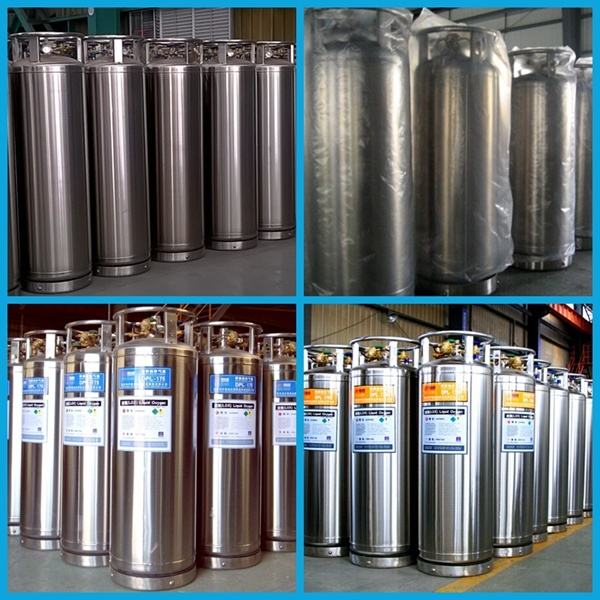

Dewar Manufacturing plant:

150L-450L Vertical Liquid Oxygen and Nitrogen Dewar Cylinder Cryogenic Tank

Frequently Asked Questions:
Q1. What is the capacity of this liquid gas cylinder?
A1. The capacity of this liquid gas cylinder is 175L-450L.
Q2. What is the delivery time of this liquid gas cylidner?
A2. The delivery time of this liquid gas cylinder is 30 DAYS.
Q3. What kind of payment mode do you usually use?
A3. We accept TT, 30% as deposit and 70% before delivery.
Q4. What kind of cetification of this liquid gas cylinder do provide?
A4. We can provide you the DOT, GOST and TUV certifications.
