High 100L 175L 195L 210L 410L 450L 490L Cryogenic Nitrogen Liquid Storage Tank

Product descriptions from the supplierProduct DescriptionCryogenic Dewar tankCryogenic Dewar tank is a kind of high-performance vacuum insulated tank, which is used to hold and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used ......

Send Inquiry

Product Description

Product descriptions from the supplier

Product Description

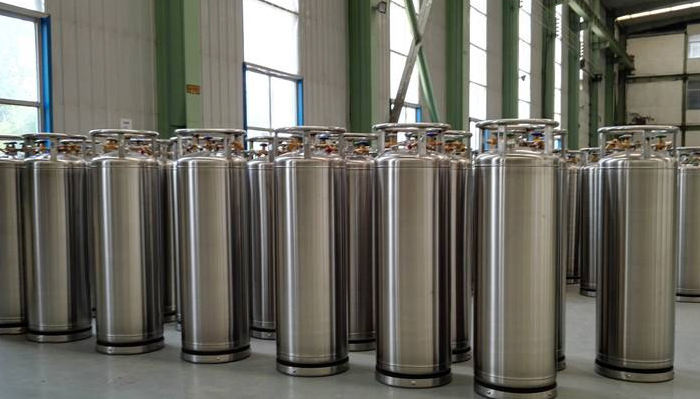

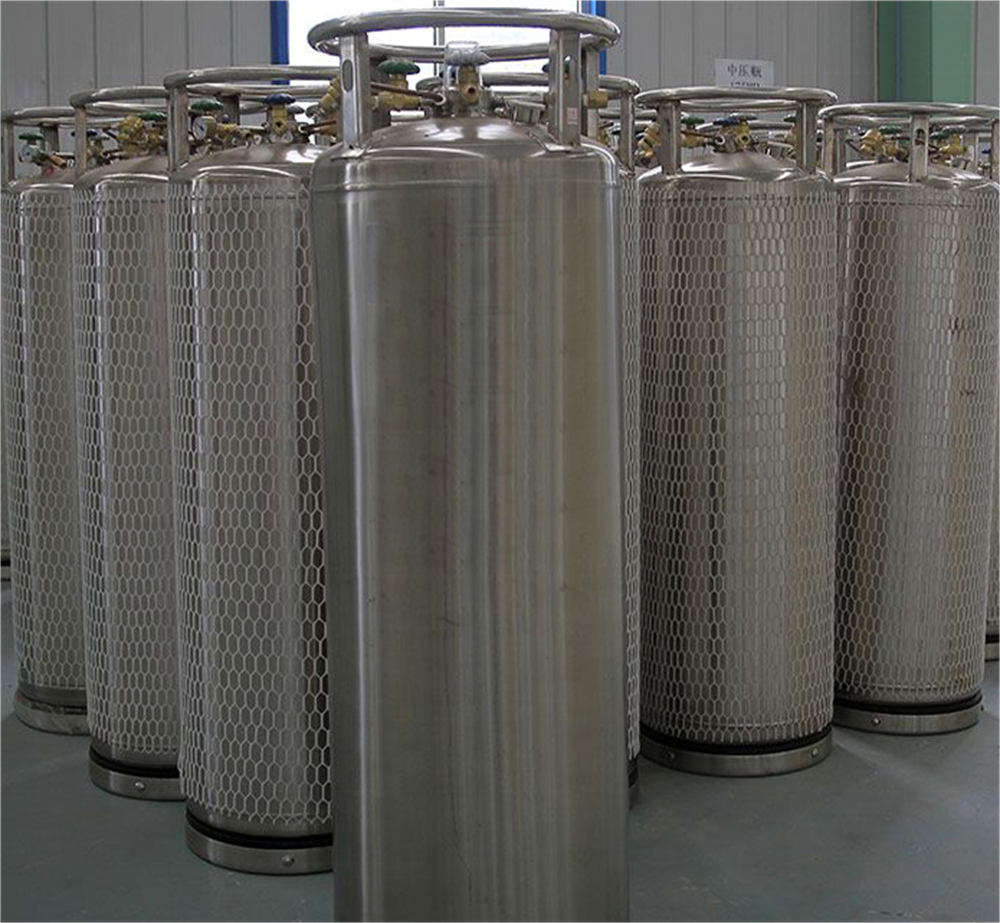

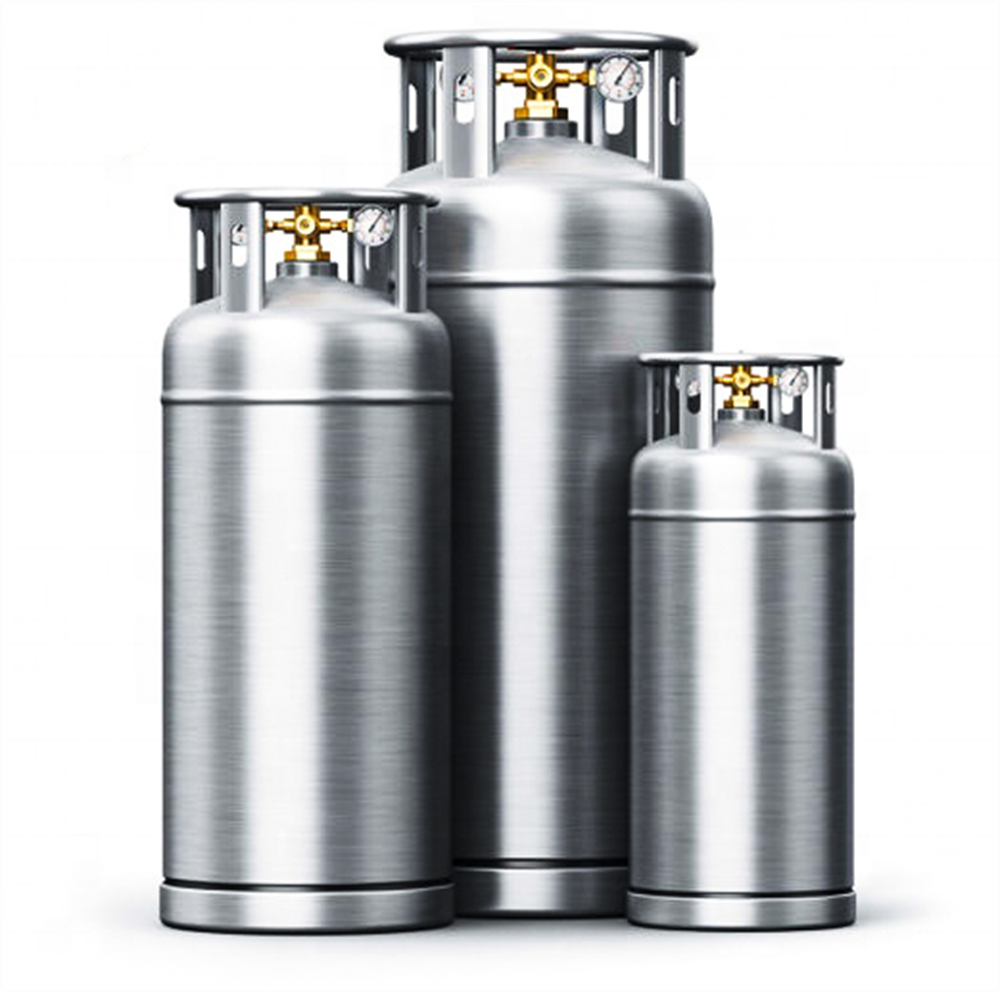

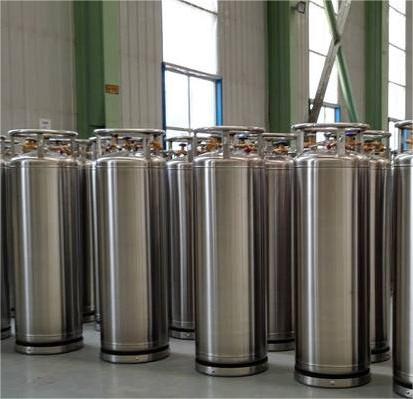

Cryogenic Dewar tank

Cryogenic Dewar tank is a kind of high-performance vacuum insulated tank, which is used to hold and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road transport of cryogenic liquid, and also can be used for on-site storage and delivery. Long shelf life, wide range of applications, can handle up to 9.2 cubic meters per hour of continuous flow with a delivery pressure of about 100psig (6.9bar/690Kpa).

Main Features
1.Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas

2.Adopted multi-layer insulation method to ensure the low evaporation rate.

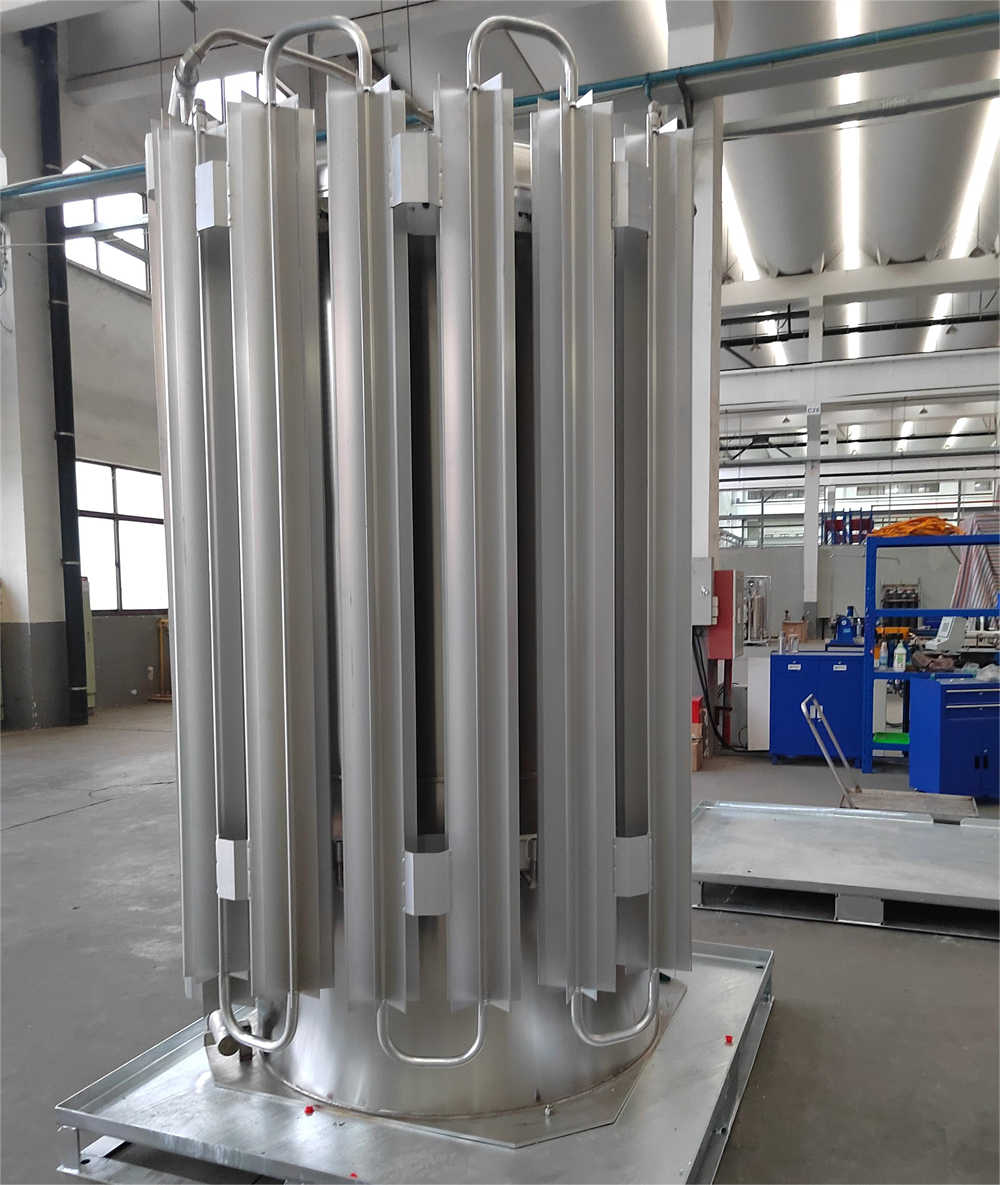

3.Inner vaporizer provides a 10Nm3/h stable continuous gas.

4.Solar installation use in the priority of gas-pressure and gas space.

5.Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)

6.Unique design of damping ring meets the needs of frequent transportation.

7.Suitable for electronics, research, chemical industry, welding, and LNG supply industries.

Specification

Product Model	HH-100	HH-175	HH-195	HH-210	HH-410	HH-450
Diameter*Height (mm)	454*1247	508*1500	508*1620	508*1707	7508501707	7508501900
Working Pressure (MPa)	1.33	1.4	1.4	1.4	1.4	1.4

				2.01	2.01	2.01	3.17	3.17

				2.88	2.88	2.88
Pressure Relief Valve (MPa)	1.59	1.59	1.59	1.59	1.59	1.59

				2.41	2.41	2.41	3.45	3.45

				3.45	3.45	3.45
Inner Container Bursting Disc (MPa)	2.6	2.6	2.6	2.6	2.6	2.6

				3.62	3.62	3.62	5.7	5.7

				5.17	5.17	5.17
Maximum Liquid Capacity (L)	100	175	195	210	410	450
Usable Liquid Capacity (L)	95	166	185	197	389	427
Normal Evaporation Rate	≤0.95%	≤0.95%	≤0.95%	≤0.95%	≤0.95%	≤0.95%
Tare Weight (Kg)	70	110	117	123	282	289
Oxygen(kg)	100	172	191	205	443	487
Nitrogen(Kg)	73	121	135	145	315	346
Argon(Kg)	127	208	233	250	548	602

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1.Are you a factory?

Yes, we are a factory in the field of gas equipment .
The manufacturing workshop with 15000m2 and storage place
Skilled manufacturing team for workshop and site Fabrication
Specialized workshops with advanced facilities.

2.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .

3.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .

4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
