KRIWAN INT369 KA 22A 420 Motor Protector Compressor protection Module Protector De Motor 40A 63A 230V Protector Do Motor

Raydafon's KRIWAN INT369 KA 22A 420 Motor Protector safeguards compressors and motors up to 63A and 230V, featuring reliable protection to prevent damage and downtime. Ideal for industrial users in HVAC and manufacturing, this module ensures peace of mind with advanced technology and durable design, outperforming competitors for enhanced efficiency and safety.

Send Inquiry

Product Description

Product descriptions from the supplier

Product Description

The world's compressor control and protection industry giant KRIWAN Germany began production of INT series compressor control protectors and PTC thermistors in 1966. The company has a long history and its products are well-known in the international market and are recognized as the best choice for controlling compressors. In Europe, KRIWAN's products are used on almost all compressors, with a market share of 90%.
The product has also been selected as the designated product by the world's major compressor manufacturers in the refrigeration industry, including YORK York, REFCOMP, Italy, Dorin Turin, frascold, BITZER, Germany Bock Blog Company, Taiwan Hanbell Hanzhong Company, etc.
Introduction:
It is used to monitor the compressor motor winding temperature, exhaust temperature, power phase sequence and phase loss fault in the refrigeration system.
It must be used together with the PTC thermistor to prevent the motor temperature and exhaust temperature from being too high.
It can monitor 1-9 series PTC thermistor values in the motor. If one or more PTC resistors are in high impedance state, the motor protector relay releases and self-locks.
Features:
1,The phase sequence monitoring function is enabled within 5S after power-on. Once the phase sequence is faulty, the relay switch is disconnected and self-locking.
2,After the motor starts 1S, the phase loss monitoring function works. Once the phase loss fault is detected, the motor is turned off; after 10S, the automatic reset is monitored again; if the phase loss fault is detected three times in 12 minutes, or 10 phase loss is detected in 24 hours. If the fault occurs, the protector is automatically locked.
3, If the PTC fault is detected multiple times, it will be self-locking. Phase sequence monitoring and phase loss monitoring are effective after power-on; once any fault is detected, the relay switch is opened and self-locking.
4,The power can be automatically unlocked after the power is turned off for 5 seconds.
5,This protector is not suitable for the inverter side.

Specification
Dual voltage power supply: 50 ~ 60HZ 3.0 V A; AC 208 ~ 415V ± 10%, AC 115 ~ 230V ± 10%, AC 24 ~ 48V ± 10%
* Storage Temperature: -30-70 ℃
* Temperature measurement circuit: PTC (DIN44081 / 082)
- The number of sensors: 1-9
-R25 ℃ Gross: <1.8 KΩ
-R Action: 4.50 KΩ ± 20%
-R Reset: 2.75 KΩ ± 20%
- Maximum lead length: <30m
* Motor monitoring voltage: 3AC 50 / 60HZ, 200-575V ± 10%
* Output relay: max AC 240V, max 2.5A, C300; min> 24V AC / DC,> 20mA.
* Life: about 108 times
* Degree of protection: IP00
* Connectivity: 6.3mm Blade
* Material: PA66, GF25
* Installation: screws or rails
* Size: 76.5 * 81.5 * 34.5

Our services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan

Specification

Place of Origin	Germany
Model Number	INT69 FSY

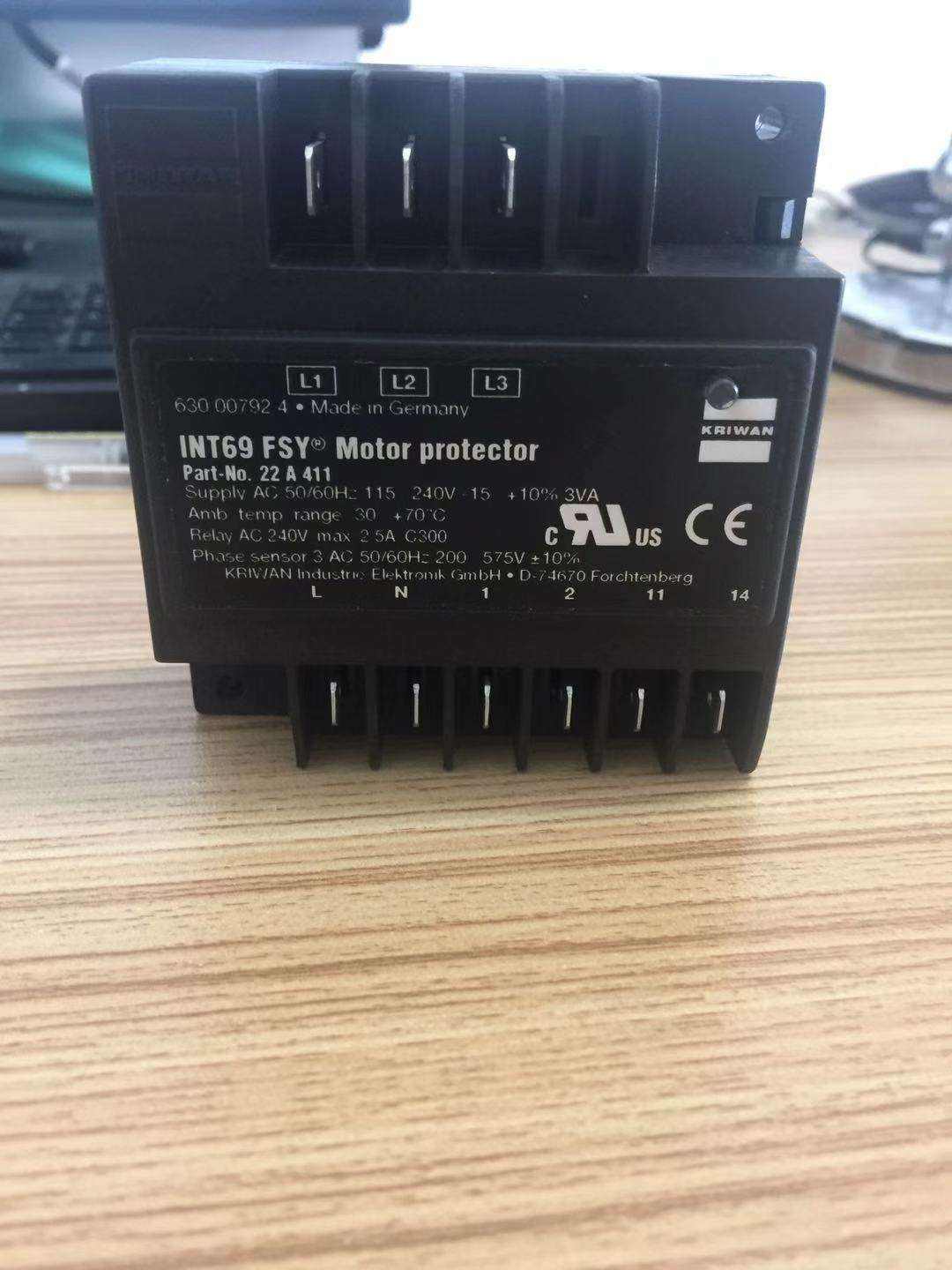

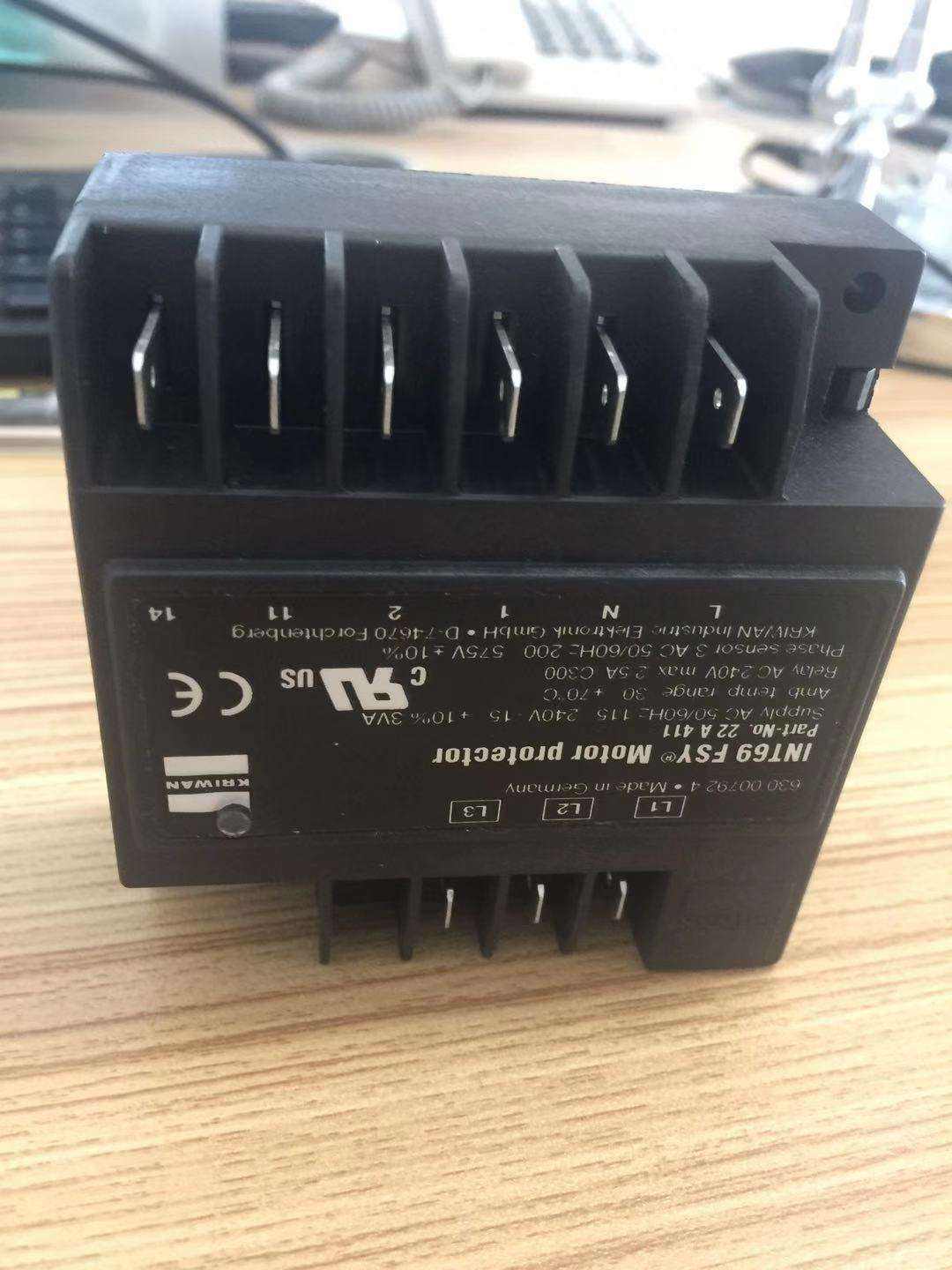

Product name	INT69FSY KRIWAN motor protector compressor protection module
Certificate	CE
