LOW TOTAL COST TURBO-AIR 2000 Centrifugal Compressor 100% Oil-free and Oil Contamination Air Compressor NX8000 TA6000
Product descriptions from the supplierProduct DescriptionAir purity is critical for many applications where even the smallest drop of oil can cause product spoilage or damage equipment. Depending on the application, one specific compressed air technology might provide advantages over another technol......
Product descriptions from the supplier
Product Description
Air purity is critical for many applications where even the smallest drop of oil can cause product spoilage or damage equipment. Depending on the application, one specific compressed air technology might provide advantages over another technology. There is the flexibility of several different oil-free compressor technologies to match your requirements:
- Rotary screw,
- Centrifugal,
- Scroll
- Reciprocating.

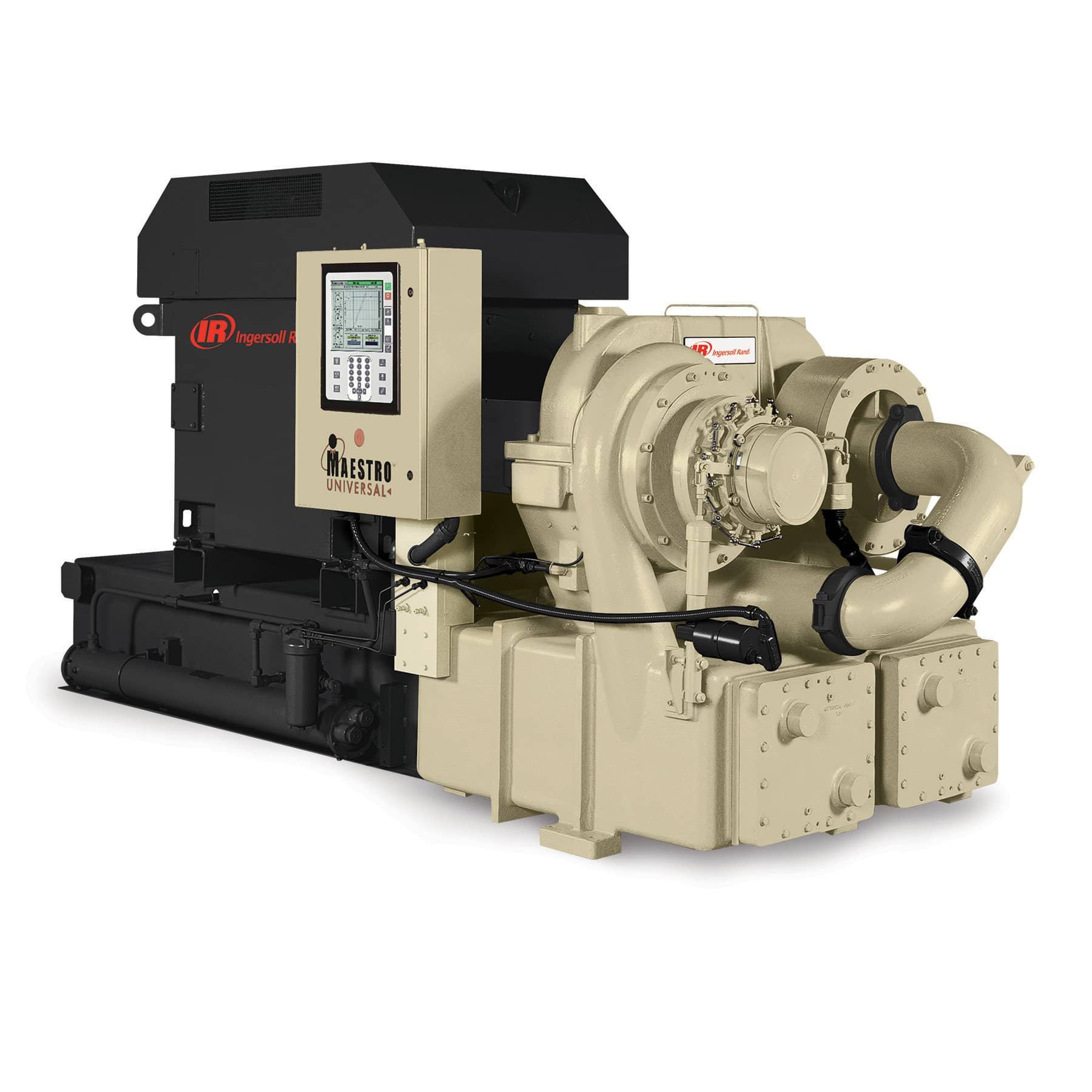

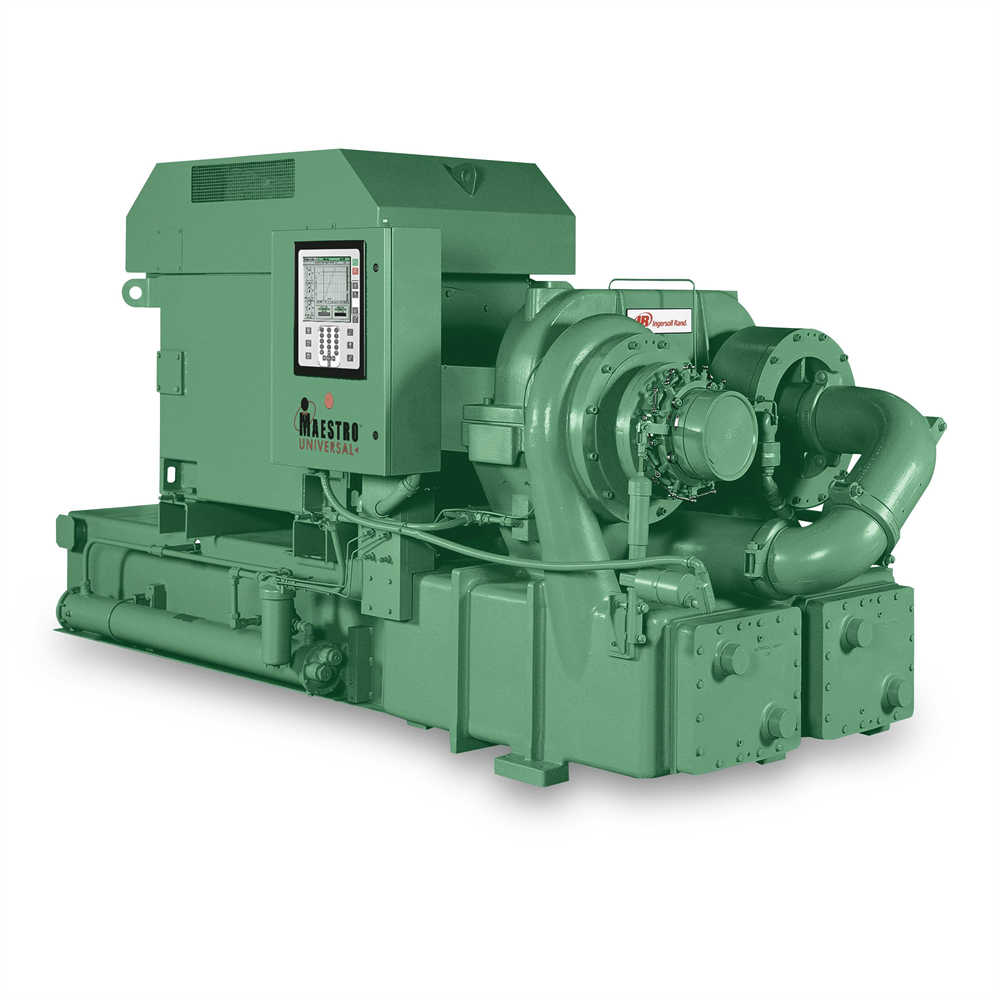

The Centrifugal Air Compressor was built on a standard frame, featuring a wide arrangement of air flow components, designed for easy, low-cost installation and operation. It was designed with a built-in aftercooler that eliminates the need for a separate pipeline type cooler, and a packaged check valve for faster installation and easier maintenance.
The oil-free air compressors have no oil present in the compression chamber. Oil-less air compressors contain no oil in the entire system, therefore, cancelling out any risk of oil contaminating the air. Each highly engineered product results in pure, quality compressed air.
The Centrifugal Air Compressor was built on a standard frame, featuring a wide arrangement of air flow components, designed for easy, low-cost installation and operation. It was designed with a built-in aftercooler that eliminates the need for a separate pipeline type cooler, and a packaged check valve for faster installation and easier maintenance.
The components:
* Impellers: Five-axis-milled impellers designed an manufactured with advanced techniques and methods

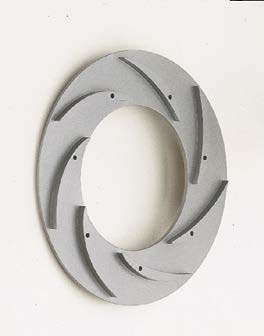

* Vaned Diffusers: Optimized vane design and placement for increased efficiency
* Lubrication System: Self-contained, low-pressure lubrication system
* Intercoolers/Aftercooler: Water-in-tube intercooler and aftercooler bundles slide out for easy inspection and cleaning
* Advanced Pinion Bearing Design: Designed for extended life and operation at any operational load.
* Seals: Designed with non-contacting and non-wearing labyrinth air and oil seals. No buffer air is required for oil-free air do not require periodic replacement like carbon ring seals.
* Horizontally Spilt Gearbox: Allows for easy access when the Jobsite maintenance policy requires periodic inspection.
* Variable Inlet Guide Vanes: Variable inlet guide vanes can offer power savings of up to 9% when operating in a turndown. Inlet guide vanes impart a whirling motion to the inlet airflow in the same direction as the impeller operation, reducing the work input. Net power savings can be realized at reduced flow or on days colder than the design temperature. Inlet guide vanes are positioned close to the inducer of the impeller to maximize performance.
* Impellers: Five-axis-milled impellers designed an manufactured with advanced techniques and methods
* Vaned Diffusers: Optimized vane design and placement for increased efficiency
* Lubrication System: Self-contained, low-pressure lubrication system
* Intercoolers/Aftercooler: Water-in-tube intercooler and aftercooler bundles slide out for easy inspection and cleaning
* Advanced Pinion Bearing Design: Designed for extended life and operation at any operational load.
* Seals: Designed with non-contacting and non-wearing labyrinth air and oil seals. No buffer air is required for oil-free air do not require periodic replacement like carbon ring seals.
* Horizontally Spilt Gearbox: Allows for easy access when the Jobsite maintenance policy requires periodic inspection.
* Variable Inlet Guide Vanes: Variable inlet guide vanes can offer power savings of up to 9% when operating in a turndown. Inlet guide vanes impart a whirling motion to the inlet airflow in the same direction as the impeller operation, reducing the work input. Net power savings can be realized at reduced flow or on days colder than the design temperature. Inlet guide vanes are positioned close to the inducer of the impeller to maximize performance.
Advantage:
1. Class 0 oil free Air
2. Simple Installation
* True unloading capability helps to take advantage of opportunities for energy savings
* Increased uptime compared to alternative technologies translates into reduced operating life-cycle costs
* Reduced number of external connections
* Compact design reduces the required floor space
* Meets OSHA’s sound level requirements without a sound enclosure
3. Low-Cost Operation
* True unloading capability helps to take advantage of opportunities for energy savings
* Increased uptime compared to alternative technologies translates into reduced operating life-cycle costs
* Excellent part-load efficiencies for any operating load
* No sliding or rubbing parts in the compression process cause wear or efficiency loss
4. Easy Operation
* The MAESTRO™ Universal control panel provides a built-in web server, allowing compressor monitoring using your local intranet
* Significant annual savings in operating costs by providing more precise control
* Easy-to-use, automatic operation
5. Easy Maintenance
* Compression elements do not wear or require periodic replacement
* No oil-removal filters to clean or replace
* Accessible, horizontally split gearbox for quick inspection
* Intercooler and aftercooler bundles are easy to remove for inspection and cleaning
* Water-in-tube design of intercooler and aftercooler allow for simple mechanical cleaning
* Maintenance-free dry coupling
6. High Reliability
* Thrust loads absorbed at low speed
* Non-contacting air and oil seals
* Stainless steel compression elements
* Conservative, high-quality gear design
* Extended life pinion bearing design
* Centrifugal compressors are proven to have a long mean time between failures (MTBF), and independent research has shown an industry-leading availability of 99.7%
* True unloading capability helps to take advantage of opportunities for energy savings
* Increased uptime compared to alternative technologies translates into reduced operating life-cycle costs
* Reduced number of external connections
* Compact design reduces the required floor space
* Meets OSHA’s sound level requirements without a sound enclosure
3. Low-Cost Operation
* True unloading capability helps to take advantage of opportunities for energy savings
* Increased uptime compared to alternative technologies translates into reduced operating life-cycle costs
* Excellent part-load efficiencies for any operating load
* No sliding or rubbing parts in the compression process cause wear or efficiency loss
4. Easy Operation
* The MAESTRO™ Universal control panel provides a built-in web server, allowing compressor monitoring using your local intranet
* Significant annual savings in operating costs by providing more precise control
* Easy-to-use, automatic operation
5. Easy Maintenance
* Compression elements do not wear or require periodic replacement
* No oil-removal filters to clean or replace
* Accessible, horizontally split gearbox for quick inspection
* Intercooler and aftercooler bundles are easy to remove for inspection and cleaning
* Water-in-tube design of intercooler and aftercooler allow for simple mechanical cleaning
* Maintenance-free dry coupling
6. High Reliability
* Thrust loads absorbed at low speed
* Non-contacting air and oil seals
* Stainless steel compression elements
* Conservative, high-quality gear design
* Extended life pinion bearing design
* Centrifugal compressors are proven to have a long mean time between failures (MTBF), and independent research has shown an industry-leading availability of 99.7%
Some typical applications and general product arrangements.
Pneumatic Tools
Spray Painting
Food & Beverage
Laboratory
Pharmaceutical
High Tech Laboratory
Medical Equipment
Pneumatic Tools
Spray Painting
Food & Beverage
Laboratory
Pharmaceutical
High Tech Laboratory
Medical Equipment
Specification
Specification | Metric | Imperial |
Standard Input Power | 93-260kw | 125-350hp |
Discharge Pressure | 3.5-10.3 barg | 50-150psig |
Inlet Flow | 15-50m3/m | 500-1800cfm |
Weight | 5543 kg | 12000lb |
