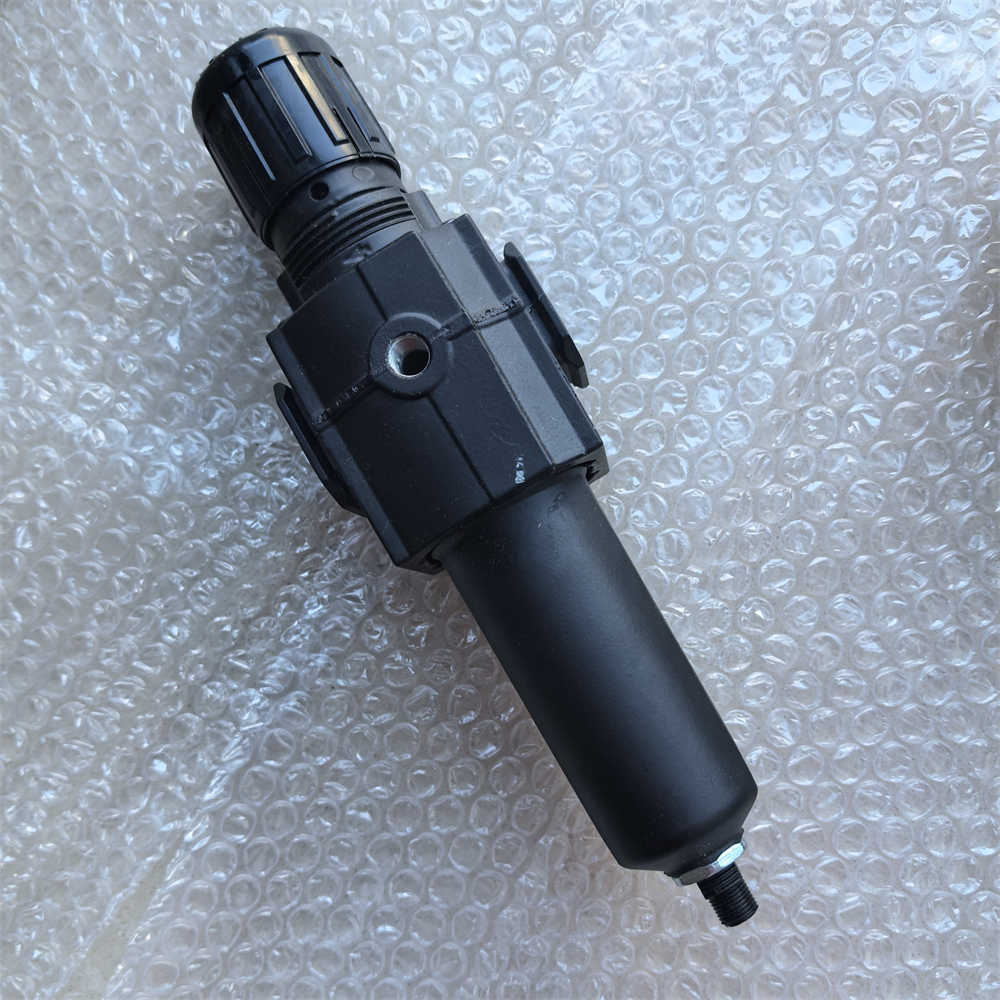

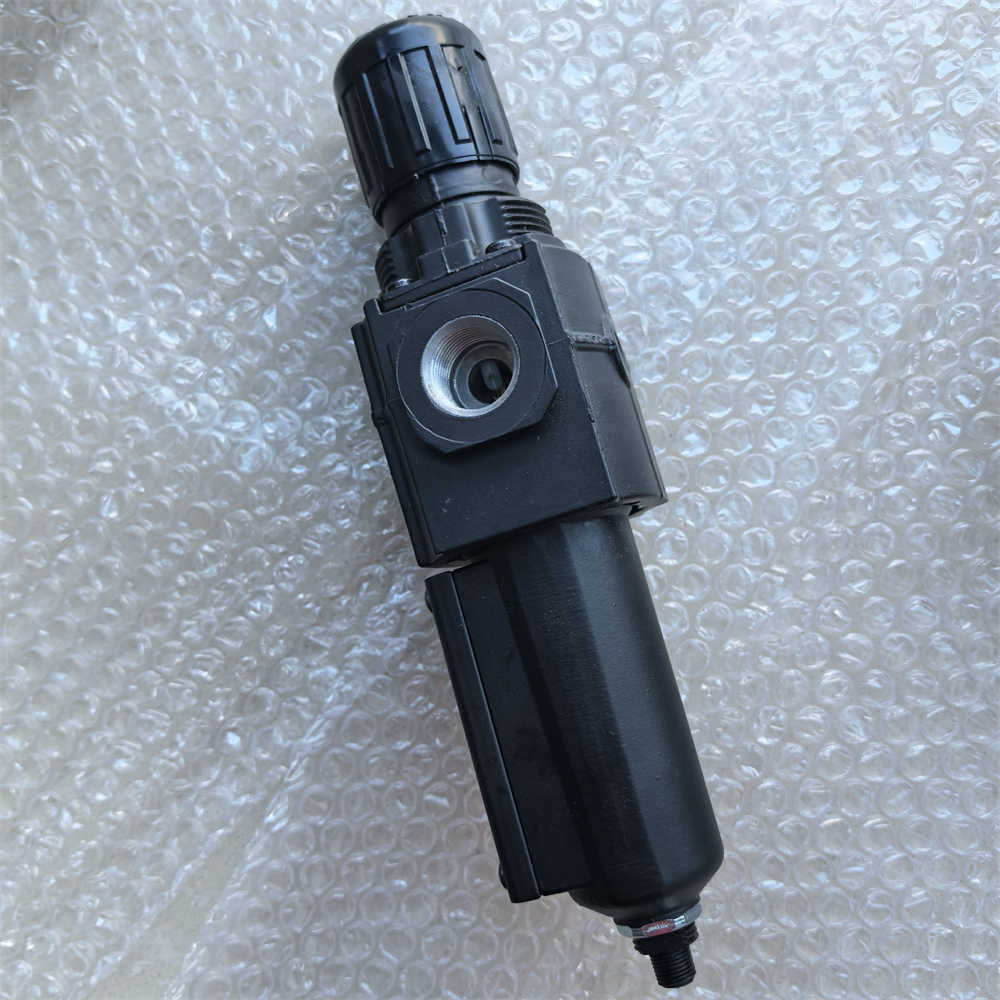

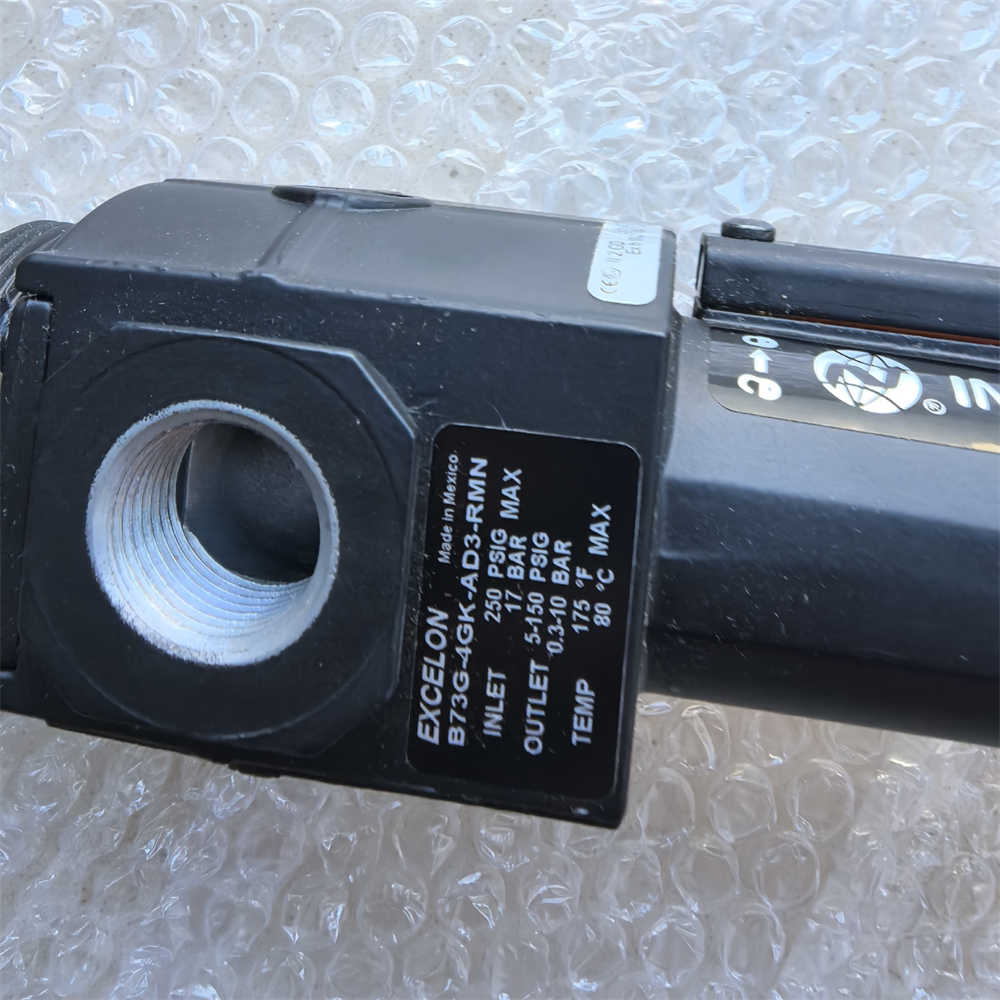

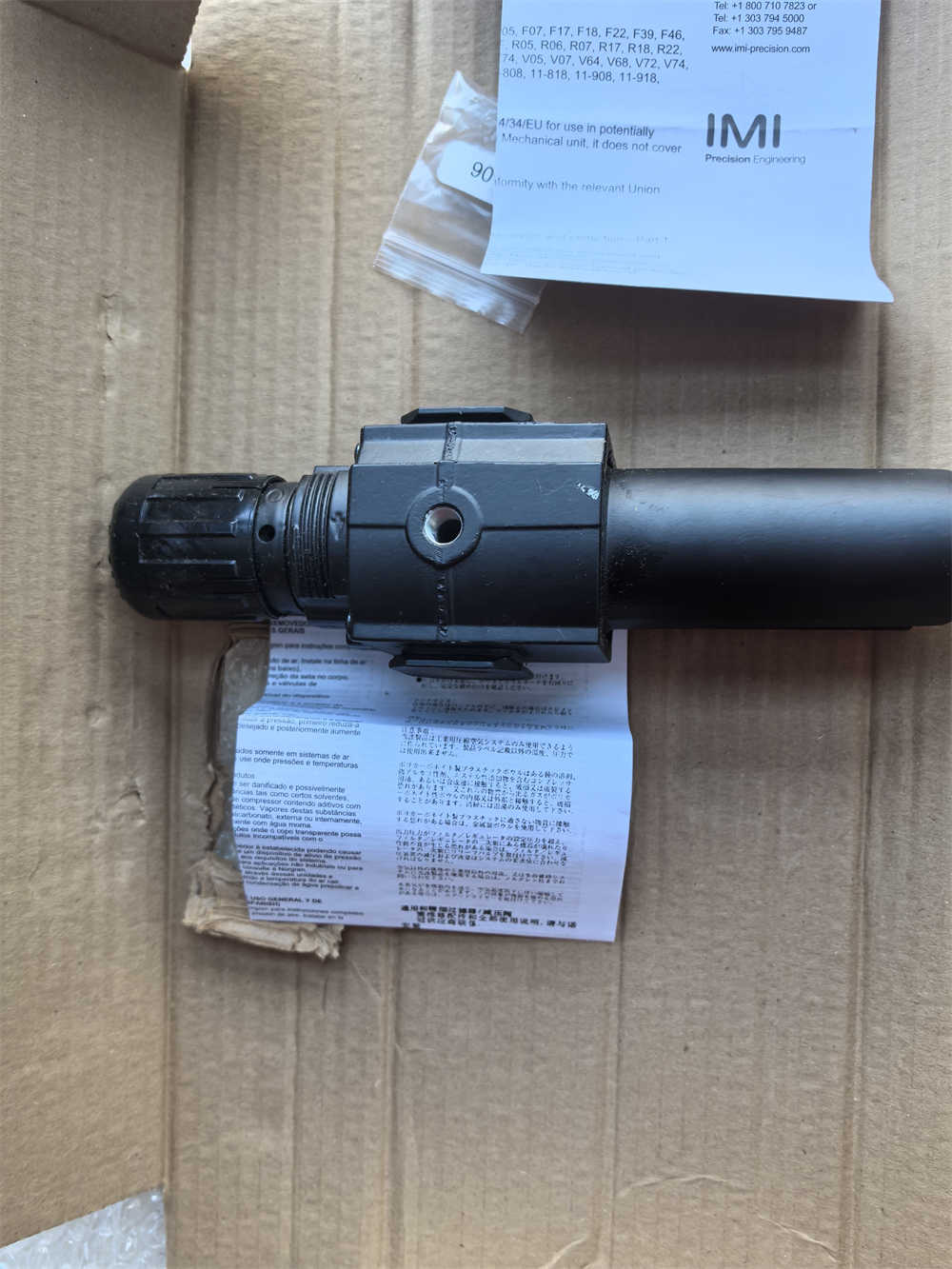

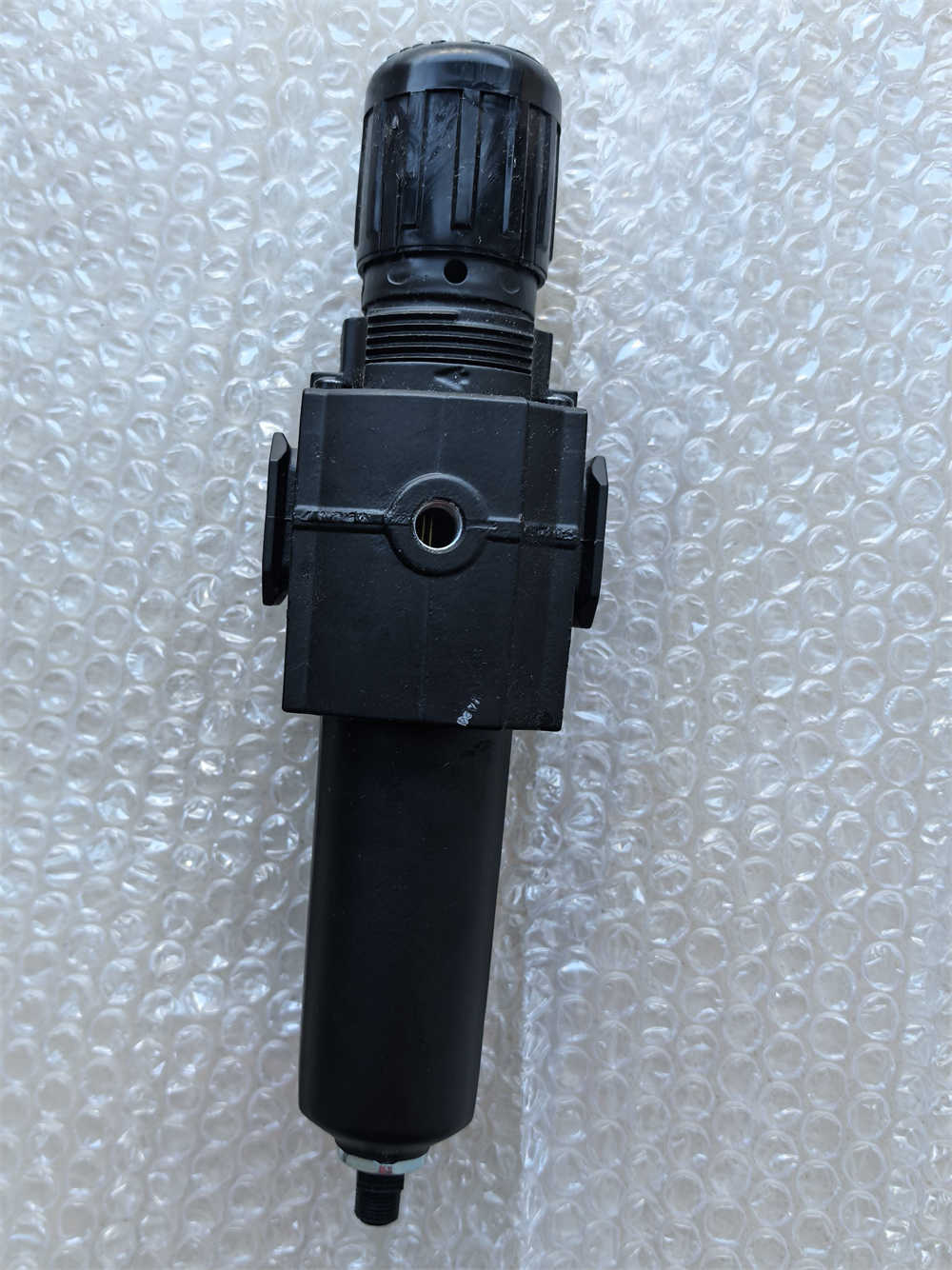

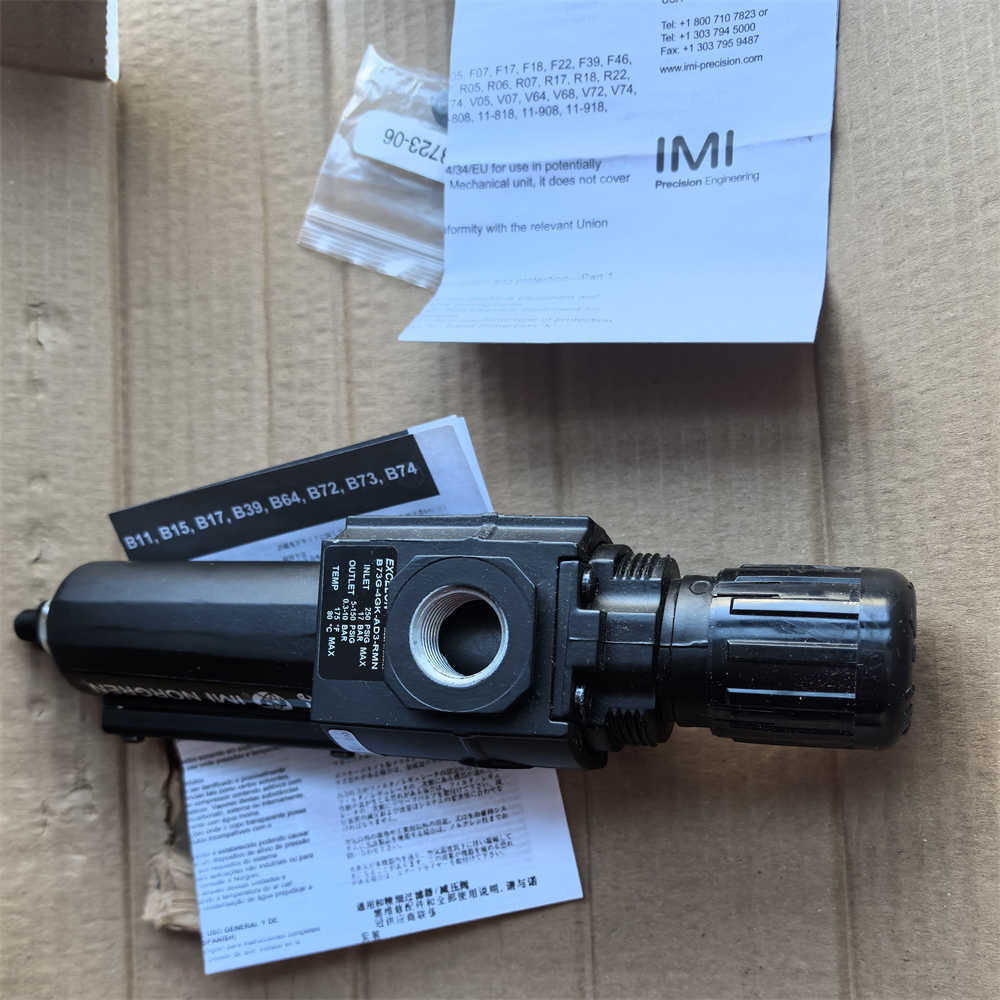

New Original Genuine IMI Norgren B82G-3GK-QP3-RMG Excelon Plus Filter/Regulator Filtre/Régulateur Filtro/regulador
Product descriptions from the supplierProduct DescriptionB73G - EXCELON Modular System General purpose filter/regulatorPort size: 1/4” ... 1/2” (ISO G/PTF) > Excelon design allows in-line installation or modular installation with other Excelonproducts > High efficiency water and particle remov......
B73G - EXCELON Modular System General purpose filter/regulator
Port size: 1/4” ... 1/2” (ISO G/PTF) > Excelon design allows in-line installation or modular installation with other Excelon products > High efficiency water and particle removal > Quick release bayonet bowl Push to lock adjusting knob with tamper resistant accessory > Metal bowl with prismatic liquid level indicator lens
Technical features > Port size: 1/4” ... 1/2” (ISO G/PTF) > Excelon design allows in-line installation or modular installation with other Excelon products > High efficiency water and particle removal > Quick release bayonet bowl > Push to lock adjusting knob with tamper resistant accessory > Metal bowl with prismatic liquid level indicator lens Technical data B73G - standard models Symbol Port size Size Drain Pressure range Filter element Bowl Weight Model (bar) (psi) (μm) (kg) G1/4 — Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-2GK-QT3-RMN G3/8 Basic Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-3GK-QT3-RMN G1/2 — Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-4GK-QT3-RMN G1/4 — Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-2GK-AT3-RMN G3/8 Basic Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-3GK-AT3-RMN G1/2 — Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-4GK-AT3-RMN Medium: Compressed air only Maximum operating pressure: Transparent bowl: 10 bar (145 psi) Metal bowl: 17 bar (246 psi) Pressure range: 0,3 ...10 bar (4 ... 145 psi); 0,3 ... 4 bar (4 ... 58 psi) optional; 0,7 ... 17 bar (2 ... 250 psi) optional Filter element: 40 μm standard, 5 μm optional Port size: G1/4, G3/8, G1/2, 1/4 PTF, 3/8 PTF 1/2 PTF Gauge port: Rc 1/8 with ISO G main ports 1/4 PTF with PTF main ports
Flow: 50 dm3/s max. at port size: G1/2 10 bar (150 psi) inlet pressure, set pressure: 6,3 bar (91 psi) Δp: 1 bar (14,5 psi) Filter element: 40 μm Relieving: Standard Drain: Manual or automatic Automatic drain operating conditions (float operated): Bowl pressure required to close drain: > 0,3 bar (5 psi) Bowl pressure required to open drain: ≤ 0,2 bar (2.9 psi) Minimum air flow required to close drain: 0,1 dm3/s (0.2 scfm) Manual operation: depress pin inside drain outlet to drain bowl Ambient/Media temperature: Tranparent bowl: -34° ... +50°C (-30° ... +122°F) Metal bowl: -34° ... +80°C (-30° ... +176°F) Version with gauge: -34° ... +65°C (-30 ... +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). Materials: Body: Die cast aluminium Bonnet: Acetal Metal bonnet: Zinc Valve: Brass Bowl: transparent PC alternative transparent PC with steel guard alternative aluminium Liquid level indicator lens (metal bowl): transparent PA Filter element: sintered PP Elastomers: CR & NBR
Specification
Type
New and orginal
Types
B73G
Pressure range
0,3 … 10 bar
Filter element
40 μm, 5 μm
brand name
EXCELON
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
