Oil Aerosol Wet Dust and Water Drops From Compressed air Coalescing Filters and Filtration for Your air Compressor Filtres
Product descriptions from the supplierProduct DescriptionThe high efficiency filters provide compressed air with minimal pressure drop of 35mb for long-term cost savings. Superior air quality is achieved by effectively removing damaging oil and water aerosols before they flow through air system pip......
Product descriptions from the supplier
Product Description
The high efficiency filters provide compressed air with minimal pressure drop of 35mb for long-term cost savings. Superior air quality is achieved by effectively removing damaging oil and water aerosols before they flow through air system piping, process equipment and pneumatic valves and tools.
The filters are designed to remove one or more of the following contaminants:
* DIRT: dust, solid particles, rust particles, micro-organisms.
* WATER: condensed liquid water, water aerosols, acidic condensates.
* OIL: liquid oil, oil aerosol, hydrocarbon vapor.
* DIRT: dust, solid particles, rust particles, micro-organisms.
* WATER: condensed liquid water, water aerosols, acidic condensates.
* OIL: liquid oil, oil aerosol, hydrocarbon vapor.

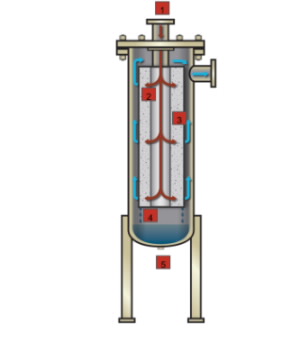

Air contaminated with mineral or synthetic lubricant and water aerosols enters the Module housing...
1 - Air flows horizontally through a deep filter bed
2 - Sub-micron particles collect on individual bed fibers and coalesce to form droplets
3 - As the droplets move through the filter bed, they become larger and their resulting weight forces them to drop to the bottom of the housing
4 - Low internal velocity prevents oil re-entrainment, while the large surface area keeps the pressure drop very low over the life of the element. The long residence time through the deep filter bed ensures the highest coalescing efficiency. Automatic or manual drains can be used to discharge lubricant and water that accumulate in the bottom of the housing
5 - Compressed air and drain hookups are all that’s required to integrate an Module into your compressed air system — no electricity is used. No loss drains are included with each model.
1 - Air flows horizontally through a deep filter bed
2 - Sub-micron particles collect on individual bed fibers and coalesce to form droplets
3 - As the droplets move through the filter bed, they become larger and their resulting weight forces them to drop to the bottom of the housing
4 - Low internal velocity prevents oil re-entrainment, while the large surface area keeps the pressure drop very low over the life of the element. The long residence time through the deep filter bed ensures the highest coalescing efficiency. Automatic or manual drains can be used to discharge lubricant and water that accumulate in the bottom of the housing
5 - Compressed air and drain hookups are all that’s required to integrate an Module into your compressed air system — no electricity is used. No loss drains are included with each model.
The advantage:
* Efficient Equipment Protection: High-efficiency and coalescing filters with particulate filtration to 0.5 ppm, > 3 microns at
100%, between 0.1 to 3 microns at 99.98% . Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
* Lower Energy Use: Low pressure drop (around 35mb compare to convetional filters average of 448mb) design saves on energy costs and provides an economical drying solution for your compressed air needs
* Application Versatility: Effective on all common mineral and synthetic lubricants
* Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
* Maximize Uptime: Enhanced process security that reduces the effects of catastrophic air/oil separator failures
* Extend Equipment Life: High-quality, maintenance-free filters extend element life up to 10 years
* Real Savings: Near Zero pressure drop and low-maintenance resulting in low energy costs
100%, between 0.1 to 3 microns at 99.98% . Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
* Lower Energy Use: Low pressure drop (around 35mb compare to convetional filters average of 448mb) design saves on energy costs and provides an economical drying solution for your compressed air needs
* Application Versatility: Effective on all common mineral and synthetic lubricants
* Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
* Maximize Uptime: Enhanced process security that reduces the effects of catastrophic air/oil separator failures
* Extend Equipment Life: High-quality, maintenance-free filters extend element life up to 10 years
* Real Savings: Near Zero pressure drop and low-maintenance resulting in low energy costs
Specification
Model | Filter Model number (EMEIA) (CCN) | Flow capacity (Nm3/h) | Connection Size (A),(B) (in) | Drain Port (C) (in) | Weight (kg) | Dimension (D) (mm) | Dimension Volume (i) |
F210INLM | 17933082 | 210 | 2" BSPP | 1" BSPP | 205 | 353 | 57 |
F430INLM | 17933083 | 430 | 2" BSPP | 1" BSPP | 205 | 353 | 57 |
F850INLM | 17933084 | 850 | DN 80 PN16 | 1" BSPP | 234 | 353 | 114 |
F1360INLM | 17933085 | 1360 | DN 80 PN16 | 1" BSPP | 239 | 353 | 114 |
F1870INLM | 17933087 | 1870 | DN 80 PN16 | 1" BSPP | 297 | 397 | 160 |
F2550INLM | 17933088 | 2550 | DN 100 PN16 | 1" BSPP | 349 | 448 | 205 |
F3220INLM | 17933089 | 3220 | DN 100 PN16 | 1" BSPP | 551 | 601 | 380 |
F4070INLM | 17933090 | 4070 | DN 100 PN16 | 1" BSPP | 560 | 601 | 380 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
1.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
