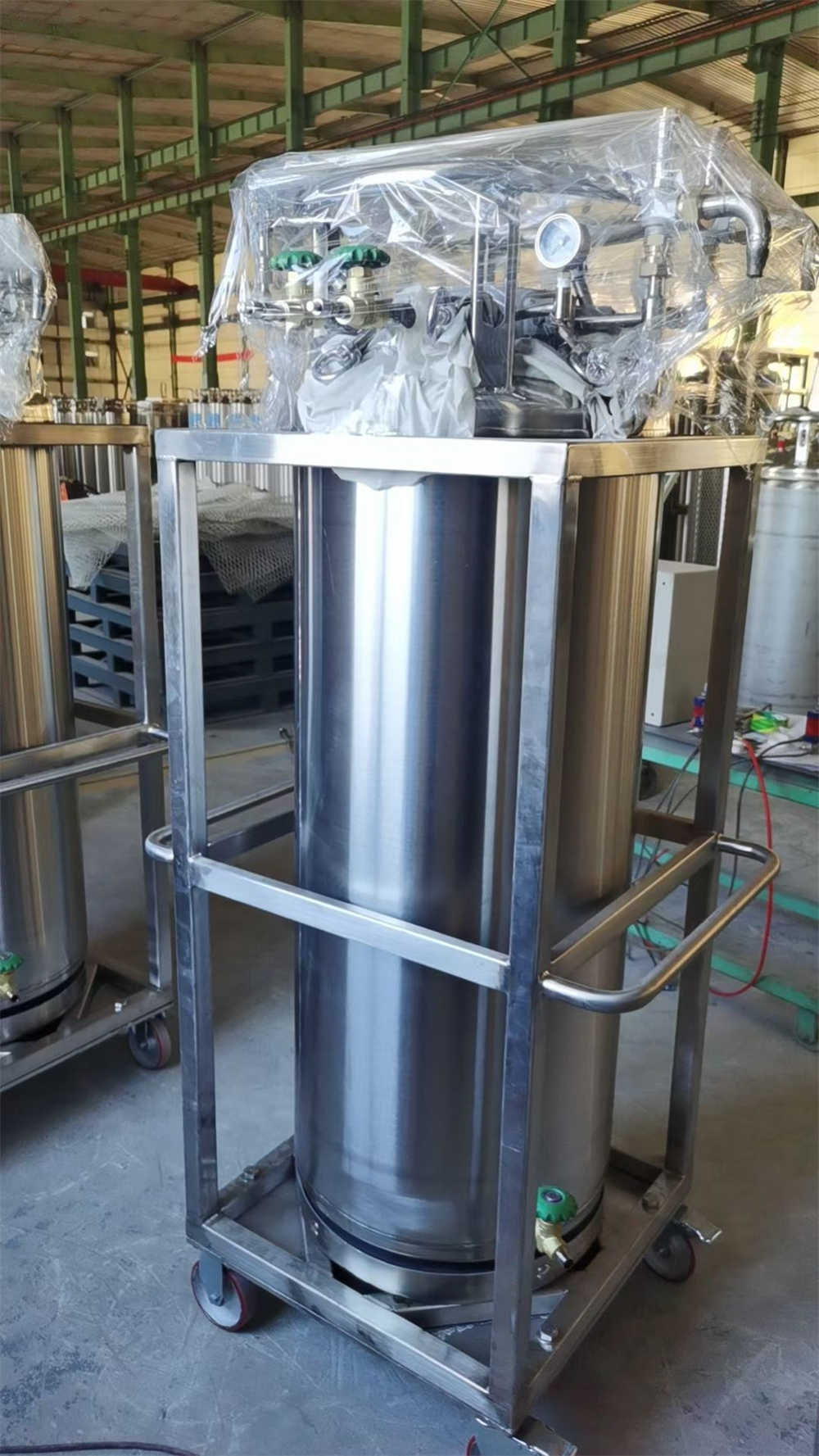

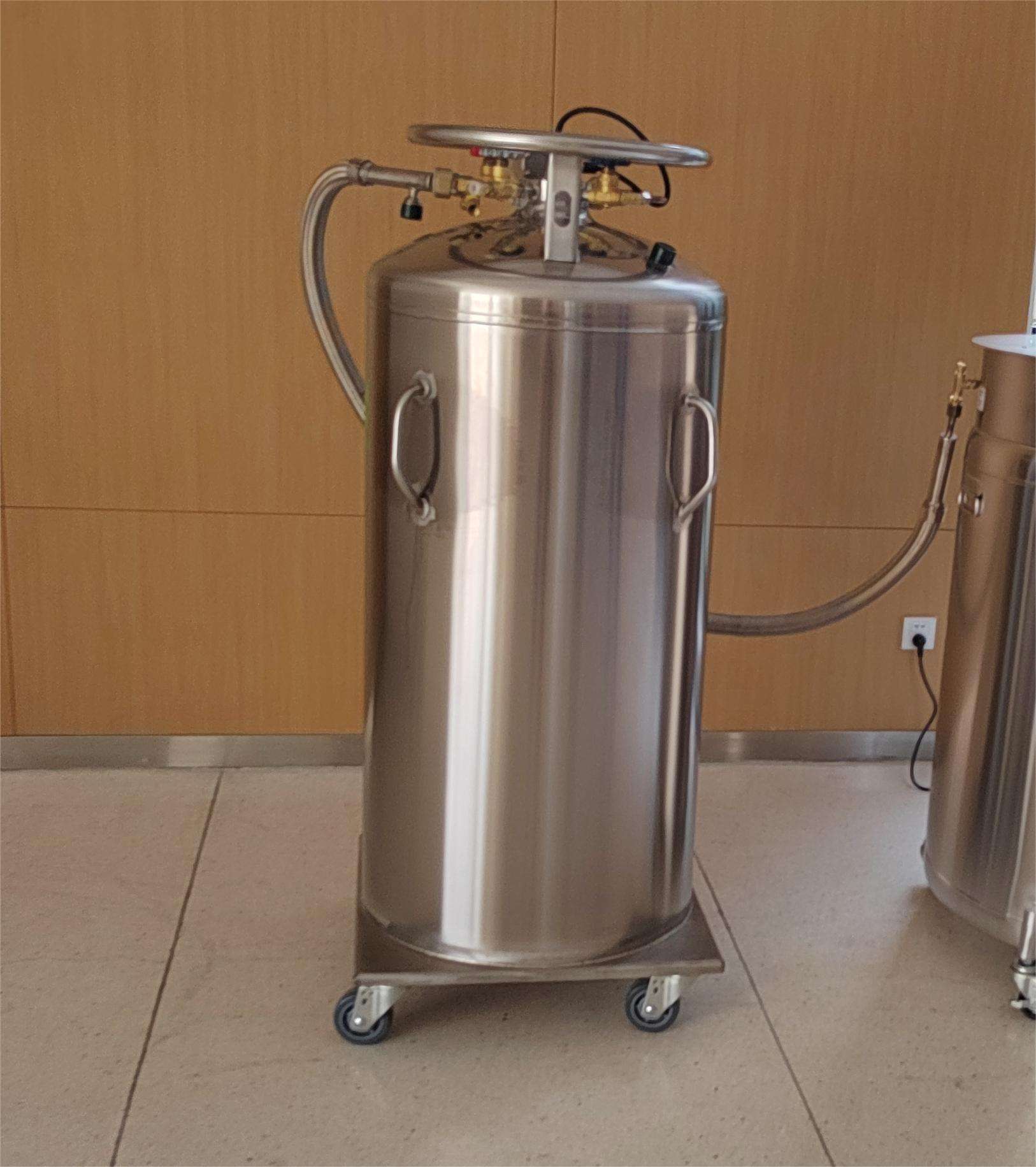

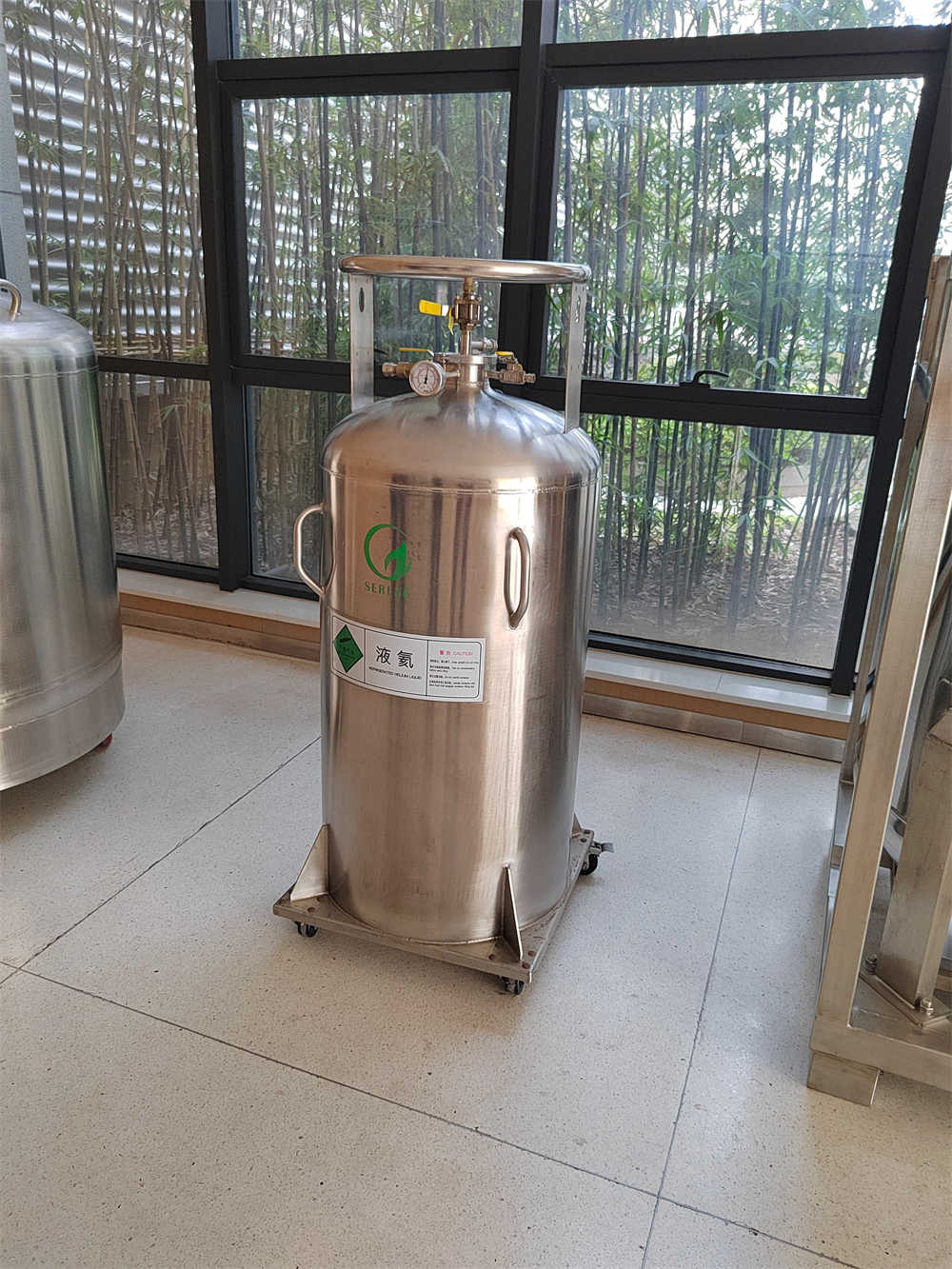

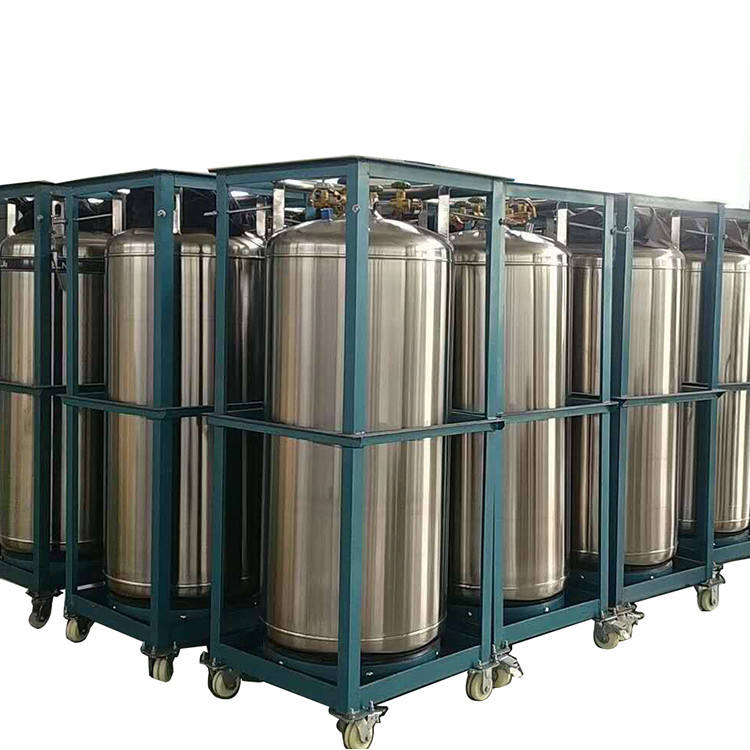

195L 2.3Mpa Vertical Cryogenic Stainless Steel Liquid Oxygen Nitrogen Argon LNG Cylinder Dewar
Product descriptions from the supplierProduct DescriptionCryogenic Dewar tank is a kind of high-performance vacuum insulated container, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road trans......
Product descriptions from the supplier
Product Description
Cryogenic Dewar tank is a kind of high-performance vacuum insulated container, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications, can provide up to 9.2 cubic meters per hour continuous flow with a delivery pressure of approximately 100psig (6.9bar/690Kpa).
As a low-temperature insulated pressure vessel, gas cylinders are mainly used for storing and transporting liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, and liquefied natural gas, and can automatically and continuously provide gas. The gas cylinder is designed as a double-layer (vacuum) structure, with an inner liner used to store low-temperature liquids. Its outer wall is wrapped with multiple layers of insulation material, which has strong insulation performance. At the same time, the interlayer (the space between the two layers of containers) is pumped into a high vacuum, forming a good insulation system together.
Free of Foundation! Free of installation! Easy Transportation!
Service for liquid Oxygen, Nitrogen,Argon;
The nominal volumes available are 100L ~ 450l
Service for liquid Oxygen, Nitrogen,Argon;
The nominal volumes available are 100L ~ 450l
Specification
Product Model | HH-100 | HH-175 | HH-195 | HH-210 | HH-410 | HH-450 |
Diameter*Height (mm) | 454*1247 | 508*1500 | 508*1620 | 508*1707 | 750*850*1707 | 750*850*1900 |
Working Pressure (MPa) | 1.33 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
2.01 | 2.01 | 2.01 | 3.17 | 3.17 | ||
2.88 | 2.88 | 2.88 | ||||
Pressure Relief Valve (MPa) | 1.59 | 1.59 | 1.59 | 1.59 | 1.59 | 1.59 |
2.41 | 2.41 | 2.41 | 3.45 | 3.45 | ||
3.45 | 3.45 | 3.45 | ||||
Inner Container Bursting Disc (MPa) | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 |
3.62 | 3.62 | 3.62 | 5.7 | 5.7 | ||
5.17 | 5.17 | 5.17 | ||||
Maximum Liquid Capacity (L) | 100 | 175 | 195 | 210 | 410 | 450 |
Usable Liquid Capacity (L) | 95 | 166 | 185 | 197 | 389 | 427 |
Normal Evaporation Rate | ≤0.95% | ≤0.95% | ≤0.95% | ≤0.95% | ≤0.95% | ≤0.95% |
Tare Weight (Kg) | 70 | 110 | 117 | 123 | 282 | 289 |
Oxygen(kg) | 100 | 172 | 191 | 205 | 443 | 487 |
Nitrogen(Kg) | 73 | 121 | 135 | 145 | 315 | 346 |
Argon(Kg) | 127 | 208 | 233 | 250 | 548 | 602 |
Recommend Products

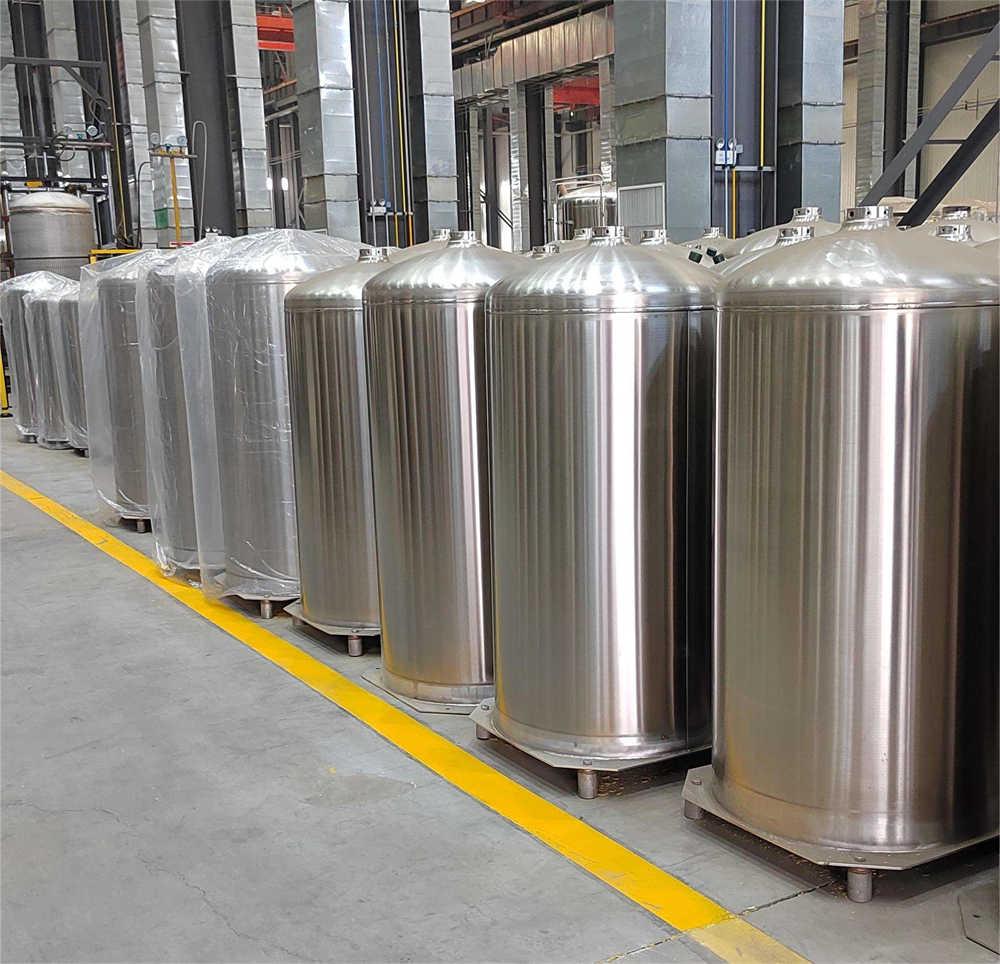

Manufacturing Technique
Our Advantages

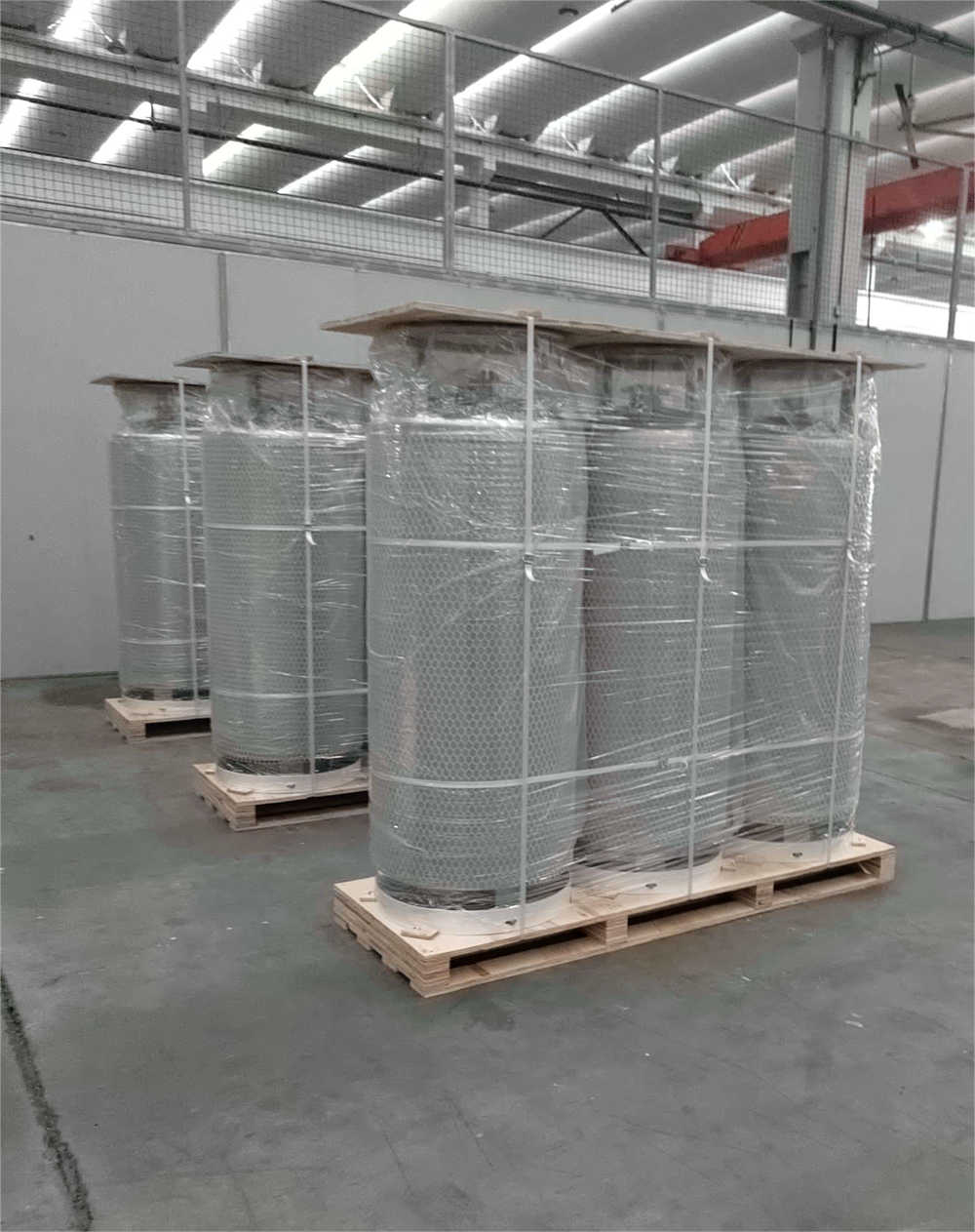

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
