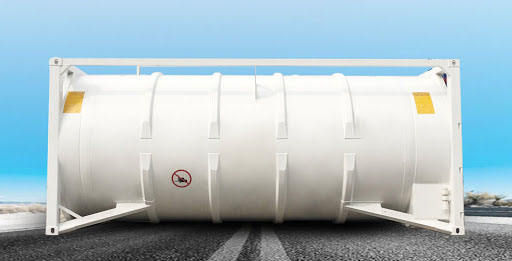

20ft Shipping Container Cryogenic LOX, LIN, LAR, LCO2, LN2O, LNG Cryogenic Liquid Tank Container ISO T75 UN Cryogenic Tanks
Product descriptions from the supplierBasic Info.Model NO.:JSX20217TC for LNG ContainerProducing Period: >20 DaysFrame Size: 20ftLife Span: >25 YearsColor: CustomizedLoading Capacity: 25000LMaximum Gross Weight: 35000 KgTare: 6800 KgDesign Temperature(ºC): 55Operating Temperature(ºC)......
Product descriptions from the supplier
Basic Info.
Model NO.:JSX20217TC for LNG Container
Producing Period: >20 Days
Frame Size: 20ft
Life Span: >25 Years
Color: Customized
Loading Capacity: 25000L
Maximum Gross Weight: 35000 Kg
Tare: 6800 Kg
Design Temperature(ºC): 55
Operating Temperature(ºC): -40~50
Filling Medium: Lox, Lin, Lar, LNG, Lco2, Ln2o, LC2h4
Tank Instruction: T75
Max. Payload (Kg): 22568
Hydro.Test Pressure(MPa): 2.18
Leakage Test Pressure(MPa): 1.38
Product Description
Transport Package: by Container Vessel for Gas Container
Specification: 6058*2438*2591/mm LNG Container
Trademark: huahang
Origin: Mainland of China
HS Code: 8609001200
Production Capacity: 200units/Month for ISO Storage Tank Container
Product Description
20Feet Shipping Cryogenic LOX,LIN,LAR,LCO2,LN2O, LNG Container
Product Function for 20feet T75 LNG/CNG ISO Storage Tank Container
***This series tank semi trailers are suitable for the transportation 1,1,1,2-Tetrafluoroethane,LOX/LIN/LAR/LCO2/LNG,LN2O,LPG,Etc. Gas.
*** The volume is under 22 cube meters, we can manufacture it according to your needs.
Product Details for 20feet T75/T50 LOX,LIN,LAR,LNG,LCO2,LN2O,LC2H4,/CNG ISO Storage Tank Container.
1).The related Specification for this container tanker:

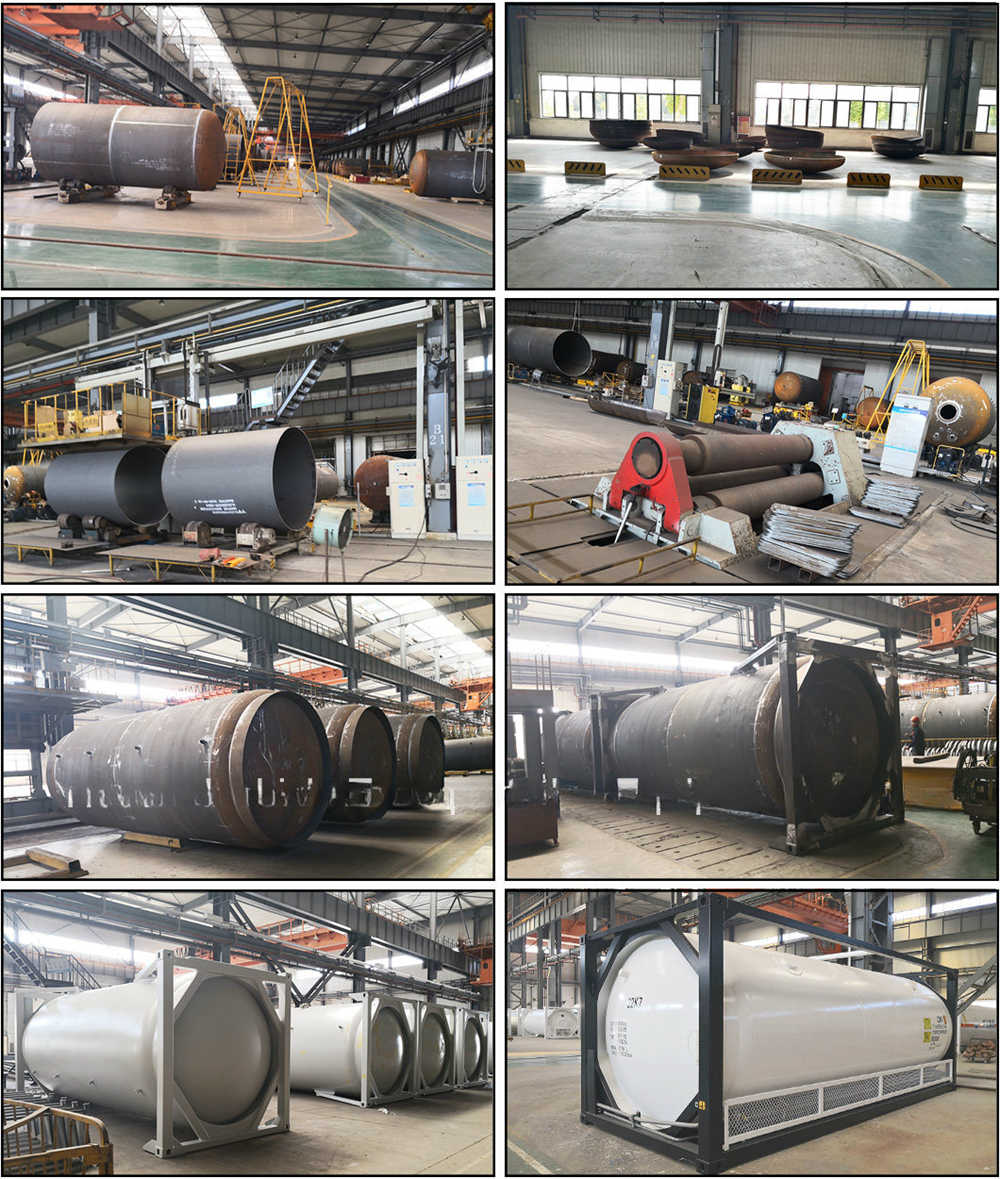

2) Some photos for our Tank Container Workshop:
>>>Certificates for the 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers
3) Detailed photos for the Gas Tank Container:
4)Some feedback about this 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers from our Clients:
5)Our customer testing the Air tightness for the 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers by themselves
6) Optional parts for the 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers:
Volume: 20 cube meters to 45 cube meters for this Cryogenic Tank Container;
Material: Carbon steel/stainless steel material for this Cryogenic Tank Container;
Medidum:LOX,LIN,LAR,LNG,LCO2,LN2O,LC2H4,Liquid Ammonia,etc., Liquid Gas for this Cryogenic Tank Container;.
7) Brief Introduction To Our Factory:
8) Some photos of the delivery about this 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers:
10) Buying Guides for this 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers
**You please send us your enquiry for this Gas Container;
**We shall reply you with the quotation of this Gas Container within 12 hours;
**We negotiate on the configuration of this Gas Container that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production for this Gas Container;
**Manufacturing process updated news → completing production for this Gas Container;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year for this Gas Container.
Product Function for 20feet T75 LNG/CNG ISO Storage Tank Container
***This series tank semi trailers are suitable for the transportation 1,1,1,2-Tetrafluoroethane,LOX/LIN/LAR/LCO2/LNG,LN2O,LPG,Etc. Gas.
*** The volume is under 22 cube meters, we can manufacture it according to your needs.
Product Details for 20feet T75/T50 LOX,LIN,LAR,LNG,LCO2,LN2O,LC2H4,/CNG ISO Storage Tank Container.
1).The related Specification for this container tanker:
| Dimension of the 20FT 20CBM T75 Liquified N2 Tank Container with Lloyd's CSC Certificates | ||||||
| Description and Specification of Commodity | ||||||
| Codes and regulations | IMDG-CODE. GB150-98 ASMI-VIII-1 JB/T4781-2005 | |||||
| UN code. | 1977 | |||||
| Design Standards | CCS, Basis: IMDG. CSC. TIR. UIC. RID | |||||
| Approval and inspection org | Lloyd's Register(EN standard) | |||||
| Tank Shape | 20FT | |||||
| Tank Shape | Column Shape,Horizontal | |||||
| Nominal Medium | 20500L | |||||
| Loading Medium | LNG,LCO2,LN2,LO2,LAR,LN2O,LC2H4 | |||||
| Gross mass(kg) | 34000 | |||||
| Tare Weight(kg) | 11050kg | |||||
| Payload(kg) | 22000kg | |||||
| Maximum Gross Weight | 34000 KG | |||||
| Tolerances: | on volume 1%,on weight 2% | |||||
| Stacking | 192000kgs | |||||
| Tare | 7750 KG(Maximum tolerance 3%) | |||||
| Filling ratio | 95% / 85% | |||||
| Max. Allowed Working Pressure | 16Bar | |||||
| Design Pressure | 22Bar | |||||
| Test Pressure | 20Bar (Hydraulic Pressure test) | |||||
| Corrosion Degree | 0 | |||||
| Max. Outside Pressure(Mpa.) | 0.1 | |||||
| Baffles of the inner vessel | Two transvers baffles | |||||
| Surface treatment of the inner vessel | Pickling | |||||
| Material of the inner vessel | Stainless Steel | |||||
| Material of the out jacket&Frame | Low alloy steel | |||||
| Surface treatment of the out jacket | Shot blast SA2-1/2" | |||||
| Outer Vessel | ||||||
| Design Temperature(°C) of the out jacket | -20 to 50 | |||||
| Design pressure | -1 barg(full vacuum) | |||||
| Outer Diameter | 2420mm(not protruding over the frame members) | |||||
| Overall length | 6000mm(not protruding over the frame members) | |||||
| Vacuum Test Pressure(Mpa) | 0.1 | |||||
| External Tank thickness(mm) | 6 | |||||
| Inner Vessel | ||||||
| Max. Allowed working pressure | 16bar | |||||
| Pressure vessel code | AD2000-Regelwerk | |||||
| Test and calculation pressure | 20bar | |||||
| Design temperature(ºC) | -196 to 50 | |||||
| Working Temperature(ºC) | -196 to 50 | |||||
| Outer Diameter | 2200mm | |||||
| Inner Tank thickness(mm) | 16 | |||||
| Number of baffles | 2 | |||||
| Corrosion Degree | 0 | |||||
| Gastight Test Pressure | 14.4Bar | |||||
| Type of insulation | High vacuum multi-layer | |||||
| Static evaporation rate | Ln2 0.35%/d | |||||
| Welding Joint Efficiency | 1 | |||||
| Radiographic Inspection | 100%X-RAY | |||||
| Vacuum | ≤0.1pa(Warm) | |||||
| Net evaporation rate | ≤0.33%/d (Ln²)(ambient condition:100kpa and 15°C | |||||
| Inner End Enclosure(mm) | 18 | |||||
| External End Enclose(mm) | 8 | |||||
| Piping material | Stainless Steel type 340(L) | |||||
| Valve types for cryogenic tanks | cryogenic valves | |||||
| Safety Valve | DN25 PN2.5 DAH-25A1 | |||||
| Vaporator | DN25 | |||||
| Hose and Hose box | YES | |||||
| Top inlet pipe | DN40 | |||||
| Bottom inlet/outlet pipe | DN40 | |||||
| Reflux tube | DN40 | |||||
| Liquid level gas phase tube | DN10 | |||||
| Liquid level liquid phase tube | DN10 | |||||
| Monitoring tube | DN10 | |||||
| Threaded connection for drain and fill pipes | NIT-150 | |||||
| Valve box | 1 | |||||
| Guardrail of Ladder(mm) | W=400 | |||||
| Allowable stacking weight | 192000 | |||||
| PBC | 120NM³ | |||||
| DP gauge | 6 inch dial(Range:0~4000mmH2O) | |||||
| Pressure gauge | DV-6R Thermocouple probe | |||||
| Inner tank material: | SA-240 ASME Certification | |||||
| Outer vessel: | SA-516M ASME Certification | |||||
| Overall Size(Frame)/L*W*H/mm | 6058*2438*2591 | |||||
| ISO-cornercastings | 20'x8'x8'6" ISO dimensions | |||||
| Frame | ||||||
| The frame is of "Beam Type",consisting 8'X8'6"-frame at each end,connected to each end.Handling to be done by means of the corner castings only.The container can be secured by twist locks on rail and road vehicles complying to the relevant requirements of ISO668 Freight containers. | ||||||
| Insulation or Sun Shield | Sun Shield | |||||
| Paint | Frame | 30µm +40µm +50µm | ||||
| Shell | 30µm +40µm +50µm | |||||
| Thermal Treatment(YES/NO) | YES | |||||
| TANK INSTRUCTION | T75 | |||||
| Dossier | Two copies of tank dossier in English & Chinese, | |||||
| Manuals | Two copies of operating manual in English & Chinese | |||||
2) Some photos for our Tank Container Workshop:
>>>Certificates for the 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers

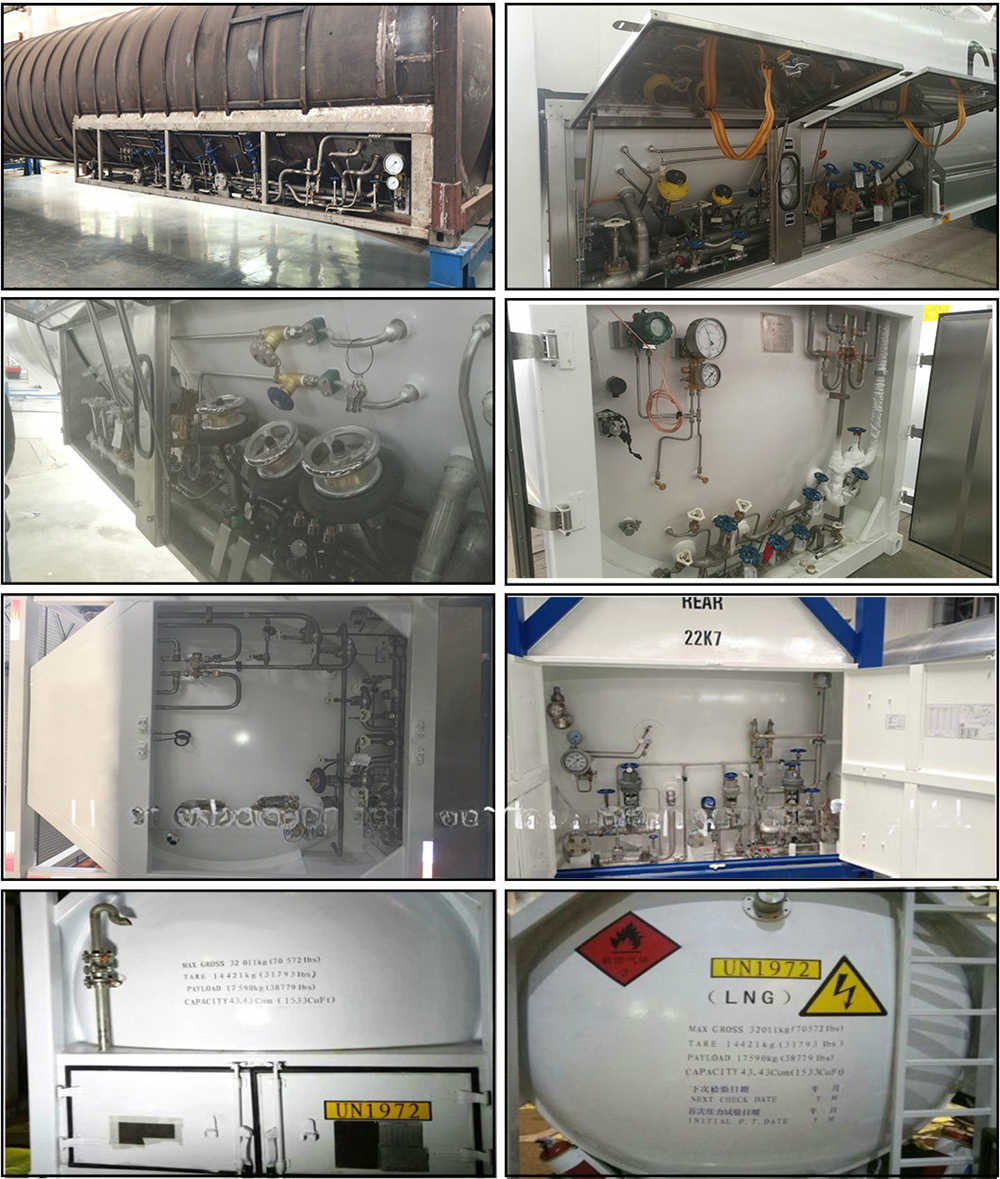

3) Detailed photos for the Gas Tank Container:
4)Some feedback about this 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers from our Clients:

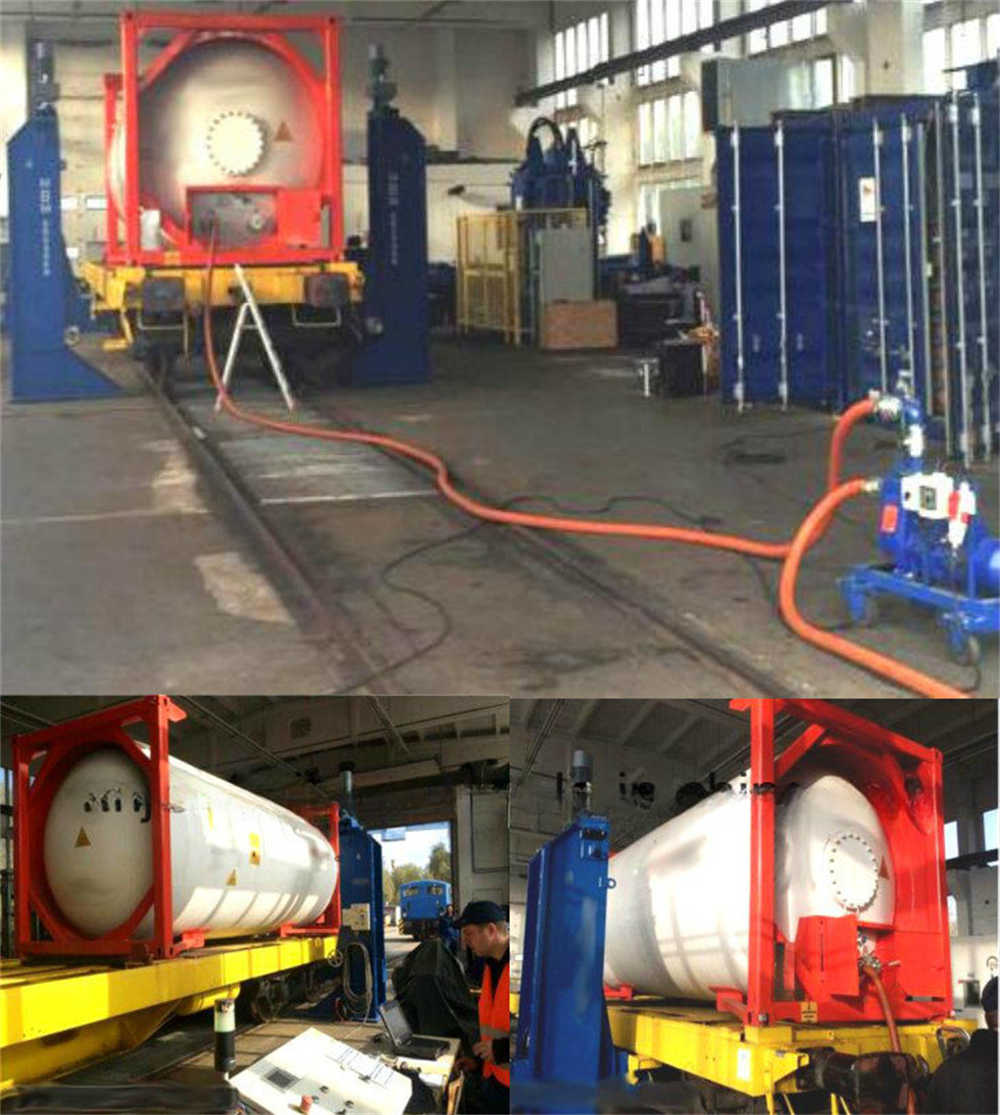

5)Our customer testing the Air tightness for the 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers by themselves
6) Optional parts for the 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers:
Volume: 20 cube meters to 45 cube meters for this Cryogenic Tank Container;
Material: Carbon steel/stainless steel material for this Cryogenic Tank Container;
Medidum:LOX,LIN,LAR,LNG,LCO2,LN2O,LC2H4,Liquid Ammonia,etc., Liquid Gas for this Cryogenic Tank Container;.
7) Brief Introduction To Our Factory:

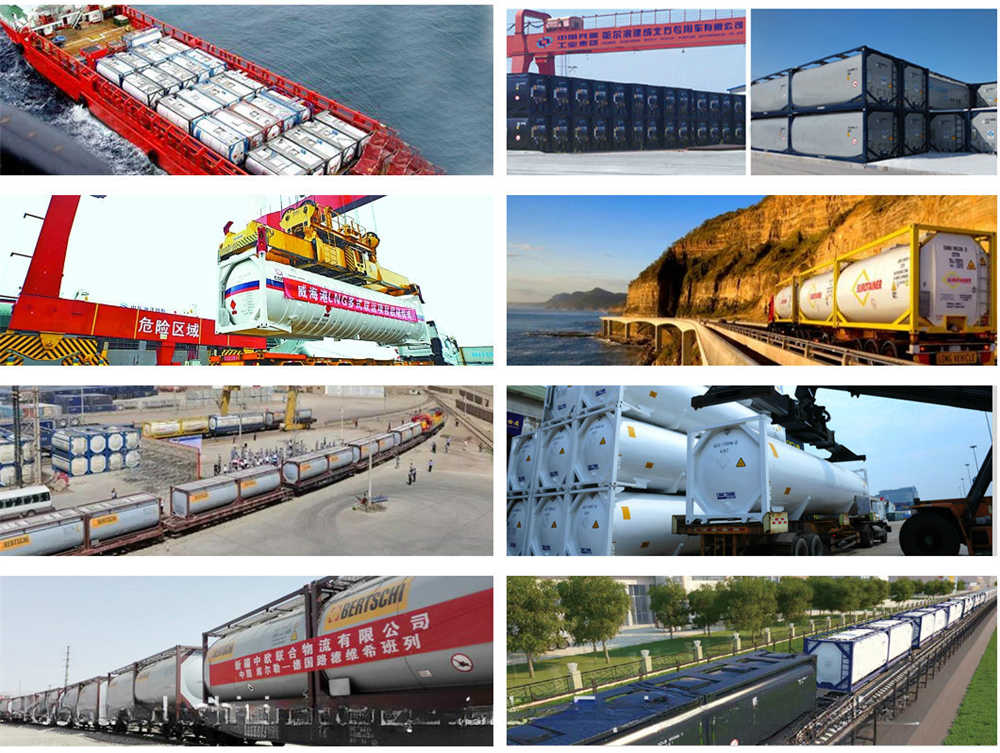

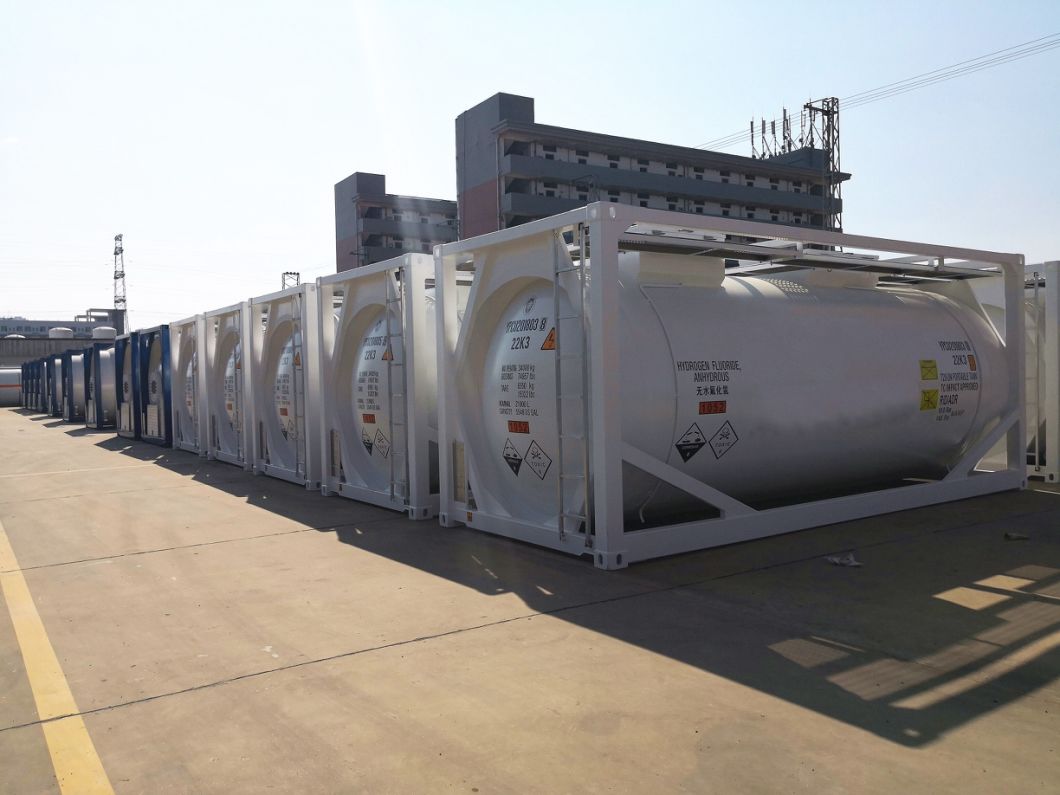

8) Some photos of the delivery about this 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers:
10) Buying Guides for this 20Feet LNG,LOX,LIN,LAR ISO Sea Tank Containers
**You please send us your enquiry for this Gas Container;
**We shall reply you with the quotation of this Gas Container within 12 hours;
**We negotiate on the configuration of this Gas Container that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production for this Gas Container;
**Manufacturing process updated news → completing production for this Gas Container;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year for this Gas Container.
