Cryogenic Pump CE Certified Liquid Oxygen/ Nitrogen/ Argon/ CO2/ LNG Piston Pump

Product descriptions from the supplierProduct Description Basic Info.Model NO.: liquid oxygen/ nitrogen/ argonMax. Discharge Pressure: 120MPaApproval: CE, ISOCondition: NewTransport Package: Wooden BoxSpecification: 5~30, 000L/hTrademark: HuahangOrigin: ChinaHS Code: 8413810090Production Capacity: 5......

Send Inquiry

Product Description

Product descriptions from the supplier

Product Description
Basic Info.

Model NO.: liquid oxygen/ nitrogen/ argon

Max. Discharge Pressure: 120MPa

Approval: CE, ISO

Condition: New

Transport Package: Wooden Box

Specification: 5~30, 000L/h

Trademark: Huahang

Origin: China

HS Code: 8413810090

Production Capacity: 5000 Sets Per Year

Product Description

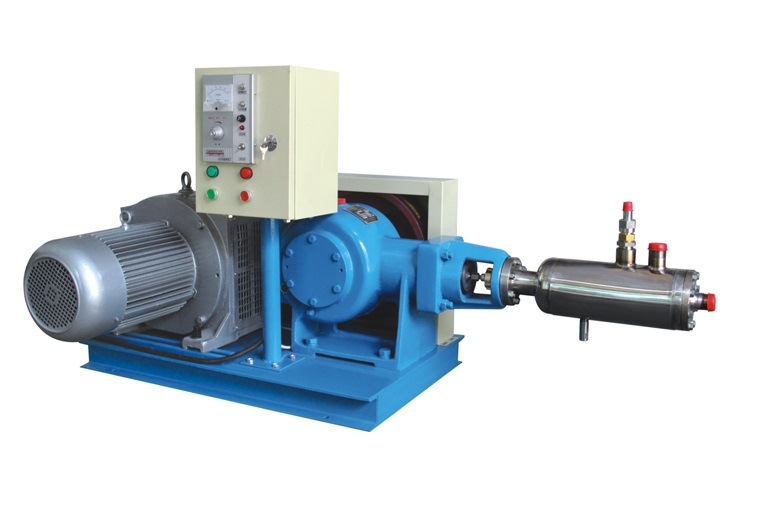

CE certified cryogenic liquid oxygen/ nitrogen/ argon cylinder filling pumps

Hua

Huahang reciprocating cryogenic liquid oxygen/ nirogen/ argon pumps are applied in the filling system of oxygen, nitrogen and argon. After boosting the pressure of the low- temperature liquid in the cryogenic storage tank, the liquid will go through the high pressure ambient vaporizers, then the high pressure oxygen/ nitrogen/ argon will be filled into the gas cylinders or pipelines.

Our Advantages

Huahang's cryogenic liquid pumps have the advantages of stable and easy operation, convenient maintenance. Only about one minute start-up time; furthermore, the pump head can be disassembled independently and the reassembling process takes no more than one hour after repairing the pump head.

The special flow design makes the cryogenic liquid pump restart without discharging the transferred liquid pressure. In additional, the pump operating noise is comparatively low, thus it is suitable for the applications that strictly control the noises.

Product Parameters

Specification of Huahang Cryogenic liquid pumps 200~600liter/hour
No.	Item	Specification
1	Model No.	BPO-200-600/16.5
2	Type	Horizontal, single cylinder, piston
3	Design temperature	-196 ºC
4	Operating temperature	-196 ºC
5	Medium	LOX, LIN, LAr
6	Operating pressure	16.5MPa
7	Design pressure	17MPa
8	Inlet pressure	0.02Mpa~1.6Mpa
9	Flow rate	200-600L/H
10	Input power supply	380V/ 3ph/ 50Hz
11	Motor power/ rotation speed	5.5KW/ 380V/ 50HZ

Supply scope of Huahang Cryogenic liquid pumps
S.N.	Item	Specification	Quantity
1	Pump head (cooling end)	P200-600	1 piece
2	Transmission case	D200-600	1 piece
3	Belt pulley mechanism		1 set
4	Skid base		1 set
5	Speed-regulation motor		1 piece
6	Liquid feeding metal soft hose	JRD40L-300	1 set
7	Return gas metal soft hose	JRD25L-300	1 set
8	Spare parts and special tools		1 set
9	User's manual		1 piece
10	Control cabinet		1 piece

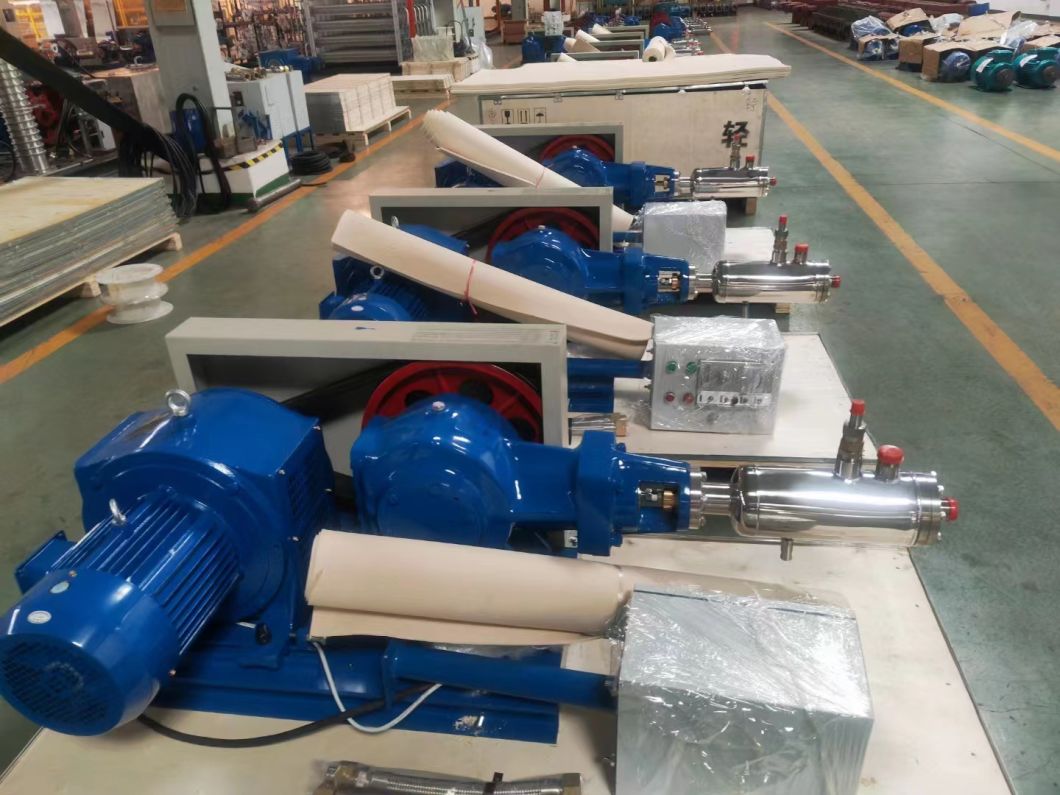

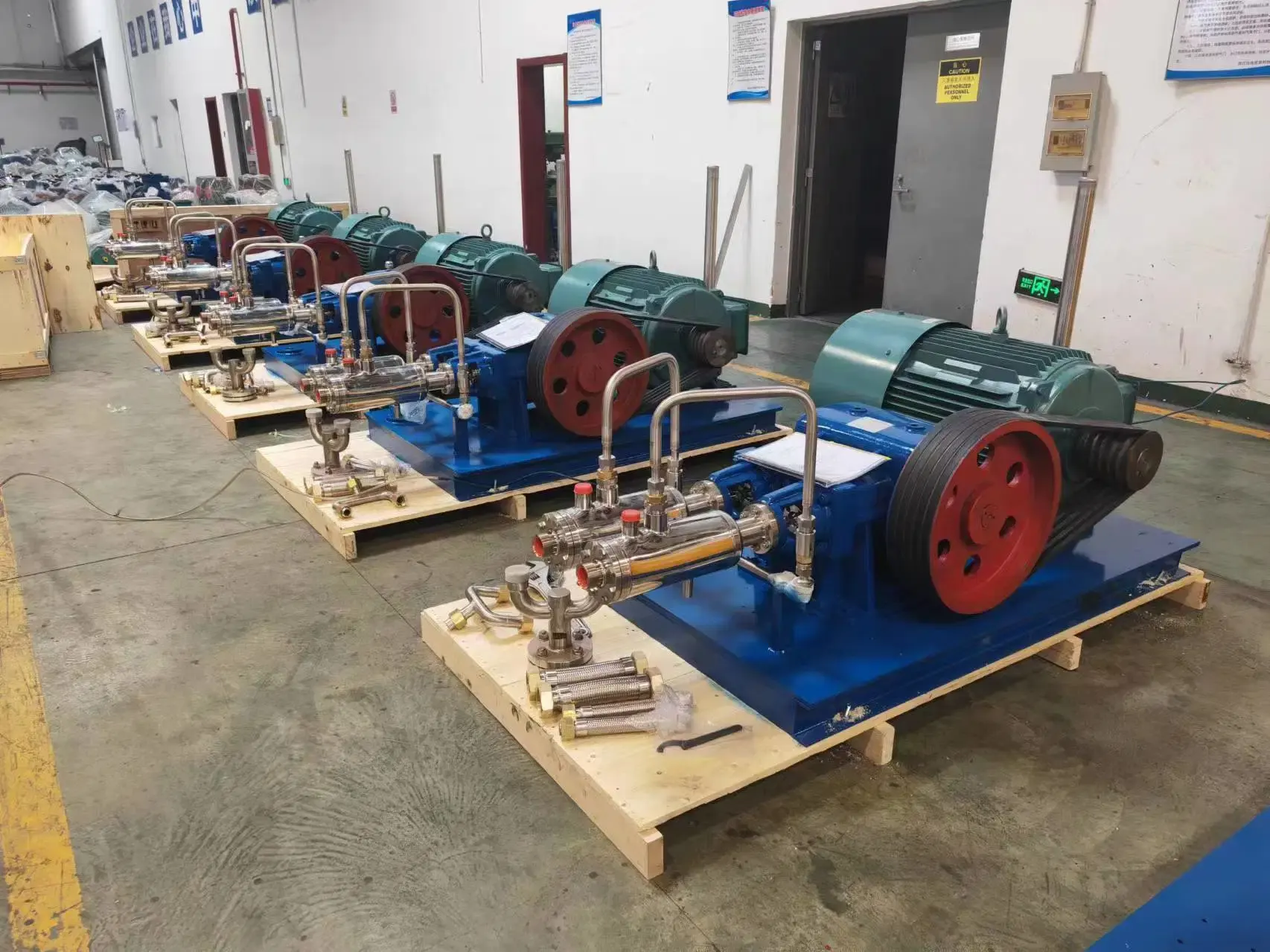

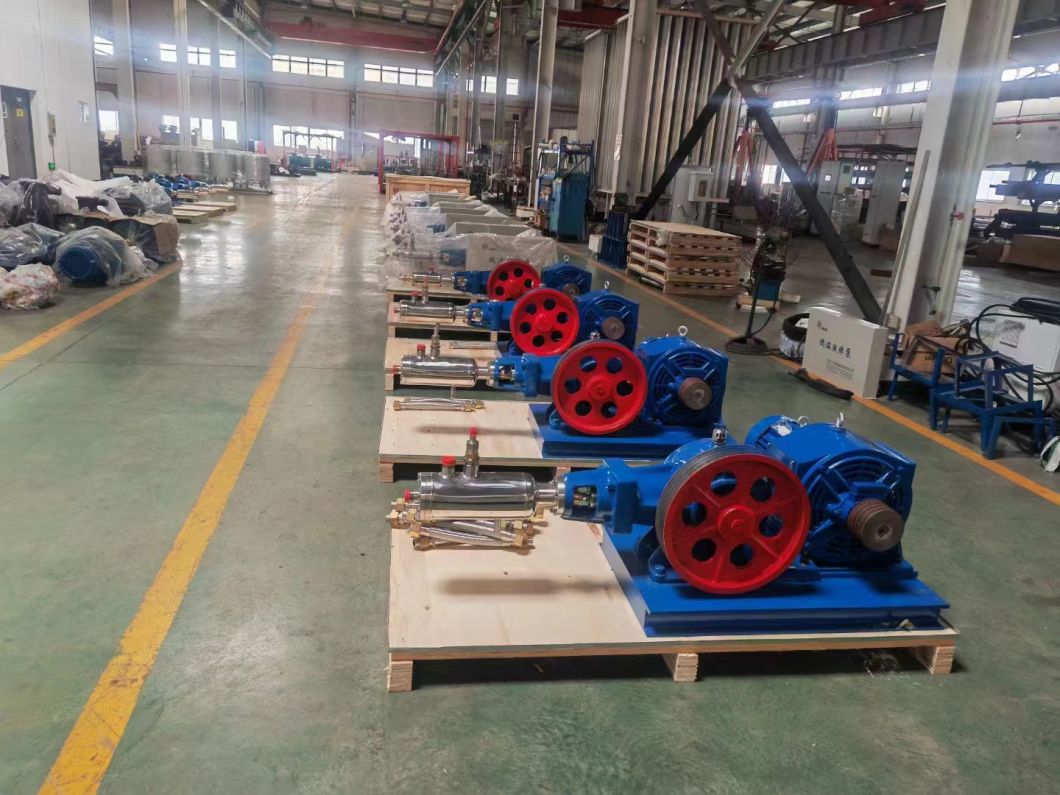

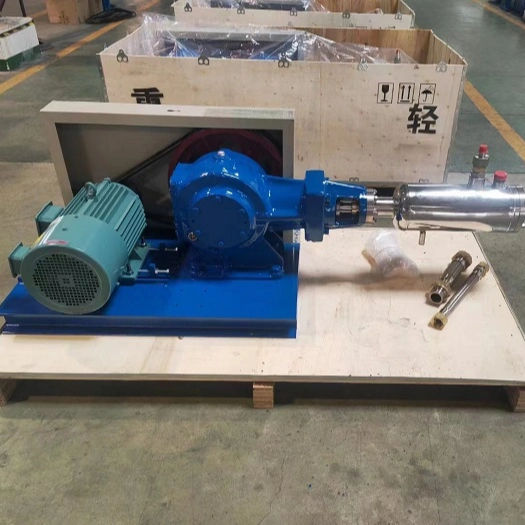

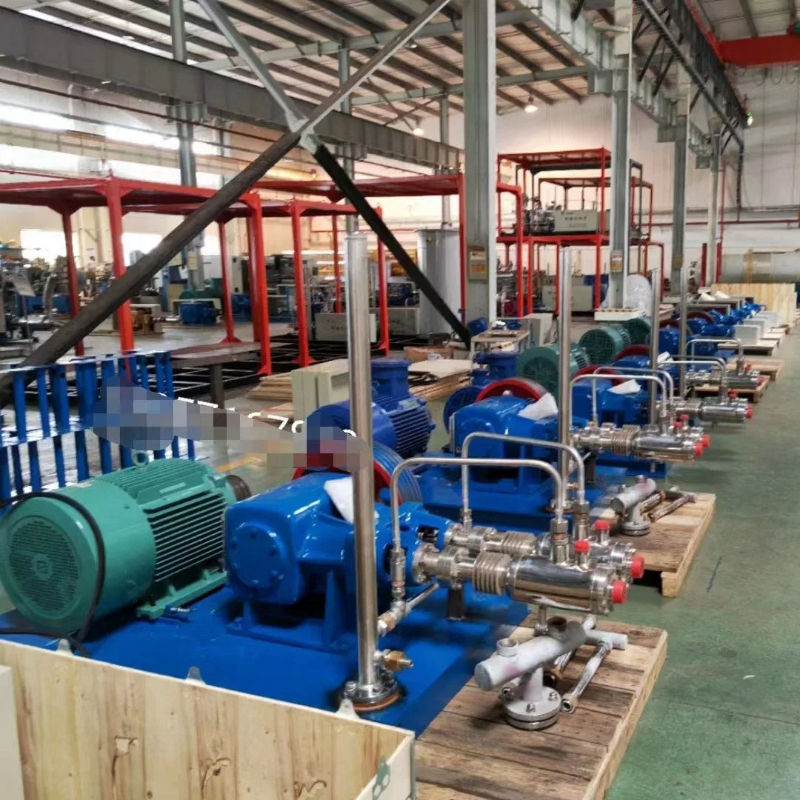

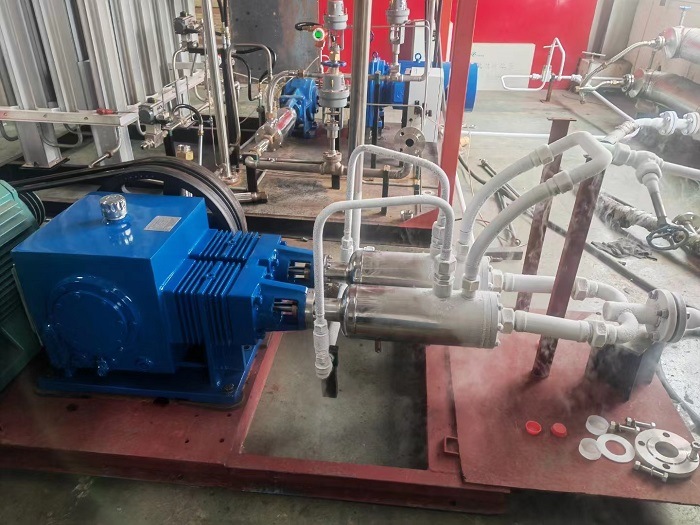

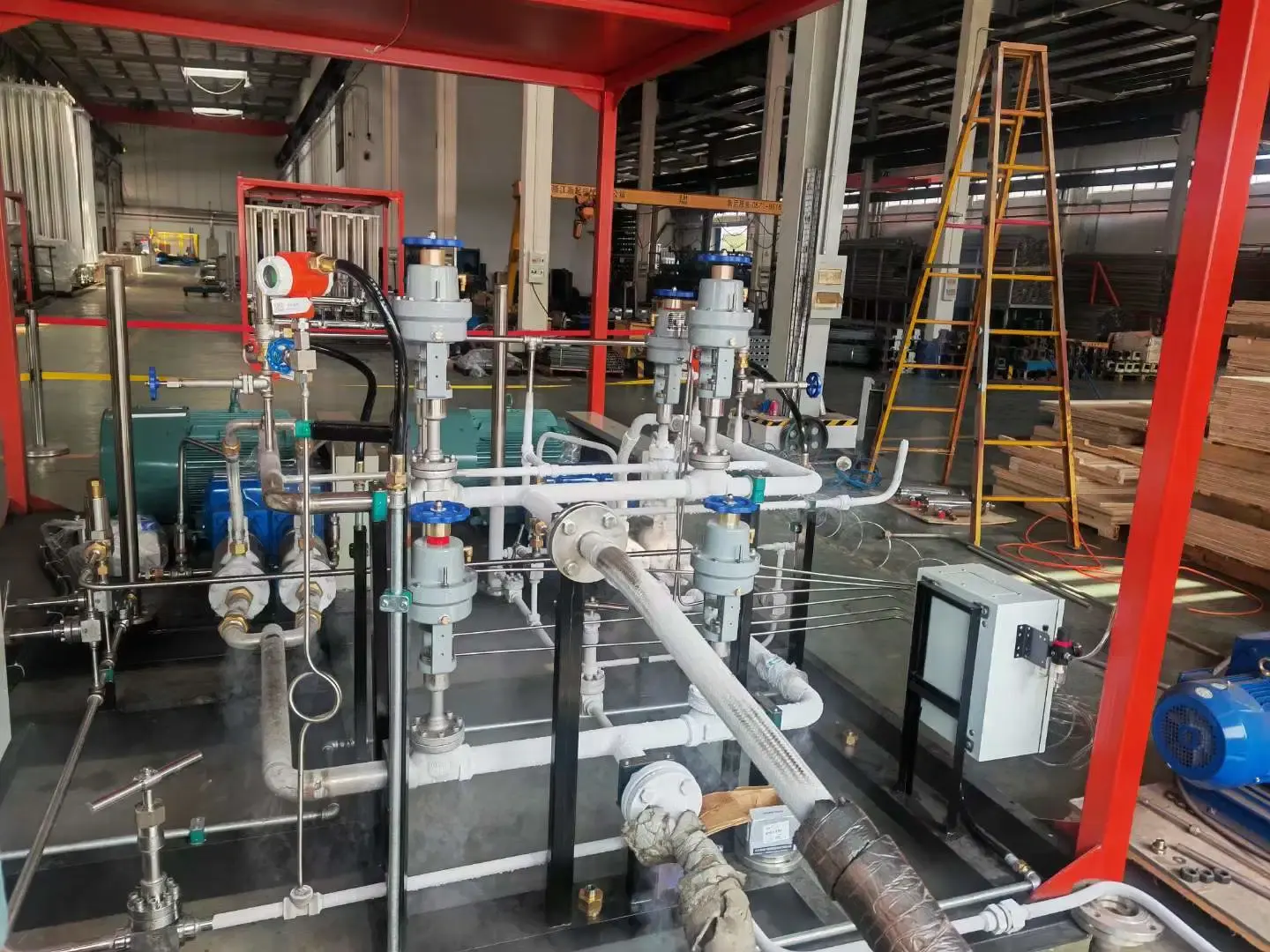

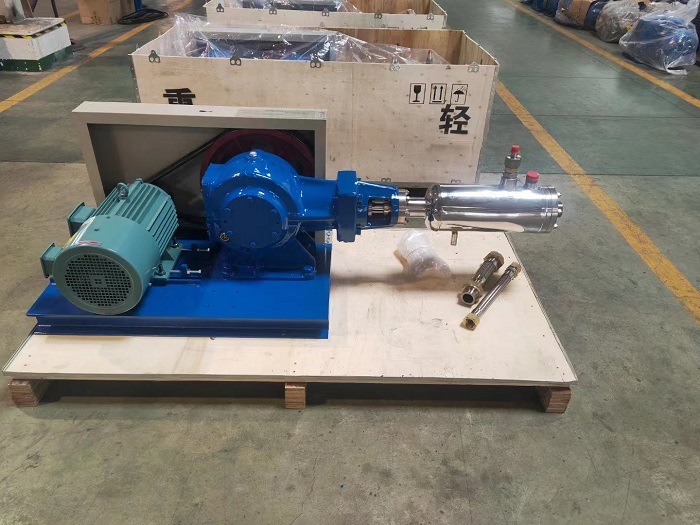

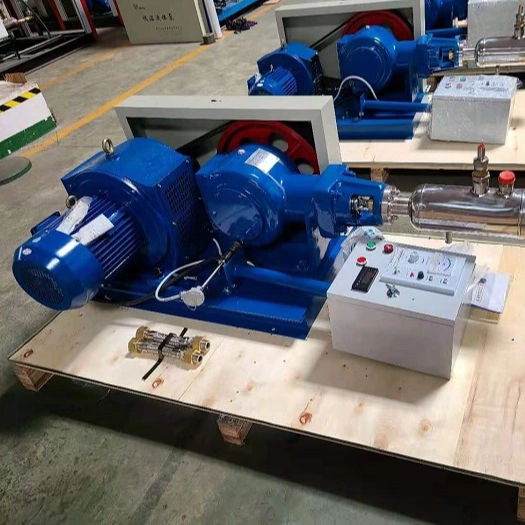

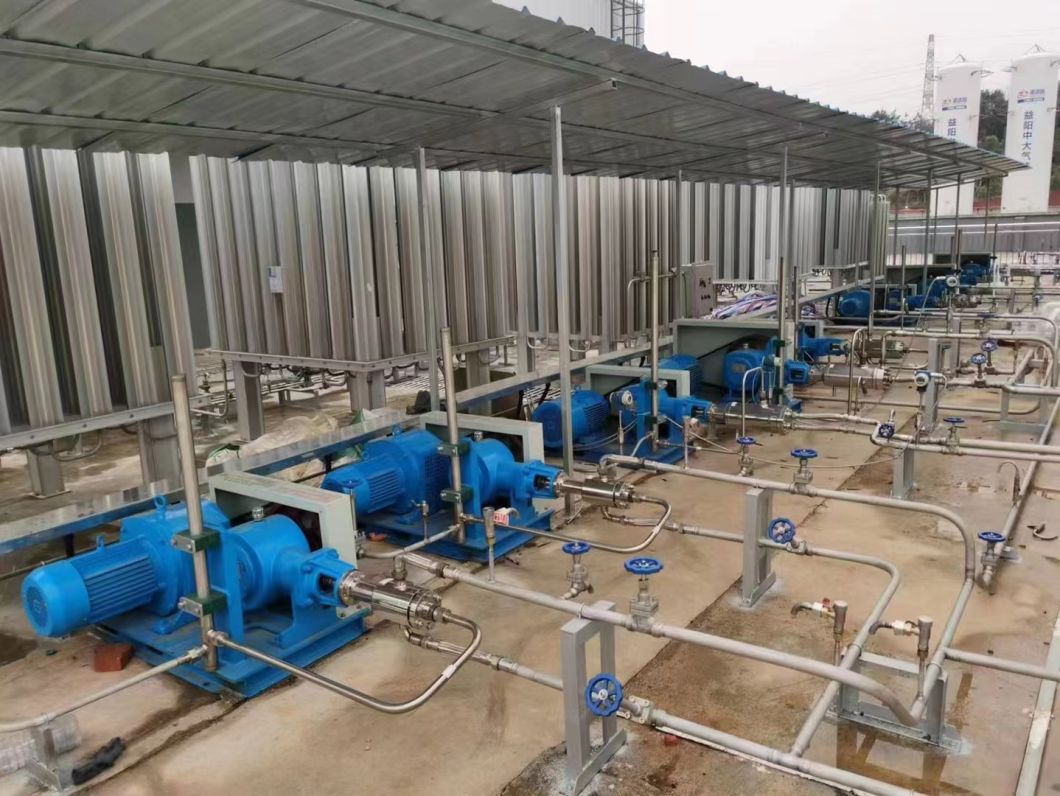

Detailed Photos

Customers

Huahang can provide a wide range of services that we take into account, so that customers can use them daily for the purposes required to perform their specific tasks and/or activities.

We exported our industrial gas equipment to customers all over the world. In the past few years, we cooperated with customers from Brazil, Ecuador, Colombia, Paraguay, Chile, Indonesia, UAE, Ukraine, Syria, Guinea, Russia, Sudan, Angola, etc. We always create the opportunities for win-win business cooperation with our international customers.

Cryogenic Pump CE Certified Liquid Oxygen/ Nitrogen/ Argon/ CO2/ LNG Piston Pump

Certifications

With advanced technologies and strict quality management, our products have passed the major international third-party quality control certifications such as ASME, CE, and Famous classification society such like BV, TUV, Lloyds and etc.

1. Which countries you can ship the equipment to?
We ship to worldwide, such as Russia, Paraguay, Brazil, Colombia, Indonesia, Middle East, Africa, etc.

2. May I have the best price from you?
Sure. We are always on the way of promoting our competitiveness on products price and service.

3. Is your equipment quality good?
Yes. With advanced technologies and strict quality management, our products have passed the major international third-party quality control certifications such as ASME, CE, and Famous classification society such like BV, TUV, Lloyds

4. Do you provide one-stop service so I can save my time and labor?
Yes. Huahang constantly strengthens its supply chain capabilities and resource integration capabilities. You will own a professional team in China by cooperating with Huahang.

5. Where is your company located?
Our Export Office is located in Guangzhou, with associated factories across China. This helps our international clients to integrate all the high quality resources together with Huahang.
