High Accuracy Kobold Mini-Bypass Level Indicator NZJ S04G2000 Magnetic Water Liquid Level Indicator Tank Level Gauge
Product descriptions from the supplierProduct DescriptionMini-Bypass Level Indicator NZJThe NZJ type glass tube level indicator is applicable for the indication of liquid level in small standing or lying roundcontainers used in pharmaceutical and chemical industries. The loads occurring at the insta......
Product descriptions from the supplier
Product Description
Mini-Bypass Level Indicator NZJ
The NZJ type glass tube level indicator is applicable for the indication of liquid level in small standing or lying round
containers used in pharmaceutical and chemical industries. The loads occurring at the installation are absorbed by the outerarmature, thus the glass tube is protected against breaking. The outer armature also protects the glass tube against the mechanical impacts that may occur following the installation.
Installation length means the distance between the horizontal centre lines of the two threaded stubs, that is minimum 100 mm, and maximum 540 mm. The bottom, and top sealing of the glass tube is by two O-rings each, the material of which is to be chosen to be chemically compatible with the liquid measured. Standard sealing material is NBR, whereas FPM, EPDM or PTFE are available on request.
The level indicator may be furnished with capacitive level sensors which monitor the Min. / Max. level or any level along the scale. The scale can be printed on a foil and to be attached to the glass tube.
containers used in pharmaceutical and chemical industries. The loads occurring at the installation are absorbed by the outerarmature, thus the glass tube is protected against breaking. The outer armature also protects the glass tube against the mechanical impacts that may occur following the installation.
Installation length means the distance between the horizontal centre lines of the two threaded stubs, that is minimum 100 mm, and maximum 540 mm. The bottom, and top sealing of the glass tube is by two O-rings each, the material of which is to be chosen to be chemically compatible with the liquid measured. Standard sealing material is NBR, whereas FPM, EPDM or PTFE are available on request.
The level indicator may be furnished with capacitive level sensors which monitor the Min. / Max. level or any level along the scale. The scale can be printed on a foil and to be attached to the glass tube.
Specification
Type | New and orginal |
Installation length | 100 ... 540 mm |
P max | 16 bar |
T max | 100°C |
Viscosity | max. 50 mm²/s |

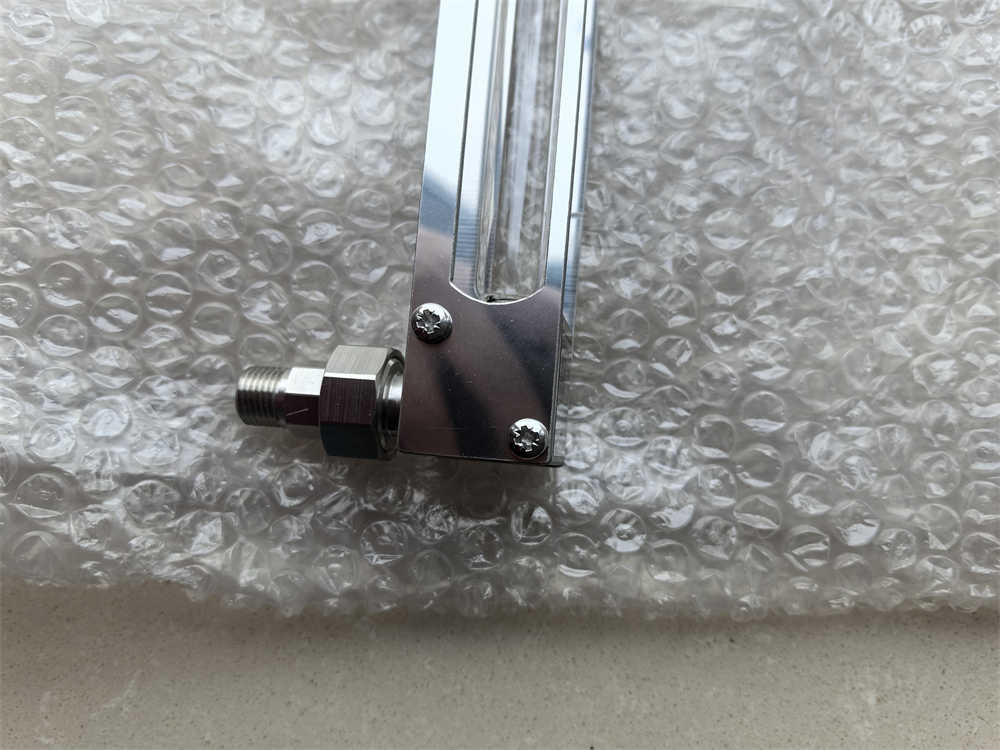

Connection | G ¼, ¼" NPT (male) union nut |
Material | stainless steel (1.4301/1.4404) / aluminium |
Options/Feature | local indicator without auxiliary power, limit contacts |
brand name | kobold |
