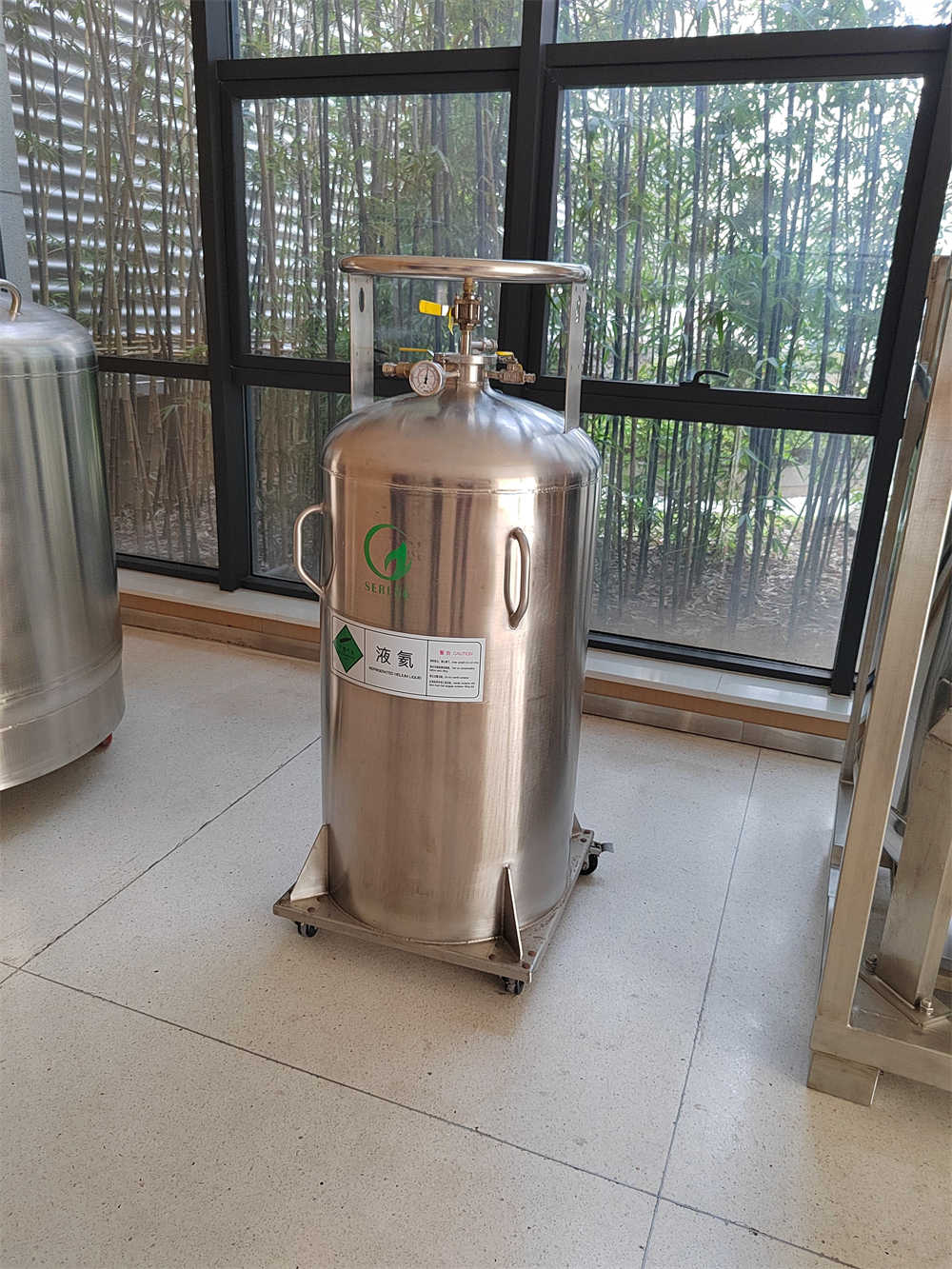

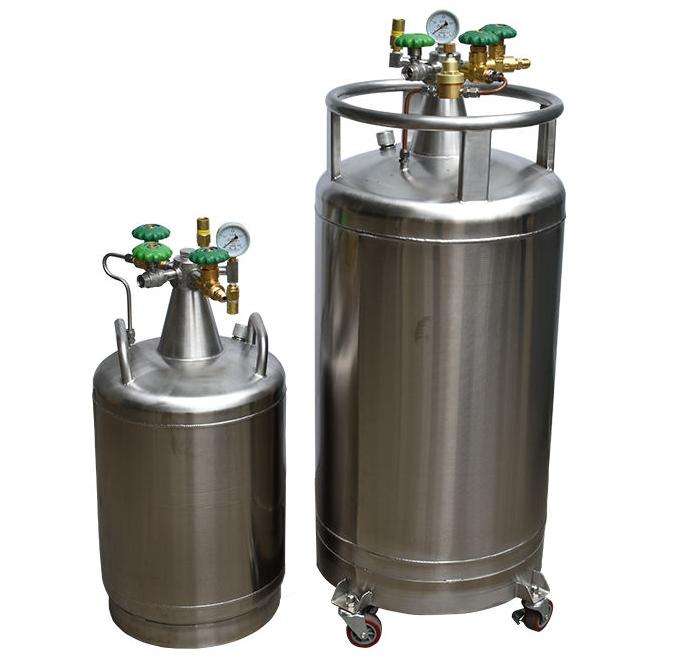

Mini Vacuum Multilayer Insulation Liquid Helium Dewar Liquid Helium Storage tank
Raydafon's Mini Vacuum Multilayer Insulation Liquid Helium Dewar ensures superior storage with advanced tech, ideal for labs and researchers. Experience reliable, compact design that boosts efficiency and peace of mind—choose innovation for your helium needs.

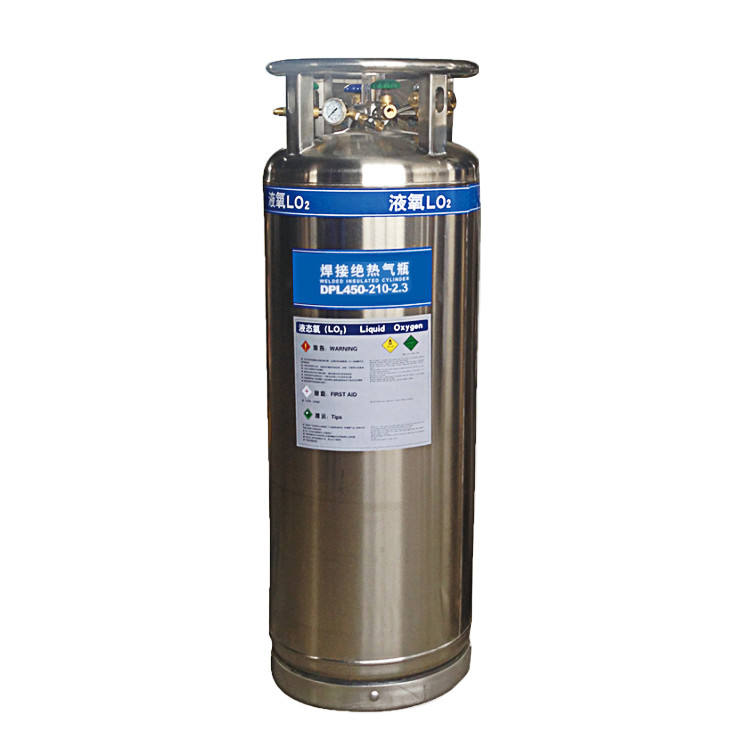

Cryogenic Liquid Cylinder
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG Liquid helium
* Vaporizer installed inside can supply 10m3/h gas continuously
* Adopt the international standard connectors, all valves are imported brands.
* We can customize according to the customers.
* Damping ring design to make sure the transportation safely
* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy
/research/fish-heat preservation, etc.
Compared with compressed gas cylinders, Dewar tanks can hold a large amount of gas at a relatively low pressure
Advantages:
* Ideal for liquid nitrogen, oxygen, argon, CO2, nitrous oxide, Helium
* Different sizes, pressure, and features to meet your needs
* Stainless steel bottle construction
* Thick, dent-resistant outer shell
* Durable inner-vessel support system
* Heavy-duty footring and large diameter handling ring with four supports
* Ideal for liquid nitrogen, oxygen, argon, CO2, nitrous oxide, Helium
* Different sizes, pressure, and features to meet your needs
* Stainless steel bottle construction
* Thick, dent-resistant outer shell
* Durable inner-vessel support system
* Heavy-duty footring and large diameter handling ring with four supports
Specification
|
Model
|
hh-100
|
hh-250
|
hh-315
|
hh-500
|
|
Geometric Volume(L)
|
110
|
275
|
350
|
550
|
|
Effective Volume(L )
|
100
|
275
|
315
|
500
|
|
NER(%/天)
|
1.25
|
1.00
|
1.00
|
1.00
|
|
Working Pressure(Psig)
|
10
|
10
|
10
|
10
|
|
Diameter(mm)
|
610
|
860
|
860
|
1110
|
|
Height(mm)
|
1527
|
1712
|
1835
|
1821
|
|
Empty weight(Kg)
|
113
|
180
|
192
|
277
|
|
The length from flange to the bottom of the inner vessel(mm)
|
1132
|
1310
|
1473
|
1421
|
|
Main Relief Valve Setting(Psig)
|
10
|
10
|
10
|
10
|
|
Secondary Relief Valve Setting(Psig)
|
12
|
12
|
12
|
12
|
Recommend Products

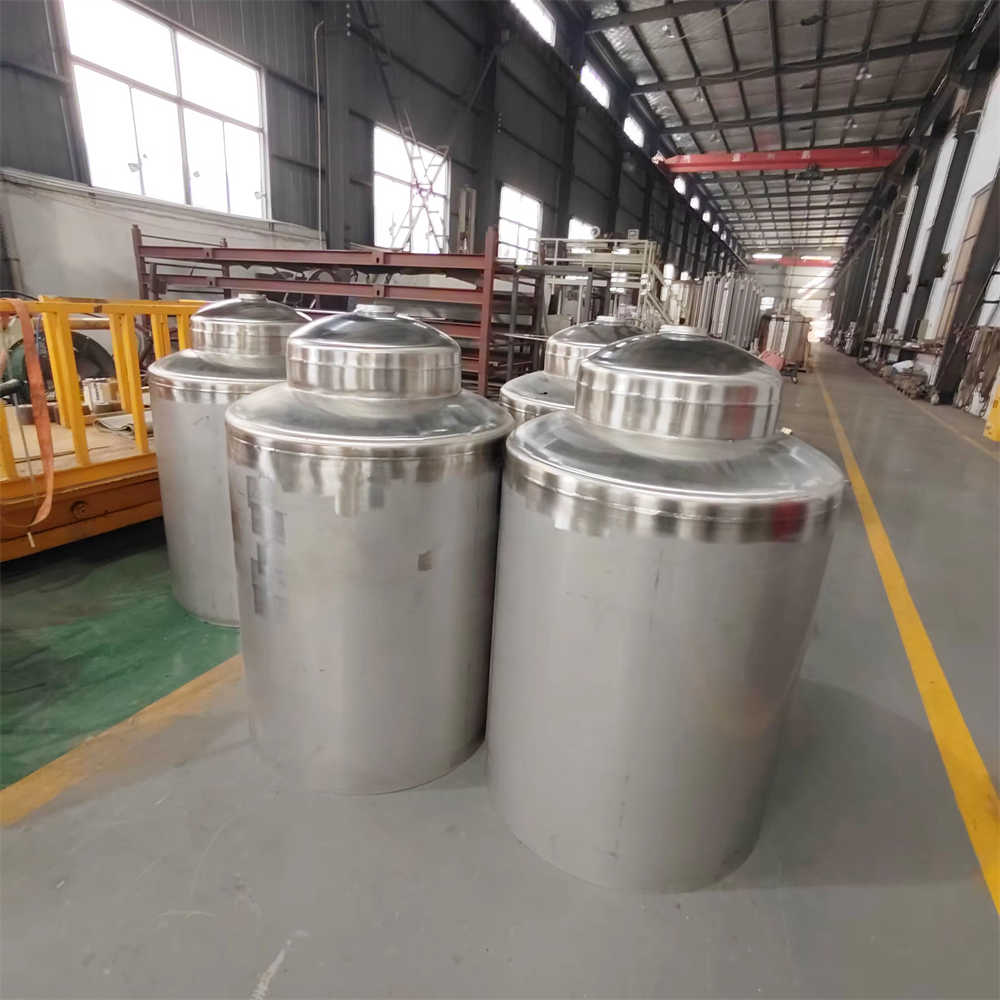

Manufacturing Technique
Our Advantages

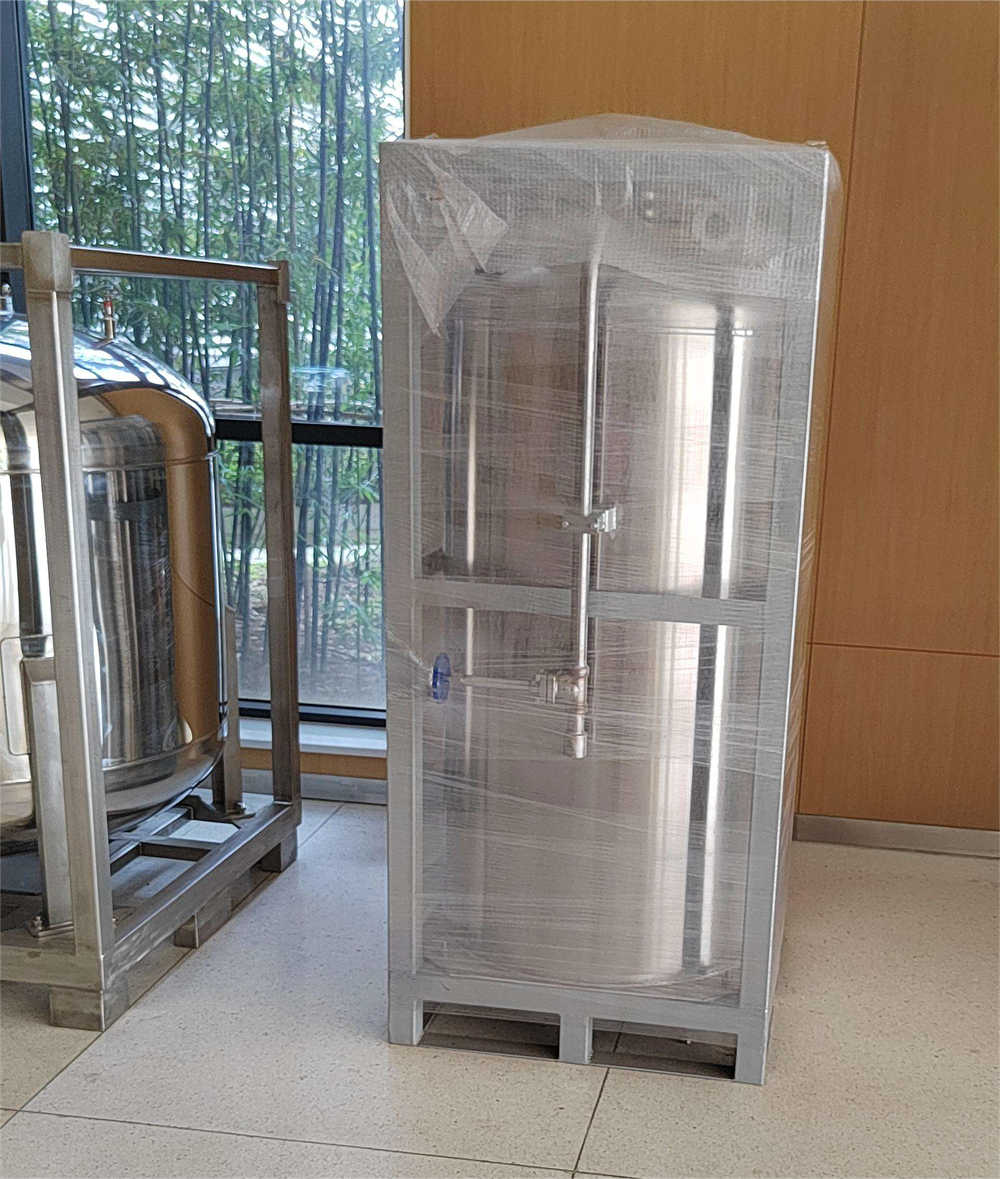

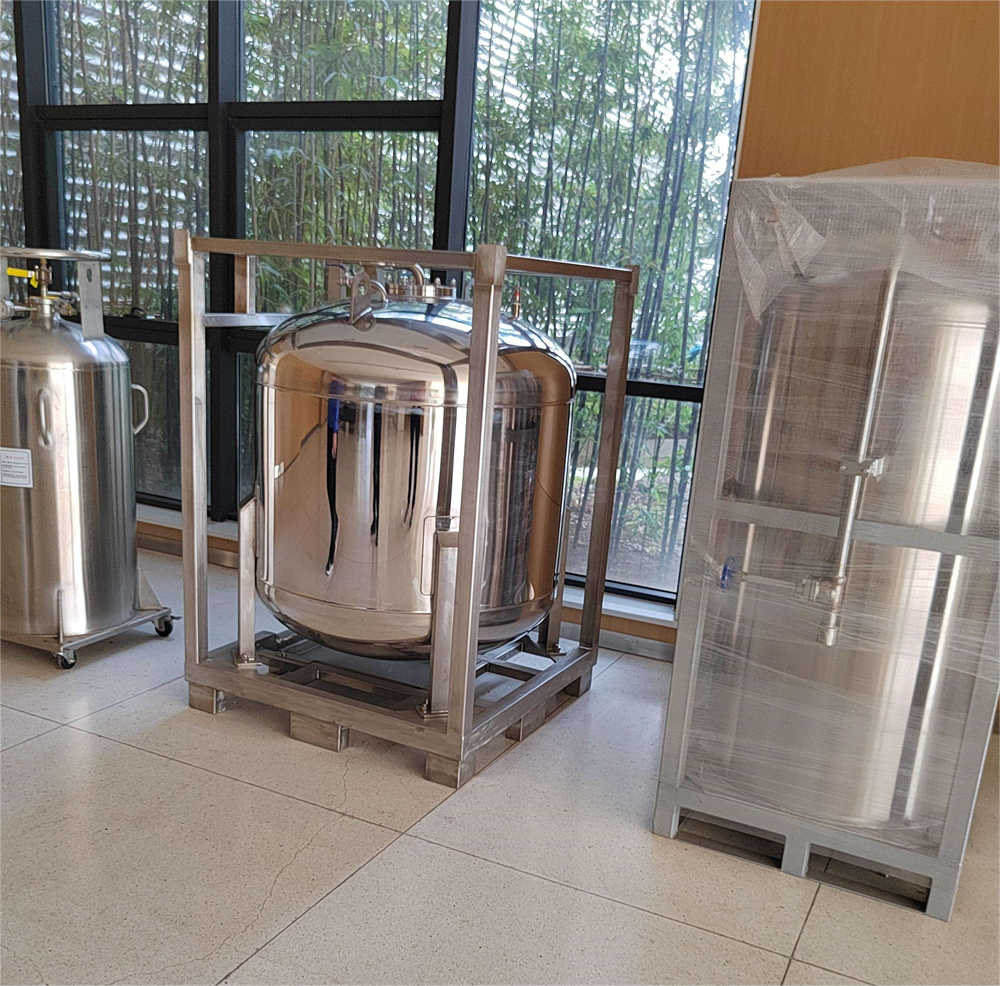

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Hot Tags: Mini Liquid Helium Dewar Supplier, Multilayer Insulation Helium Storage Tank Manufacturer, Custom Liquid Helium Dewar Wholesale
