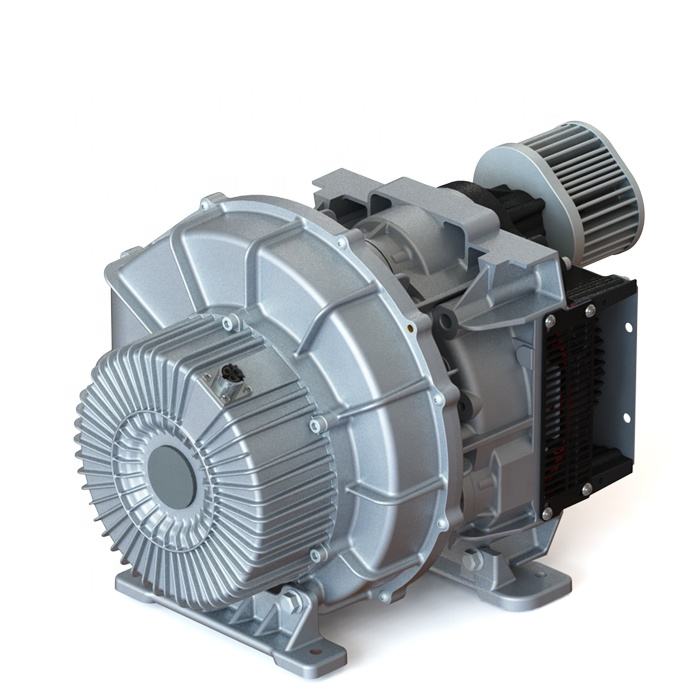

Scroll Air Compressor with 100% OIL-FREE and Oil Contamination AIR Scroll Air Compressor Gardner Denver
Product descriptions from the supplierProduct DescriptionScroll Oil-less air compressors have become a standard in industries such as medical, lab/research, biotechnology, pharmaceutical,food & beverage, and semiconductor. Oil contamination is extremely detrimental to these processes. Pure air q......
Product descriptions from the supplier
Product Description
Scroll Oil-less air compressors have become a standard in industries such as medical, lab/research, biotechnology, pharmaceutical,food & beverage, and semiconductor. Oil contamination is extremely detrimental to these processes. Pure air quality demands are rapidly growing with new regulations and laws regarding oil contamination throughout multiple industries and applications. The Scroll compressor specifically for these applications that require 100% OIL-FREE AIR.
* Extremely Quiet Operation
* Fewer Moving Parts, Low Maintenance & High Reliability
* Environmentally Friendly Contaminate Free Air
Scroll Compression:
* Fewer Moving Parts, Low Maintenance & High Reliability
* Environmentally Friendly Contaminate Free Air

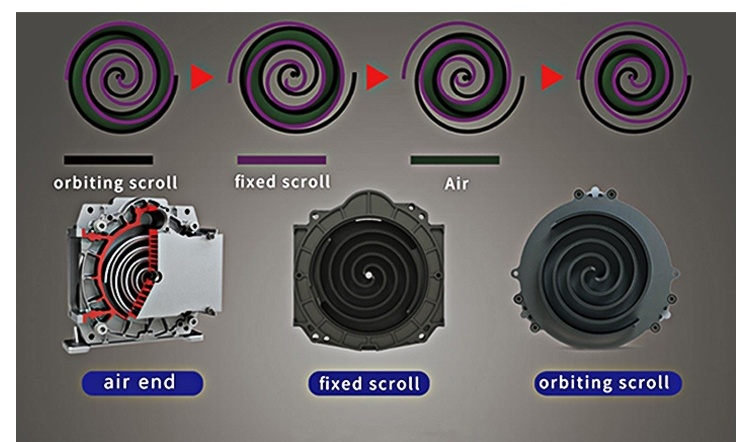

Scroll Compression:

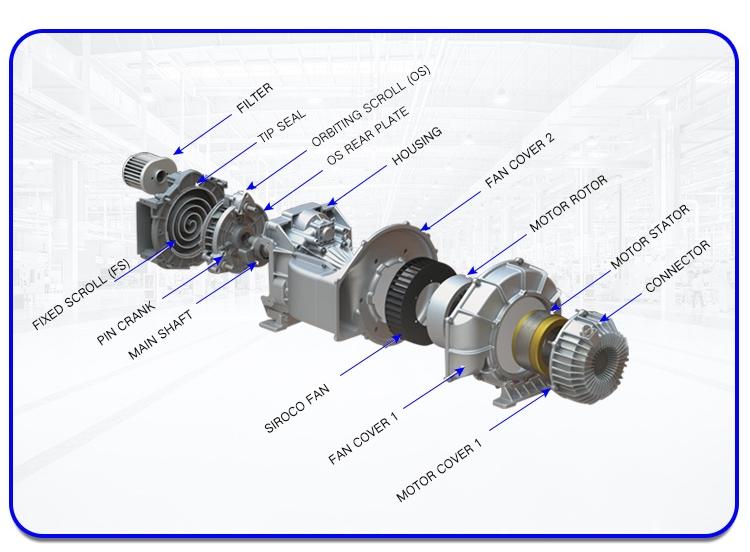

* An orbiting (rotating) scroll and fixed scroll housing are mated to created the compression chambers
* The continual movement of the orbiting scroll moves atmospheric air from the intake toward the center, compressing the air into progressively smaller areas
* The compressed air is directed to the center discharge port of the compressor
Scroll Compressor Features
* The continual movement of the orbiting scroll moves atmospheric air from the intake toward the center, compressing the air into progressively smaller areas
* The compressed air is directed to the center discharge port of the compressor
Scroll Compressor Features
* 100% Oil-Less Design
* Oil-Free/Contaminant Free Air
* Continuous Operation, 100% Duty Cycle
* Integral Cooling Fan
* Low Sound Levels
* Low Vibration
* Compact Footprint
* Low Maintenance and High Reliability
Eliminate the Risk Guaranteed 100% Oil-Free There is no oil present anywhere in the compressor package, which completely eliminates the risk of product contamination due to oil carryover. It meets ISO 8573-1 Class 0, the most stringent class. It is also certified Silicone-Free which is critical for applications such as automotive and pharmaceutical.
Silicone-Free
Silicone contamination in compressed air systems cause problems across a wide range of industries such as electronics,
pharmaceuticals and automotive. Costly product spoilage, re-work and production downtime can result from this contamination. For example, a high quality paint finish is essential to the automotive industry. Blisters, cracks, craters and loss of adhesion are all symptoms of silicone contamination.
* Continuous Operation, 100% Duty Cycle
* Integral Cooling Fan
* Low Sound Levels
* Low Vibration
* Compact Footprint
* Low Maintenance and High Reliability
Eliminate the Risk Guaranteed 100% Oil-Free There is no oil present anywhere in the compressor package, which completely eliminates the risk of product contamination due to oil carryover. It meets ISO 8573-1 Class 0, the most stringent class. It is also certified Silicone-Free which is critical for applications such as automotive and pharmaceutical.
Silicone-Free
Silicone contamination in compressed air systems cause problems across a wide range of industries such as electronics,
pharmaceuticals and automotive. Costly product spoilage, re-work and production downtime can result from this contamination. For example, a high quality paint finish is essential to the automotive industry. Blisters, cracks, craters and loss of adhesion are all symptoms of silicone contamination.
* 100% silicone-free, guaranteed
* Specifically designed for use in pure-air critical applications such as the
automotive, food and beverage, pharmaceutical, laboratory, and medical industries
* Avoids contamination and provides the highest air quality standards
* Independently tested and certified
Compresssion Total Package

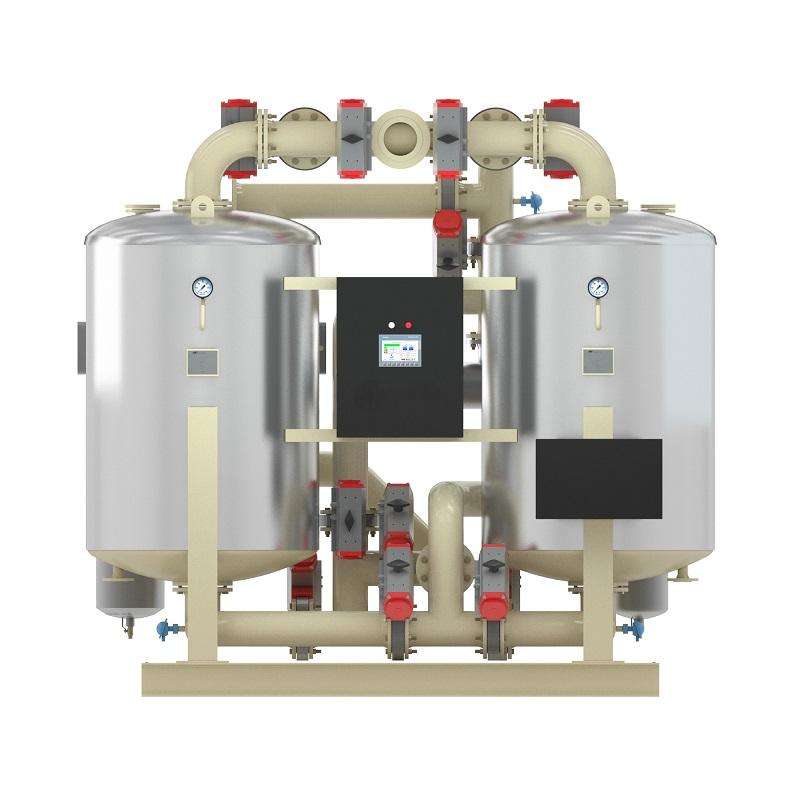

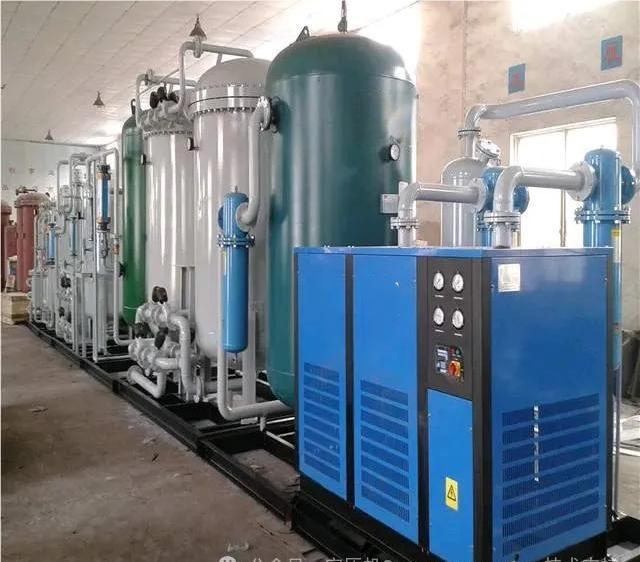

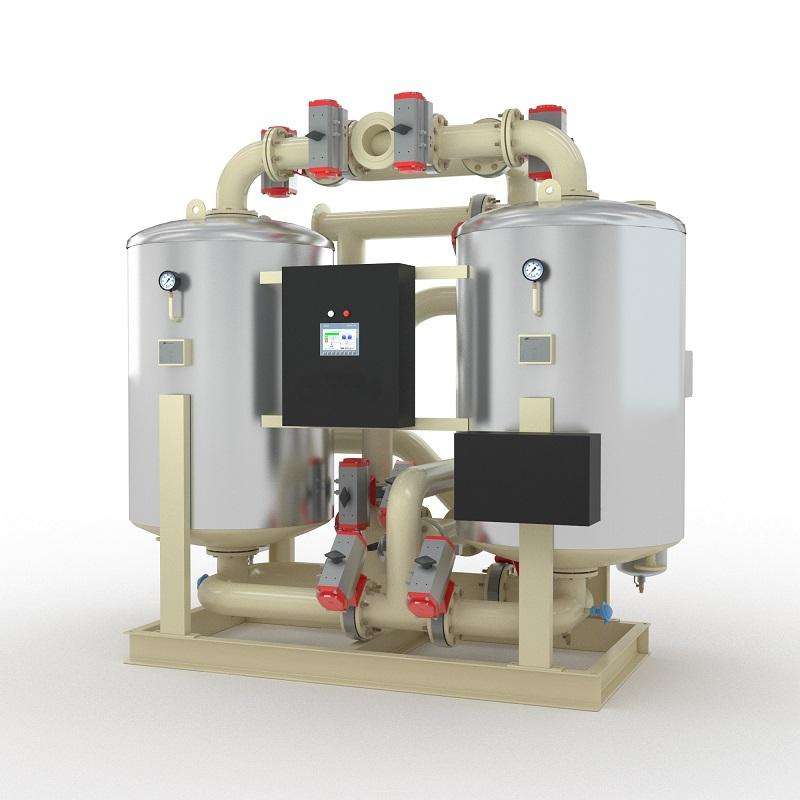

Dryers, Filtration & Downstream Equipment
Compressed air systems require clean dry air with environmentally sound disposal of by-products. Proper removal of contaminates is essential in preventing costly damage to equipment.
We provides a broad range of dryers, filters, separators, drains, and other downstream products to ensure total system
reliability.
* Specifically designed for use in pure-air critical applications such as the
automotive, food and beverage, pharmaceutical, laboratory, and medical industries
* Avoids contamination and provides the highest air quality standards
* Independently tested and certified
Compresssion Total Package
Dryers, Filtration & Downstream Equipment
Compressed air systems require clean dry air with environmentally sound disposal of by-products. Proper removal of contaminates is essential in preventing costly damage to equipment.
We provides a broad range of dryers, filters, separators, drains, and other downstream products to ensure total system
reliability.
Some typical applications and general product arrangements.
Pneumatic Tools
Spray Painting
Food & Beverage
Laboratory
Pharmaceutical
High Tech Laboratory
Medical Equipment
Pneumatic Tools
Spray Painting
Food & Beverage
Laboratory
Pharmaceutical
High Tech Laboratory
Medical Equipment

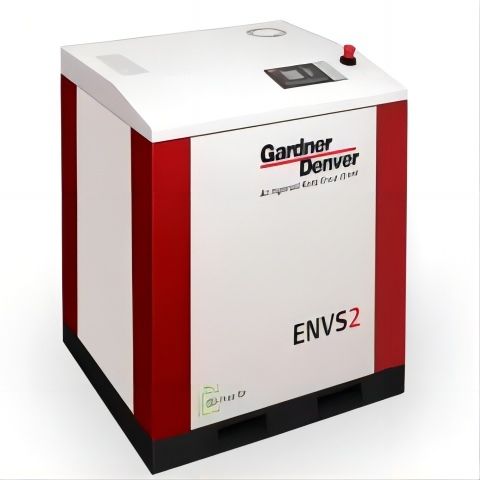

Specification
Model | Maximum Pressure barg | Rated Motor Power kw | Air Flow m3/min | Interface Size | Dimensions L*W*H mm | Weight kg | Noise Level dB(A) | |
ENVS2-A8 | 8 | 2.2 | 0.24 | 1/2'' | 830*740*910 | 204 | 58 | |
ENVS2-A10 | 10 | 2.2 | 0.21 | 1/2'' | 204 | 58 | ||
ENVS4-A8 | 8 | 3.7 | 0.40 | 1/2'' | 231 | 58 | ||
ENVS5-A8 | 8 | 5.5 | 0.60 | 1/2'' | 240 | 59 | ||
ENVS5-A10 | 10 | 5.5 | 0.53 | 1/2'' | 240 | 59 | ||
ENVS7-A8 | 8 | 7.7 | 0.84 | 1'' | 1445*800*1000 | 438 | 62 | |
ENVS7-A10 | 10 | 7.7 | 0.74 | 1'' | 438 | 62 | ||
ENVS11-A8 | 8 | 11 | 1.20 | 1'' | 495 | 64 | ||
ENVS11-A10 | 10 | 11 | 1.06 | 1'' | 495 | 64 | ||
ENVS17-A8 | 8 | 16.5 | 1.89 | R1 | 1280*770*1480 | 515 | 61 | |
ENVS17-A10 | 10 | 16.5 | 1.50 | R1 | 515 | 61 | ||
ENVS22-A8 | 8 | 22 | 2.52 | R1 | 1330*880*1990 | 720 | 61 | |
ENVS22-A10 | 10 | 22 | 2.00 | R1 | 720 | 61 | ||
ENVS33-A8 | 8 | 33 | 3.78 | R1.5 | 1360*1030*1670 | 1000 | 63 | |
ENVS33-A10 | 10 | 33 | 3.00 | R1.5 | 1000 | 63 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
1.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
2.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
3.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
