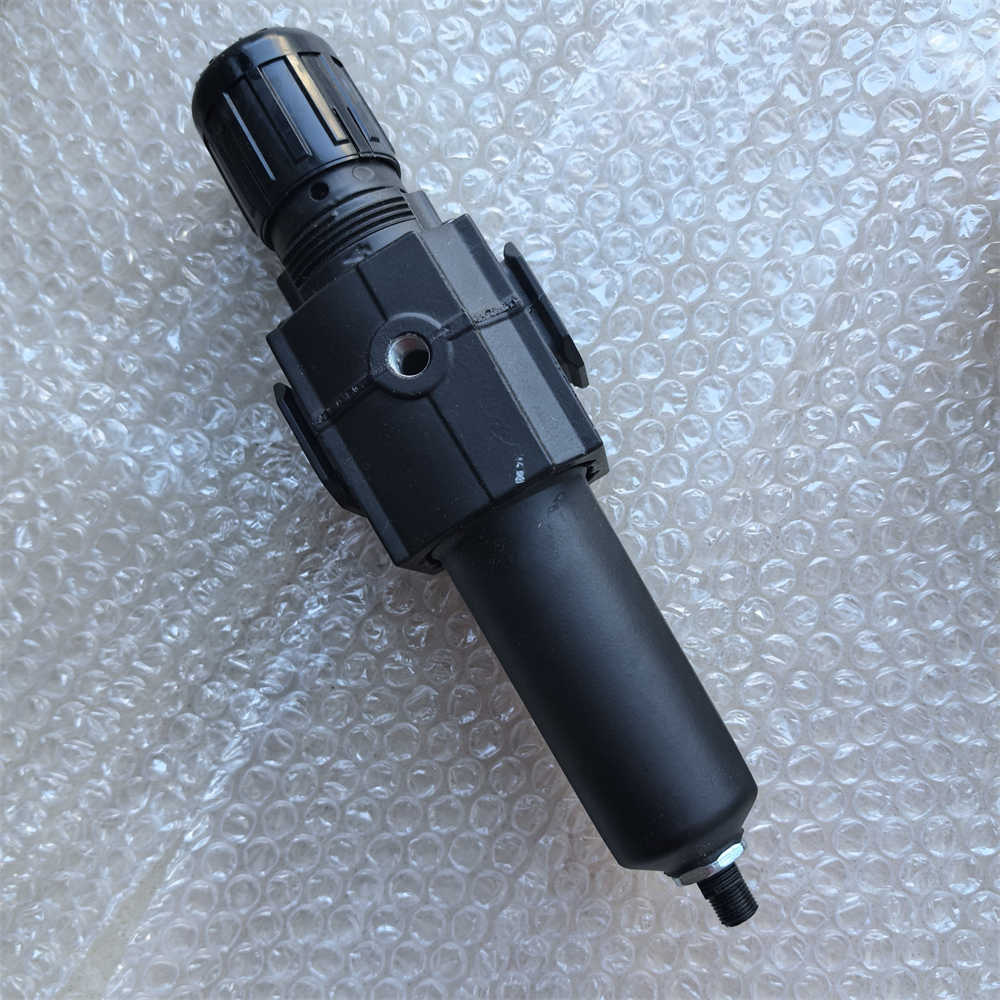

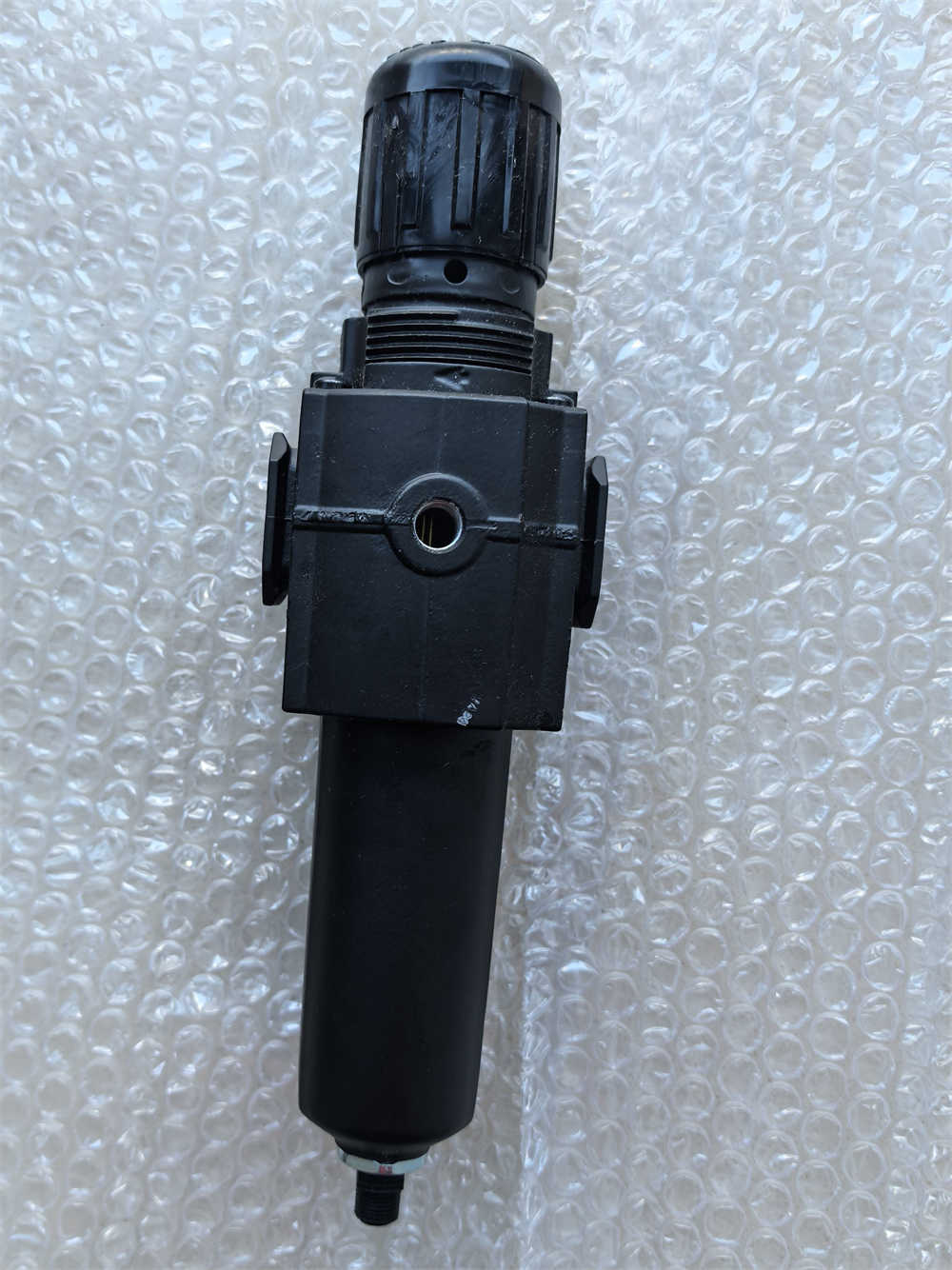

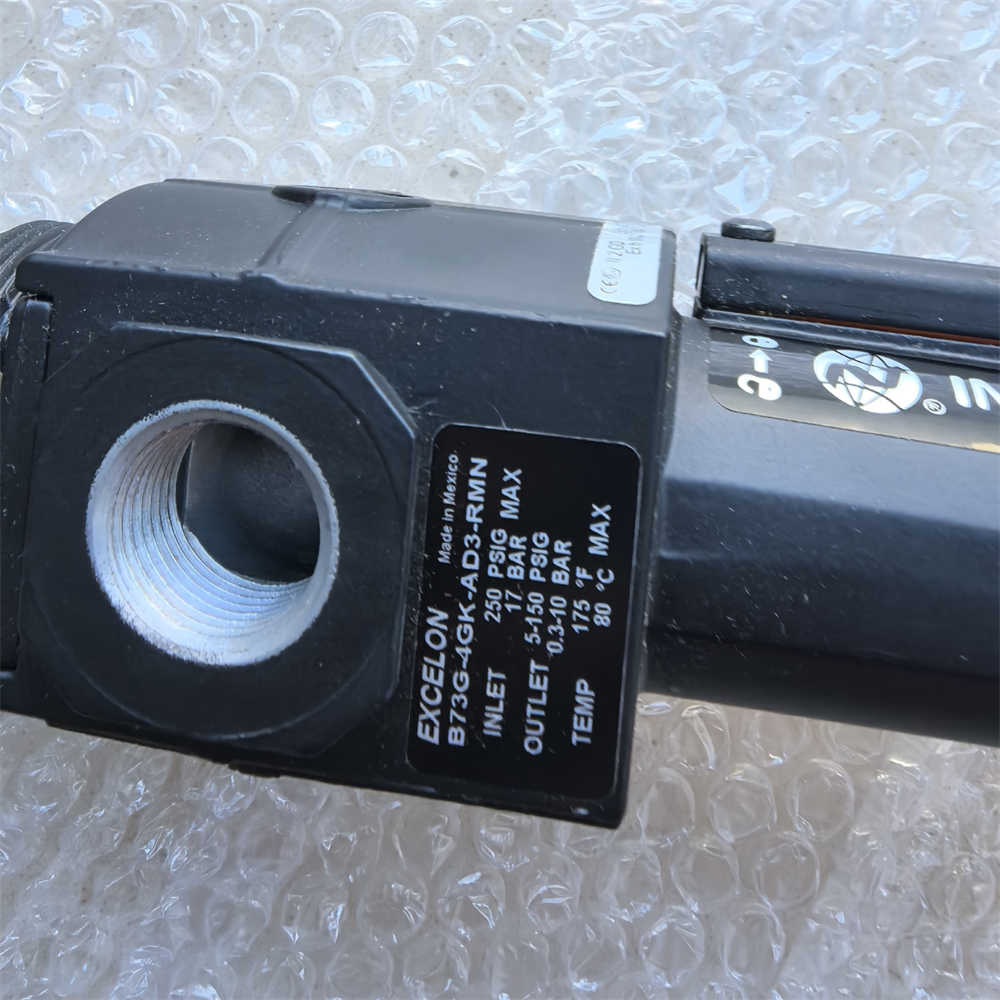

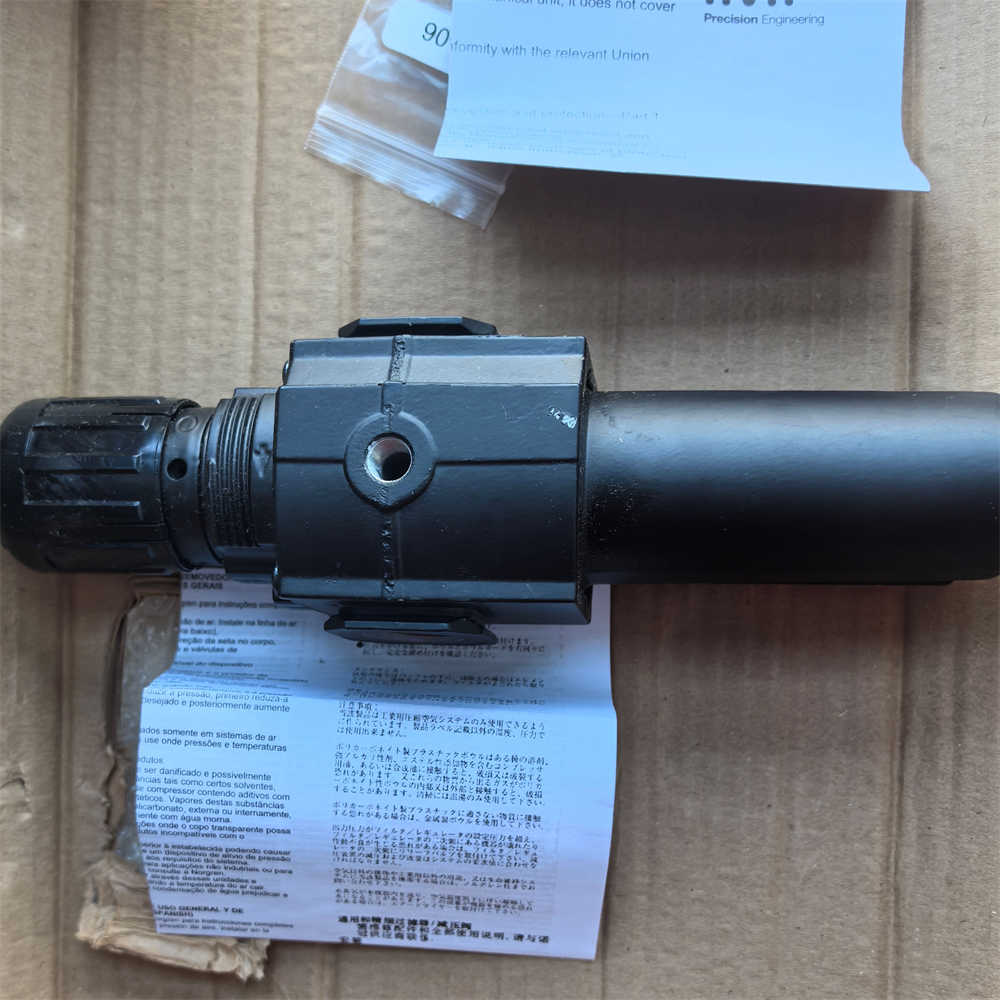

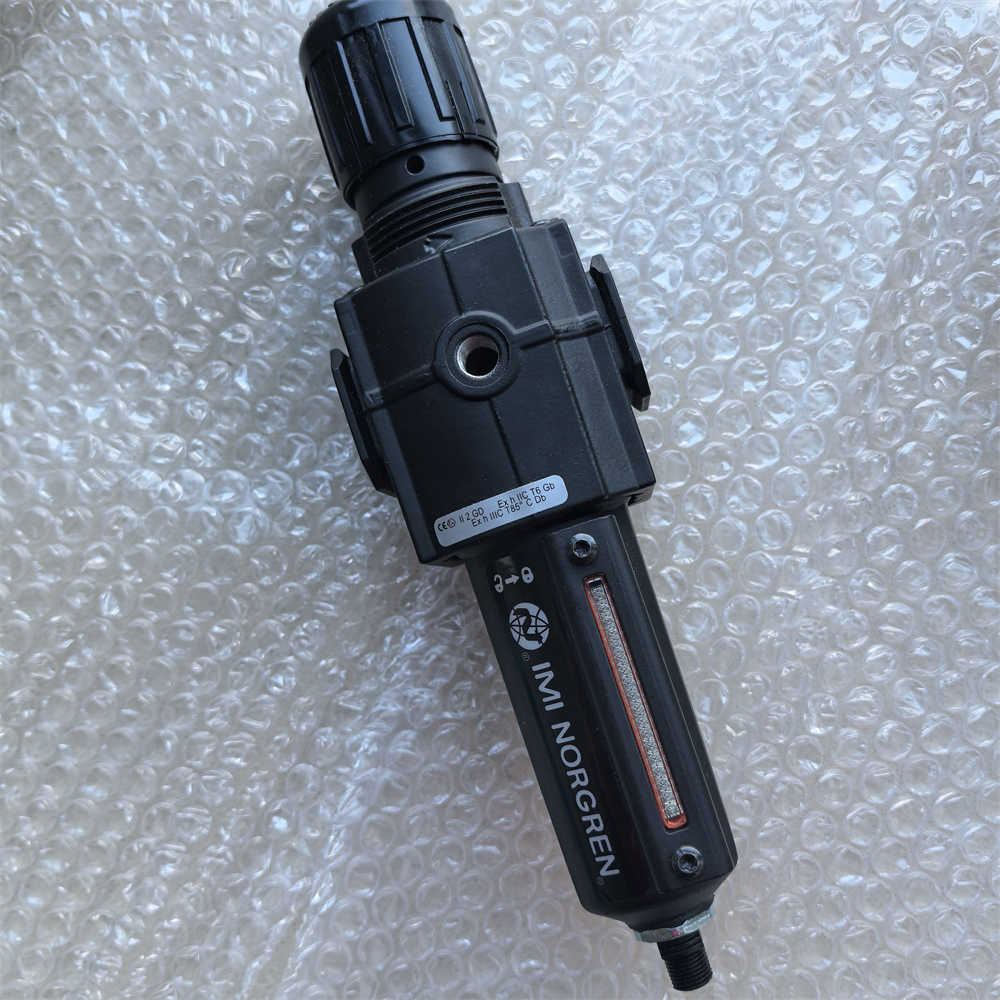

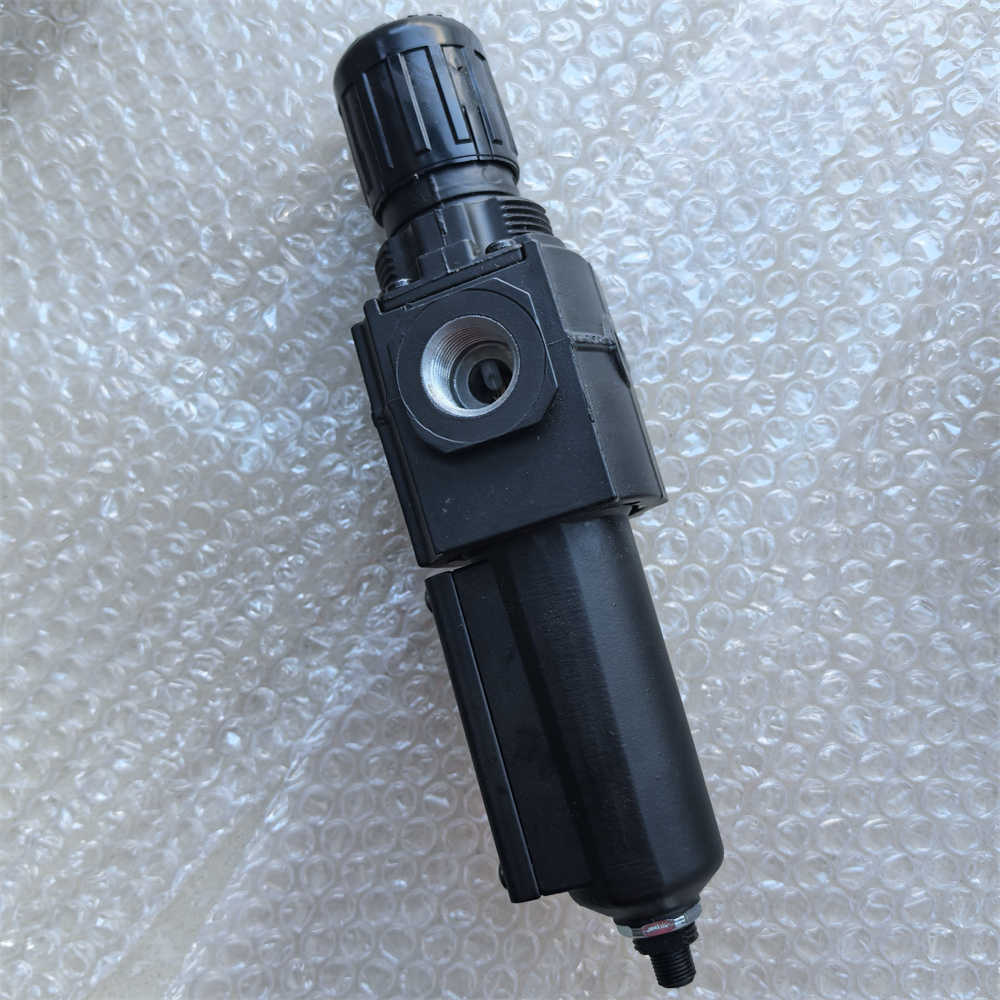

Original New Filter/Regulator IMI Norgren EXCELON B73G-4GK-AD3-RMN With Gauge B73G-3GK-AD1-RMN B73G Series
Product descriptions from the supplierProduct DescriptionB73G - EXCELON Modular System General purpose filter/regulatorPort size: 1/4” ... 1/2” (ISO G/PTF) > Excelon design allows in-line installation or modular installation with other Excelonproducts > High efficiency water and particle remov......
Product descriptions from the supplier
Product Description
B73G - EXCELON Modular System General purpose filter/regulator
Port size: 1/4” ... 1/2” (ISO G/PTF) > Excelon design allows in-line installation or modular installation with other Excelon
products > High efficiency water and particle removal > Quick release bayonet bowl Push to lock adjusting knob with tamper resistant accessory > Metal bowl with prismatic liquid level indicator lens
> Port size: 1/4” ... 1/2” (ISO G/PTF)
> Excelon design allows in-line installation or modular installation with other Excelon products
> High efficiency water and particle removal
> Quick release bayonet bowl
> Push to lock adjusting knob with tamper resistant accessory
> Metal bowl with prismatic liquid level indicator lens Technical data B73G - standard models
Symbol Port size Size Drain Pressure range Filter element Bowl Weight Model
(bar) (psi) (μm) (kg)
G1/4 — Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-2GK-QT3-RMN
G3/8 Basic Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-3GK-QT3-RMN
G1/2 — Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-4GK-QT3-RMN
G1/4 — Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-2GK-AT3-RMN
G3/8 Basic Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-3GK-AT3-RMN
G1/2 — Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-4GK-AT3-RMN
Medium: Compressed air only
Maximum operating pressure: Transparent bowl: 10 bar (145 psi) Metal bowl: 17 bar (246 psi)
Pressure range: 0,3 ...10 bar (4 ... 145 psi); 0,3 ... 4 bar (4 ... 58 psi) optional; 0,7 ... 17 bar (2 ... 250 psi) optional
Filter element: 40 μm standard, 5 μm optional
Port size: G1/4, G3/8, G1/2, 1/4 PTF, 3/8 PTF 1/2 PTF
Gauge port: Rc 1/8 with ISO G main ports 1/4 PTF with PTF main ports
products > High efficiency water and particle removal > Quick release bayonet bowl Push to lock adjusting knob with tamper resistant accessory > Metal bowl with prismatic liquid level indicator lens
Technical features
> Port size: 1/4” ... 1/2” (ISO G/PTF)
> Excelon design allows in-line installation or modular installation with other Excelon products
> High efficiency water and particle removal
> Quick release bayonet bowl
> Push to lock adjusting knob with tamper resistant accessory
> Metal bowl with prismatic liquid level indicator lens Technical data B73G - standard models
Symbol Port size Size Drain Pressure range Filter element Bowl Weight Model
(bar) (psi) (μm) (kg)
G1/4 — Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-2GK-QT3-RMN
G3/8 Basic Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-3GK-QT3-RMN
G1/2 — Manual 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-4GK-QT3-RMN
G1/4 — Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-2GK-AT3-RMN
G3/8 Basic Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-3GK-AT3-RMN
G1/2 — Automatic 0,3 ... 10 4 ... 145 40 PC (transparent) 0,70 B73G-4GK-AT3-RMN
Medium: Compressed air only
Maximum operating pressure: Transparent bowl: 10 bar (145 psi) Metal bowl: 17 bar (246 psi)
Pressure range: 0,3 ...10 bar (4 ... 145 psi); 0,3 ... 4 bar (4 ... 58 psi) optional; 0,7 ... 17 bar (2 ... 250 psi) optional
Filter element: 40 μm standard, 5 μm optional
Port size: G1/4, G3/8, G1/2, 1/4 PTF, 3/8 PTF 1/2 PTF
Gauge port: Rc 1/8 with ISO G main ports 1/4 PTF with PTF main ports
Flow: 50 dm3/s max. at port size: G1/2 10 bar (150 psi) inlet pressure,
set pressure: 6,3 bar (91 psi) Δp: 1 bar (14,5 psi)
Filter element: 40 μm
Relieving: Standard
Drain: Manual or automatic Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: > 0,3 bar (5 psi)
Bowl pressure required to open drain: ≤ 0,2 bar (2.9 psi)
Minimum air flow required to close drain: 0,1 dm3/s (0.2 scfm)
Manual operation: depress pin inside drain outlet to drain bowl
Ambient/Media temperature:
Tranparent bowl: -34° ... +50°C (-30° ... +122°F)
Metal bowl: -34° ... +80°C (-30° ... +176°F)
Version with gauge: -34° ... +65°C (-30 ... +149°F)
Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials: Body: Die cast aluminium Bonnet: Acetal Metal bonnet: Zinc
Valve: Brass
Bowl: transparent PC alternative transparent PC with steel guard alternative aluminium
Liquid level indicator lens (metal bowl): transparent PA
Filter element: sintered PP
Elastomers: CR & NBR
set pressure: 6,3 bar (91 psi) Δp: 1 bar (14,5 psi)
Filter element: 40 μm
Relieving: Standard
Drain: Manual or automatic Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: > 0,3 bar (5 psi)
Bowl pressure required to open drain: ≤ 0,2 bar (2.9 psi)
Minimum air flow required to close drain: 0,1 dm3/s (0.2 scfm)
Manual operation: depress pin inside drain outlet to drain bowl
Ambient/Media temperature:
Tranparent bowl: -34° ... +50°C (-30° ... +122°F)
Metal bowl: -34° ... +80°C (-30° ... +176°F)
Version with gauge: -34° ... +65°C (-30 ... +149°F)
Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials: Body: Die cast aluminium Bonnet: Acetal Metal bonnet: Zinc
Valve: Brass
Bowl: transparent PC alternative transparent PC with steel guard alternative aluminium
Liquid level indicator lens (metal bowl): transparent PA
Filter element: sintered PP
Elastomers: CR & NBR
Specification
Type | New and orginal |
Types | B73G |
Pressure range | 0,3 … 10 bar |
Filter element | 40 μm, 5 μm |
brand name | EXCELON |
