YDS 2L 50B Liquid Nitrogen Storage tank Cryogennic Liquid Nitrogen Dewar with Trolly for Laboratory Transport Shipment
Product descriptions from the supplierProduct DescriptionSmall Capacity Liquid Nitrogen ContainerThese small capacity containers are designed for transferring biological samples stored via manual work. They are light, portable and economical, with lower static evaporation loss.Liquid Nitrogen Storag......
Product descriptions from the supplier
Product Description
Small Capacity Liquid Nitrogen Container
These small capacity containers are designed for transferring biological samples stored via manual work. They are light, portable and economical, with lower static evaporation loss.
These small capacity containers are designed for transferring biological samples stored via manual work. They are light, portable and economical, with lower static evaporation loss.
1. Made of high strength aluminum alloy, the liquid nitrogen tank is light.
2. High vacuum multilayer insulation design.
3. Flexible handle, easy to carry.

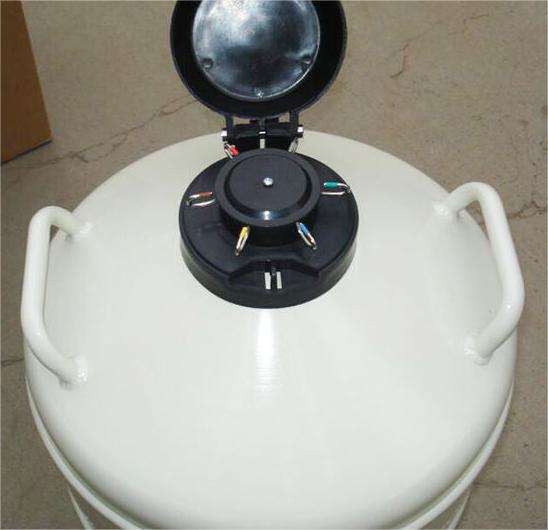

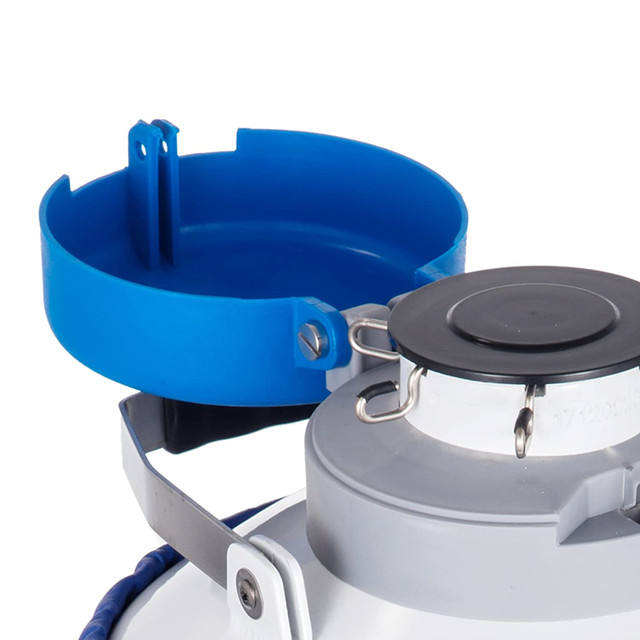

4. Lock cover is optional to protect the sample stored in liquid nitrogen tank.
5. It is equipped with a protective cover to facilitate the carrying of liquid nitrogen tank and to prevent the tank from bumping in the process of use.
Static Storage Series
Static storge series dewar container is an economical small liquid nitrogen tank for Laboratory use. It is specially designed for biological samples that need long time static storage. It has two types of products: large capacity and super-long storage period, this series is made of high strength and light weight aluminum alloy with multi-layer and super-strong insulation layer. It realizes the safty, lightness and efficiency ect.
Advantages:
1. Easy to long-term preservation of biological specimens, easy to carry.
2. High vacuum multi-layer insulation design.
3. The inner and outer shell is formed by spinning technology, the vacuum leakage rate is guaranteed.
4. Plasma spraying powder, environmental protection and low temperature impact resistance.
1. Easy to long-term preservation of biological specimens, easy to carry.
2. High vacuum multi-layer insulation design.
3. The inner and outer shell is formed by spinning technology, the vacuum leakage rate is guaranteed.
4. Plasma spraying powder, environmental protection and low temperature impact resistance.
The Liquid Nitrogen Tanks can be used in the following industries:
1. Liquid nitrogen molecular delicacies: production of liquid nitrogen ice cream, drinks, etc, preservation of cold plate food
materials, etc. (commonly used 10L / 20L / 30L liquid nitrogen tank).
2. Medical and health system: it is used in the biomedical field for the active preservation of frozen semen, stem cells, embryos, vaccines, etc.
3. Specimen preservation: preservation of biological specimens in agriculture, forestry and other industries.
4. Cryogenic treatment: cryogenic treatment and mechanical assembly of metal materials and precision parts.
5. Beauty industry: removing spots and moles (commonly used 10L / 3L / 6L liquid nitrogen tank).
6. Performance industry: for the production of stage smoke effect (commonly used 10L liquid nitrogen tank).
1. Liquid nitrogen molecular delicacies: production of liquid nitrogen ice cream, drinks, etc, preservation of cold plate food
materials, etc. (commonly used 10L / 20L / 30L liquid nitrogen tank).
2. Medical and health system: it is used in the biomedical field for the active preservation of frozen semen, stem cells, embryos, vaccines, etc.
3. Specimen preservation: preservation of biological specimens in agriculture, forestry and other industries.
4. Cryogenic treatment: cryogenic treatment and mechanical assembly of metal materials and precision parts.
5. Beauty industry: removing spots and moles (commonly used 10L / 3L / 6L liquid nitrogen tank).
6. Performance industry: for the production of stage smoke effect (commonly used 10L liquid nitrogen tank).
Specification
Model NO | YDS-10-80 | YSD-13 | YSD-15 | YSD-20 | YSD-25 | YSD-30 | YSD-35 | YSD-50B |
LN2 Capacity (L) | 10 | 13 | 15 | 20 | 25 | 31.5 | 35.5 | 50 |
Neck opennning (mm) | 80 | 50 | 50 | 50 | 50 | 50 | 50 | 125 |
Outer Diameter (mm) | 300 | 310 | 394 | 394 | 394 | 462 | 462 | 462 |
Over Height | 557 | 623 | 591 | 672 | 700 | 705 | 749 | 818 |
Static Evaporation Rate (L/day ) | 0.21 | 0.12 | 0.11 | 0.12 | 0.14 | 0.12 | 0.12 | 0.45 |
Static Holding Time (day) | 48 | 109 | 134 | 168 | 180 | 254 | 286 | 110 |
Empty Weight (kg ) | 6.2 | 6.3 | 8.5 | 9.5 | 10.7 | 12.9 | 14.2 | 17.3 |
Recommend Products
Manufacturing Technique
Our Advantages
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1.Are you a factory? Yes, we are a factory in the field of gas equipment .
The manufacturing workshop with 15000m2 and storage place Skilled manufacturing team for workshop and site Fabrication Specialized workshops with advanced facilities.
2.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
3.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
The manufacturing workshop with 15000m2 and storage place Skilled manufacturing team for workshop and site Fabrication Specialized workshops with advanced facilities.
2.Can you customize products for me ?
Yes . Customization is one of our strengths . Our core competitiveness is experienced engineers and technicians .
Our factory supports product appearance and parameter customization, and accepts OEM/ODM to help customers develop markets and enhance competitiveness .
3.How to ensure product quality ？
The factory has professional quality inspectors and management system . Provide with online video factory inspection services at any time, as well as support third-party inspection .
4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
